480-10-2-1000-001000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 480-10-2-1000-001000

480-10-2-1000-001000: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size669KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

480-10-2-1000-001000 Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

480-10-2-1000-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PANEL MOUNTABLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	GOLD (10) OVER NICKEL (150)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	480
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10
Base Number Matches	1

Preview

Download Datasheet

View All

INTERCONNECTS

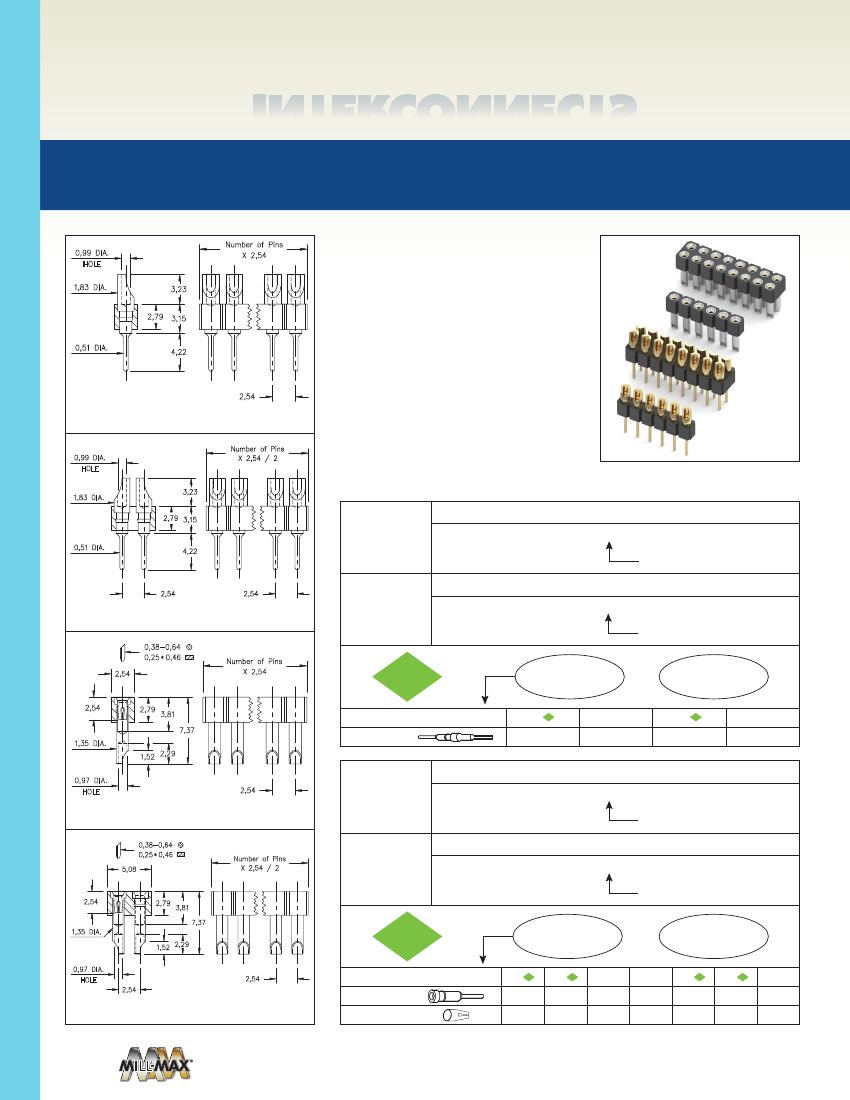

SERIES 329, 380, 429, 480 • 2,54 GRID SOLDER CUP

HEADERS AND SOCKETS • SINGLE AND DOUBLE ROW STRIPS

Number of Pins

X 2,54

0,99 DIA.

HOLE

1,83 DIA.

3,23

•

Series 380 & 480 use MM #8000 pins. See page

216 for details

•

Series 329 & 429 use MM #2954 receptacles

and accept pin diameters from 0,38 - 0,64.

See page 171 for details

2,79

3,15

0,51 DIA.

4,22

•

Series 329 & 429 receptacles use Hi-Rel,

2,54

4-finger BeCu #30 contact rated at 3 amps.

See page 253 for details

FIG. 1

0,99 DIA.

HOLE

3,23

Number of Pins

X 2,54 / 2

•

Soldercups are pre-aligned

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

1,83 DIA.

ORDERING INFORMATION

Series 380...001

Single Row Solder Cup / Solder Tail

380-XX-1_ _-00-001000

Specify number of pins

2,54

2,79 3,15

0,51 DIA.

4,22

FIG. 1

Series 480...001

01-64

2,54

Double Row Solder Cup / Solder Tail

480-10-2_ _-00-001000

02-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 2

0,38-0,64

0,25

0,46

FIG. 2

RoHS - 2

Specify number of pins

Number of Pins

X 2,54

2,54

2011/65/EU

XX=Plating Code

See Below

0,25μm Au

2,54

2,79

3,81

7,37

SPECIFY PLATING CODE XX=

Pin Plating

5,08μm Sn/Pb

5,08μm Sn

1,35 DIA.

1,52 2,29

0,97 DIA.

HOLE

Series 329...540

2,54

Single Row Solder Cup Sockets

329-XX-1_ _-41-540000

01-64

FIG. 3

0,38-0,64

0,25 * 0,46

FIG. 3

Series 429...540

Specify number of pins

Number of Pins

X 2,54 / 2

Double Row Solder Cup Sockets

429-XX-2_ _-41-540000

02-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

PAGE 48 | INTERCONNECTS

5,08

FIG. 4

RoHS - 2

2,54

2,79

Specify number of pins

3,81

7,37

1,35 DIA.

1,52 2,29

0,97 DIA.

HOLE

2011/65/EU

XX=Plating Code

See Below

2,54

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

0,25μm Au 0,25μm Au

0,25μm Au 0,76μm Au

5,08μm Sn 5,08μm Sn

0,25μm Au 0,76μm Au

FIG. 4

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
