BC846ATLEADFREE: DescriptionSmall Signal Bipolar Transistor, 0.1A I(C), 65V V(BR)CEO, 1-Element, NPN, Silicon, PLASTIC, ULTRAMINI-3; CategoryDiscrete semiconductor The transistor; File Size353KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

BC846ATLEADFREE Overview

Small Signal Bipolar Transistor, 0.1A I(C), 65V V(BR)CEO, 1-Element, NPN, Silicon, PLASTIC, ULTRAMINI-3

BC846ATLEADFREE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Central Semiconductor
package instruction	SMALL OUTLINE, R-PDSO-F3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	65 V
Configuration	SINGLE
Minimum DC current gain (hFE)	110
JESD-30 code	R-PDSO-F3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal surface	MATTE TIN (315)
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	10
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

BC846T SERIES

BC847T SERIES

SURFACE MOUNT

NPN SILICON TRANSISTOR

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR BC846T and

BC847T Series types are NPN Silicon Transistors

manufactured by the epitaxial planar process, epoxy

molded in a surface mount package, designed for

general purpose switching and amplifier applications.

MARKING CODE: SEE MARKING CODE TABLE

ON FOLLOWING PAGE

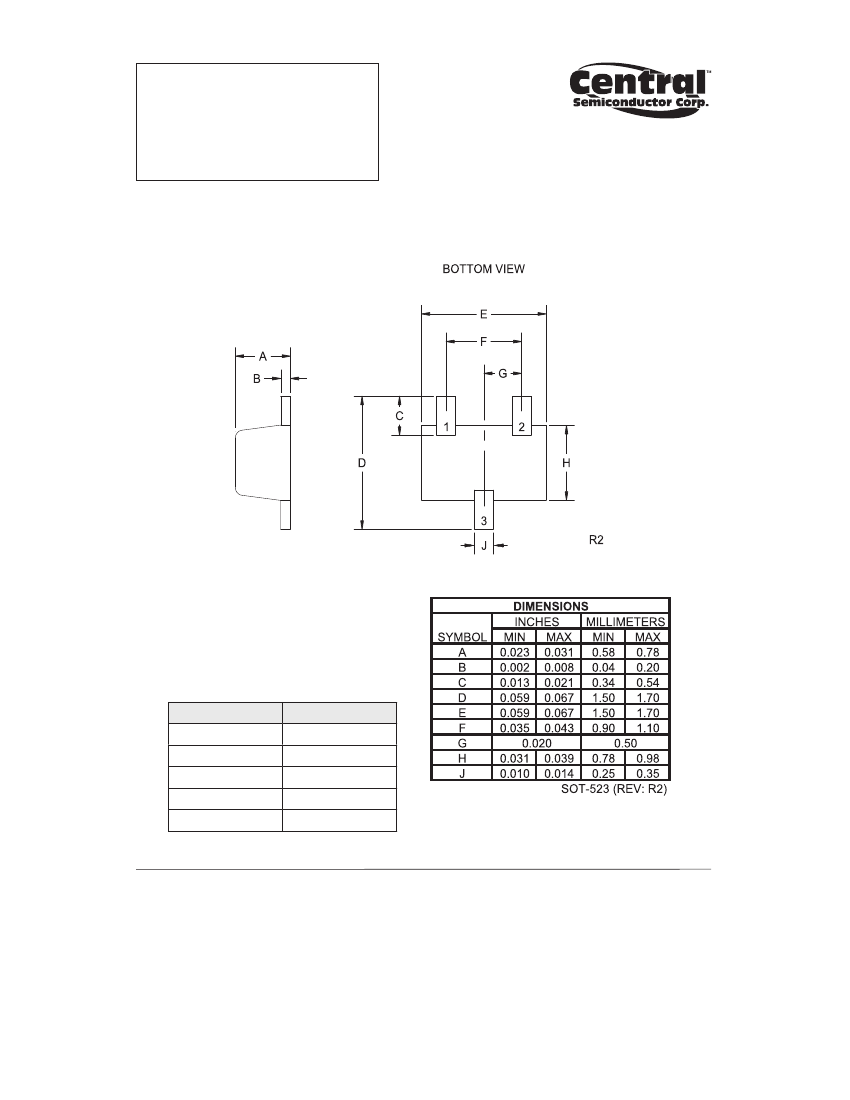

SOT-523 CASE

MAXIMUM RATINGS:

(TA=25°C)

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Continuous Collector Current

Peak Collector Current

Peak Base Current

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

ELECTRICAL

SYMBOL

ICBO

IEBO

BVCBO

BVCEO

BVEBO

VCE(SAT)

VBE(ON)

fT

Cc

Ce

NF

SYMBOL

VCBO

VCEO

VEBO

IC

ICM

IBM

PD

TJ, Tstg

Θ

JA

BC847T

50

45

BC846T

80

65

5.0

100

200

100

250

-65 to +150

500

UNITS

V

mA

mW

°C

°C/W

CHARACTERISTICS:

(TA=25°C unless

TEST CONDITIONS

VCB=30V

VCB=30V, TA=150°C

VEB=5.0V

IC=10μA (BC847T)

IC=10μA (BC846T)

IC=10mA (BC847T)

IC=10mA (BC846T)

IE=10μA

IC=10mA, IB=0.5mA

IC=100mA, IB=5.0mA

IC=2.0mA, VCE=5.0V

IC=10mA, VCE=5.0V

VCE=5.0V, IC=10mA, f=100MHz

VCB=10V, IE=0, f=1.0MHz

VEB=0.5V, IC=0, f=1.0MHz

VCE=5.0V, IC=200μA,

RS=2.0KΩ f=1.0KHz, BW=200Hz

otherwise noted)

MIN

TYP

MAX

15

5.0

100

50

80

45

65

5.0

0.20

0.40

0.70

0.77

1.5

11

10

BC846BT

BC847BT

MIN

MAX

200

450

0.58

100

UNITS

nA

μA

nA

V

MHz

pF

dB

BC847CT

MIN

MAX

420

800

hFE

VCE=5.0V, IC=2.0mA

BC846AT

BC847AT

MIN

MAX

110

220

R1 (20-November 2009)
