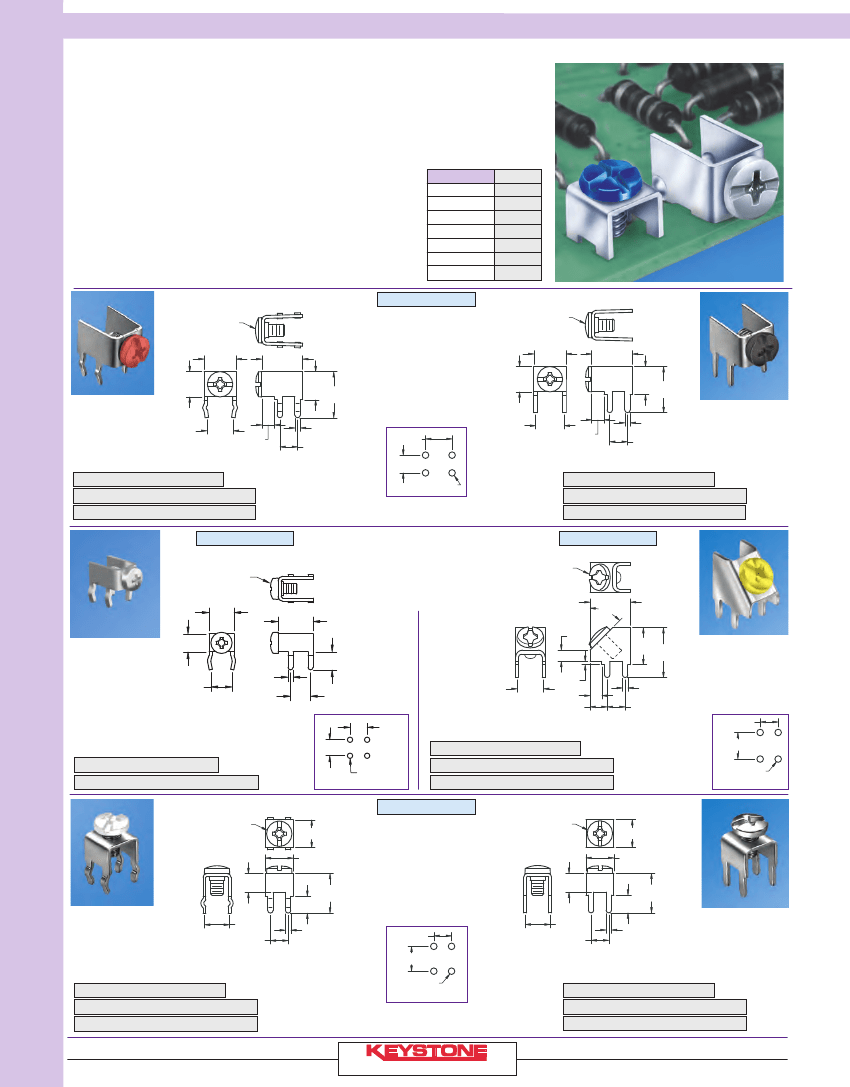

PC SCREW TERMINALS
These easy-to-mount, multipurpose screw type terminals are a practical,
low-cost alternative to PC screw type edge connectors, barrier blocks, terminal
boards and terminal strips. Steadfast and easy to install, will accommodate
solid or stranded wire, crimp type terminals or lugs. Multi-placement of these
low-profile terminals make them ideally suited for high density packaging.
Supplied unassembled or with screw installed and captivated.
PRINCIPAL FEATURES
•
Low profile
•
Stable, no-rock design with exclusive anti-rotational feature
•
Easily mounts with four legs into pre-drilled or punched holes
•
Accepts 14-22 AWG solid or stranded wire, crimp type terminals or lugs
•
Ideally suited for high-density packaging
•
Available in horizontal or vertical mounting
•
Space-saving and time saving
•
Easy accessibility for PC board testing
•
Binding screw is positioned above board level to avoid wicking during
wave soldering
•
Terminals are made of Brass with Tin Plate
•
Supplied with a combination drive 6-32 binding head screw
CAT. NO. COLOR SUFFIX
Ex:
XXXX
-X
COLOR SELECTION:
Select desired screw terminal
and add color suffix to the
screw terminal Cat. No.
HEAD COLOR
RED
BLACK
WHITE
BLUE
GREEN
YELLOW
NICKEL
SUFFIX
-2
-3
-4
-5
-6
-7
none
7700
7693-5
HORIZONTAL TYPE
6-32 x .250 [6.3] L.
SCREW
SPECIFICATIONS
.452 [11.5]
6-32 x .250 [6.3] L.
SCREW
.327
[8.3]
.280
[7.1]
.327
[8.3]
SCREW TERMINALS
7692-2
.280
[7.1]
SNAP-IN
PC MOUNT
•
Color coded screws
available (add color
screw suffix to Cat. No.)
.295
[7.5]
.138
[3.5]
.312
[7.9] .512
[13.0]
Rated:
15 Amps
Terminal:
.032 (.81) Brass, Matte Tin Plate
Binding Head Screw:
Brass, Nickel Plate
.452 [11.5]
.312
[7.9] .512
[13.0]
7700-3
PC MOUNT
.060 [1.52]
(4) PLS
.197 [5.0]
.197 [5.0]
Mounting Detail
.295 [7.5]
.295
[7.5]
.138
[3.5]
.060 [1.52]
(4) PLS
.197 [5.0]
•
Color coded screws
available (add color
screw suffix to Cat. No.)
CAT. NO. 7779
(No Screw Supplied)
CAT. NO. 7690
(Screw Supplied Unassembled)
CAT. NO. 7692
(Screw Installed & Captivated)
.073 [1.85] DIA.
(4) PLS
CAT. NO. 7781
(No Screw Supplied)
CAT. NO. 8190
(Screw Supplied Unassembled)
CAT. NO. 7700
(Screw Installed & Captivated)
Color coded screws available
(add color screw suffix to Cat. No.)
MINI
4-40 X .250 [6.3] L.
SCREW
.250
[6.4]
.180 [4.6]
.180 [4.6]
.050
[1.3]
(4) PLS
.200
[5.1]
SPECIFICATIONS
Rated:
15 Amps
Terminal:
.032 (.81) Brass, Matte Tin Plate
Binding Head Screw:
Brass, Nickel Plate
.350 [8.9]
6-32 x .250 [6.3] L.
SCREW
45°
7773
.450 [11.5]
45°
REF.
.125
[3.2]
REF.
7702-7
.412
[10.5] .555
[14.1]
SNAP-IN
PC MOUNT
PC MOUNT
•
Color coded screws
available (add color
screw suffix to Cat. No.)
Mounting Detail
.200 [5.1]
.037 [1.0]
.295
[7.5]
.130 [3.3]
.190 [4.9]
.214 [5.4]
.060 [1.52]
(4) PLS
.200 [5.1]
Mounting Detail
.214
[5.4]
.200 [5.1]
CAT. NO. 7783
(No Screw Supplied)
.062 [1.57] DIA.
(4) PLS
.295 [7.5]
CAT. NO. 7774
(No Screw Supplied)
CAT. NO. 7773
(Screw Supplied Unassembled)
CAT. NO. 8189
(Screw Supplied Unassembled)
CAT. NO. 7702
(Screw Installed & Captivated)
.073 [1.85] DIA.
(4) PLS
VERTICAL TYPE
6-32 x .250 [6.3] L.
SCREW
.310 [7.9]
6-32 x .250 [6.3] L.
SCREW
.310 [7.9]
SPECIFICATIONS
Rated:
15 Amps
Terminal:
.032 (.81) Brass, Matte Tin Plate
Binding Head Screw:
Brass, Nickel Plate
Mounting Detail
.310 [7.9]
.310 [7.9]
.210 [5.4]
.210 [5.4]
.440
[11.2]
.197 [5.0]
.276 [7.0]
.197 [5.0]
7693-4
.440
[11.2]
.187 [4.8]
.276 [7.0]
.197 [5.0]
7701
SNAP-IN
PC MOUNT
•
Color coded screws
available (add color
screw suffix to Cat. No.)
PC MOUNT
.060 [1.52]
(4) PLS
.060 [1.52]
(4) PLS
.197 [5.0]
.276 [7.0]
•
Color coded screws
available (add color
screw suffix to Cat. No.)
CAT. NO. 7780
(No Screw Supplied)
CAT. NO. 7691
(Screw Supplied Unassembled)
CAT. NO. 7693
(Screw Installed & Captivated)
.073 [1.85] DIA.
(4) PLS
Color coded screws available
(add color screw suffix to Cat. No.)
®
CAT. NO. 7782
(No Screw Supplied)
CAT. NO. 8191
(Screw Supplied Unassembled)
CAT. NO. 7701
(Screw Installed & Captivated)
