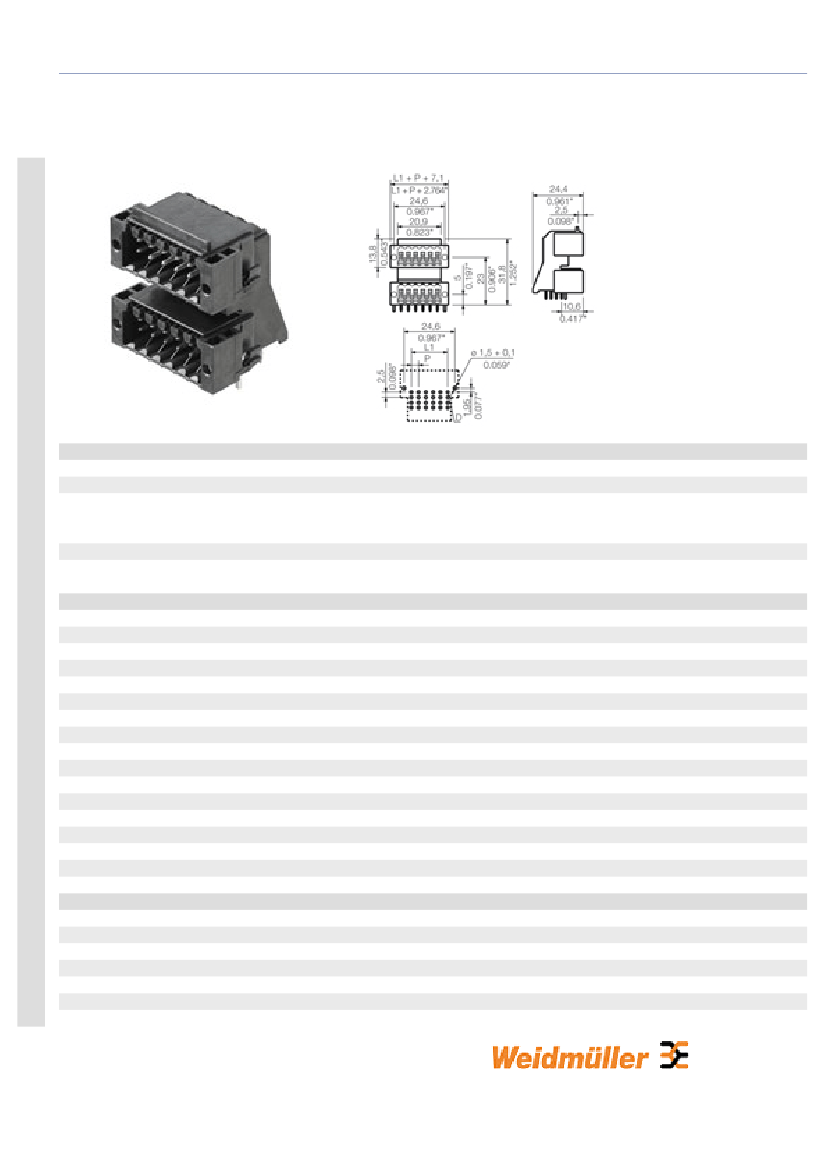

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.50 mm (0.138 inch) 2-row | Plug
connectors, THR solder connection | S2LD-THR 3.5/90 | S2LD-THR 3.5/90LF SN
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Fitted to PCB
Outgoing elbow
Pitch
Pitch in inch
No. of poles
Solder pin length
Can be coded
No. of rows
No. of solder pins per pole
Dia. of fitting hole
Fitting hole tolerance
L1 in mm
L1 in inch
Insulation resistance
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
1028450000
S2LD-THR 3.5/36/90LF 3.2 SN BK BX
PCB plug-in connector, Male connectors, Reflow
solder connection, Pitch: 3.50 mm, No. of poles:
36, 90°, Box
4032248756940
20 pc(s).
Reflow solder connection
90°
3.5 mm
0.138 inch
36
3.2 mm
Yes
2
2
1.3 mm
+ 0.1 mm
28 mm
1.102 inch
1 MΩ
IP20 plugged/ IP10 unplugged
Safe from finger touch, plugged
LCP GF
black
IIIa
V-0
>= 175
Copper alloy
tinned
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.50 mm (0.138 inch) 2-row | Plug
connectors, THR solder connection | S2LD-THR 3.5/90 | S2LD-THR 3.5/90LF SN
Material data
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
Max. relative humidity during storage
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
-25 °C
100
-25 °C
55 °C
80 %
8A
5A
6A
5A
100 V
1.5 kV
160 V
2.5 kV
200 V
2.5 kV
Similar products
Order No.
1028370000
1028390000
1028410000
1028420000
1045390000
1028430000
1028440000
Part designation
S2LD-THR 3.5/08/90LF 3.2 SN
BK BX
S2LD-THR 3.5/12/90LF 3.2 SN
BK BX
S2LD-THR 3.5/16/90LF 3.2 SN
BK BX
S2LD-THR 3.5/20/90LF 3.2 SN
BK BX
S2LD-THR 3.5/24/90LF 3.2 SN
BK BX
S2LD-THR 3.5/28/90LF 3.2 SN
BK BX
S2LD-THR 3.5/32/90LF 3.2 SN
BK BX
Version
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 8, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 12, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 16, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 20, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 24, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 28, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 32, 90°, Box
-2-
