M81714/60-22-06-LC: Descriptionsocket junction modules 21p socket junction module size 22; CategoryThe connector; File Size166KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

M81714/60-22-06-LC Overview

socket junction modules 21p socket junction module size 22

M81714/60-22-06-LC Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	Socket Junction Modules
RoHS	N
Produc	Socket Junction Modules
Size	22
Number of Positions	20
Mounting Style	DIN Rail
Body Material	Polyetherimide
Class	D
Contact Gende	Without Socket Contacts
Contact Material	Copper Alloy
Contact Plating	Gold
Current Rating	5 A
Insulation Resistance	5000 MOhms
MIL Type	MIL-T-81714 II
Operating Temperature Range	- 65 C to + 200 C

Preview

Download Datasheet

View All

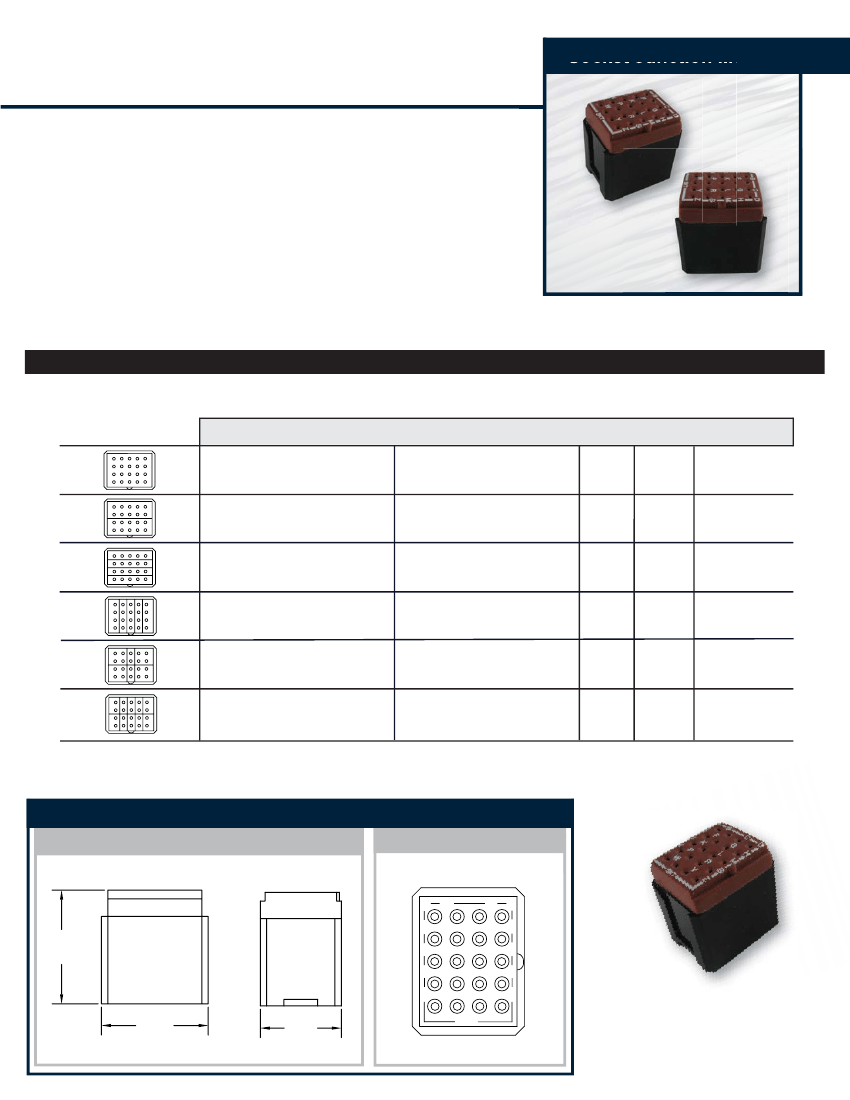

M81714/60-22

Series II Size 22

Operating Range

Temperature:

-65ºC to 200ºC

Insulation Resistance:

5000 Megaohms @ 25ºC

Dielectric Withstanding Voltage:

1500 VRMS at Sea Level

200 VRMS at 110,000 ft.

Current Rating

5 Amps

Vibration & Shock:

MIL-T-81714 Paragraph

3.5.5 and 3.5.8

Socket Junction Modules

Materials

Module Body:

Polytherimide per ASTM-D5205

Grommet:

Silicone Blend Elastomer per A-A-59588

Contact Retainers:

Stainless Steel

Internal Pin and Socket Contacts:

Copper Alloy, Hard Gold Plated in

Accordance with MIL-G-4520

4

Amphenol Pcd Socket Junction Modules

Bussing

Configurations

Part Numbers

Military P/N

M81714/60-22-01

APCD P/N

SJM022100

QTY*

20

Contact

Size

1

22/22

P/N M39029

/22-191

M81714/60-22-02

SJM022200

20

22/22

/22-191

M81714/60-22-04

SJM022400

20

22/22

/22-191

M81714/60-22-05

SJM022500

20

22/22

/22-191

M81714/60-22-06

SJM022600

20

22/22

/22-191

M81714/60-22-07

SJM022700

20

22/22

/22-191

*

Quantity figure denotes number of contacts accommodated by module. Modules are supplied with one additional spare contacts and two sealing plugs.

1

Mating End / Wire Barrel.

Socket Junction Module Dimensions

Front & Side View

Top View

A

E

.760

MAX

B

F

K

P

W

SKT

C

G

L

R

Y

D

H

M

S

Z

J

N

T

.672

.510

M81714/60-22-01 SHOWN

Amphenol Pcd

49

www.amphenolpcd.com

Milaero@amphenolpcd.com

1-978-624-3400

72 Cherry Hill Road Beverly, MA 01915
