SJS316601: DescriptionIn-line junction modules terminal junction module; CategoryThe connector; File Size97KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

SJS316601 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SJS316601	-	-	View	Buy Now

SJS316601 Overview

In-line junction modules terminal junction module

SJS316601 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	In-Line Junction Modules
RoHS	Yes
Produc	Dual Contact In-Line Splices
Size	16
Contact Gende	Without Socket Contacts
Contact Material	Copper Alloy
Contact Plating	Gold
Current Rating	13 A
Insulation Material	Polyetherimide
Insulation Resistance	5000 MOhms
MIL Type	MIL-T-81714 II
Mounting Style	In-Line
Operating Temperature Range	- 65 C to + 200 C

Preview

Download Datasheet

View All

Socket Junction Splices

M81714/65 Sealed In-Line Splices

SJS Series II Single and Double

Operating Range

Temperature:

-65ºC to 200ºC

Insulation Resistance:

5000 Megaohms Min.

Dielectric Withstanding Voltage:

1500 VRMS at Sea Level

200 VRMS at 100,000 ft.

Vibration & Shock:

Per MIL-T-81714

Paragraph 3.5.5 & 3.5.8

Current Rating:

13 Amps (Size 16)

7.5 Amps (Size 20)

5 Amps (Size 22)

Materials

Insulator Body:

Polyerthermide per ASTM-D-5205

Grommet:

Silicone Rubber per A-A-59588

Internal Contact:

Copper Alloy, Gold Finish

Accordance with MIL-G-45204

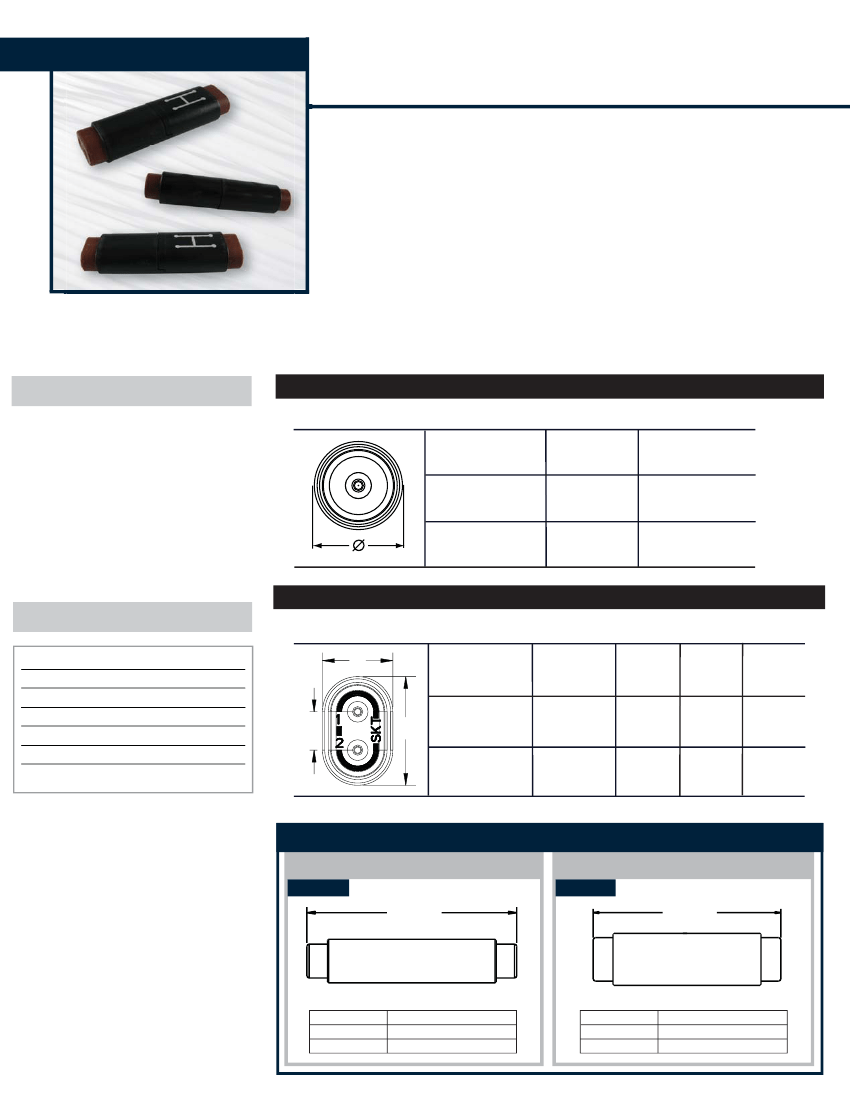

Product Description

Series II In-Line Splices are available in

single and double configurations in sizes

16, 20, and 22 AWG. These M81714/65

Splices use the same advanced

polyetherimide body, one-piece bus

assembly and construction as Amphenol

Pcd’s other M81714 connectors.

Single SJS Splices

Military P/N

M81714/65-16-1

APCD P/N

SJS316700

Ø Diameter

.324 Max

M81714/65-20-1

SJS320700

.290 Max

M81714/65-22-1

SJS322700

.230 Max

Double SJS Splices

Sealed Splice Contacts

In-Line Splice

M81714/65-16-1

M81714/65-20-1

M81714/65-22-1

M81714/65-16-2

M81714/65-20-2

M81714/65-22-2

Military P/N

APCD P/N

Contact

M39029/22-193

M39029/22-192

M39029/22-191

M39029/22-193

M39029/22-192

M39029/22-191

M81714/65-16-2

SJS316701

.548 Max .304 Max .180 Max

M81714/65-20-2

SJS320701

.481 Max

.271 Max .150 Max

M81714/65-22-2

SJS322701

.384 Max .204 Max .120 Max

Splice Dimensions

SJS Single Splice

Side View

SJS Double Splice

Side View

Dim. L

Wire Size

Size 16

Size 20

Size 22

Dimension L

1.452 Max

1.434 Max

1.310 Max

Wire Size

Size 16

Size 20

Size 22

Dimension L

1.428 Max

1.322 Max

Amphenol Pcd

www.amphenolpcd.com

Milaero@amphenolpcd.com

1-978-624-3400

72 Cherry Hill Drive Beverly, MA 01915
