5-146280-1 datasheet, PDF - EEWORLD Datasheet

5-146280-1: Description01 MODII HDR SRST B/A LF; CategoryThe connector The connector; File Size255KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

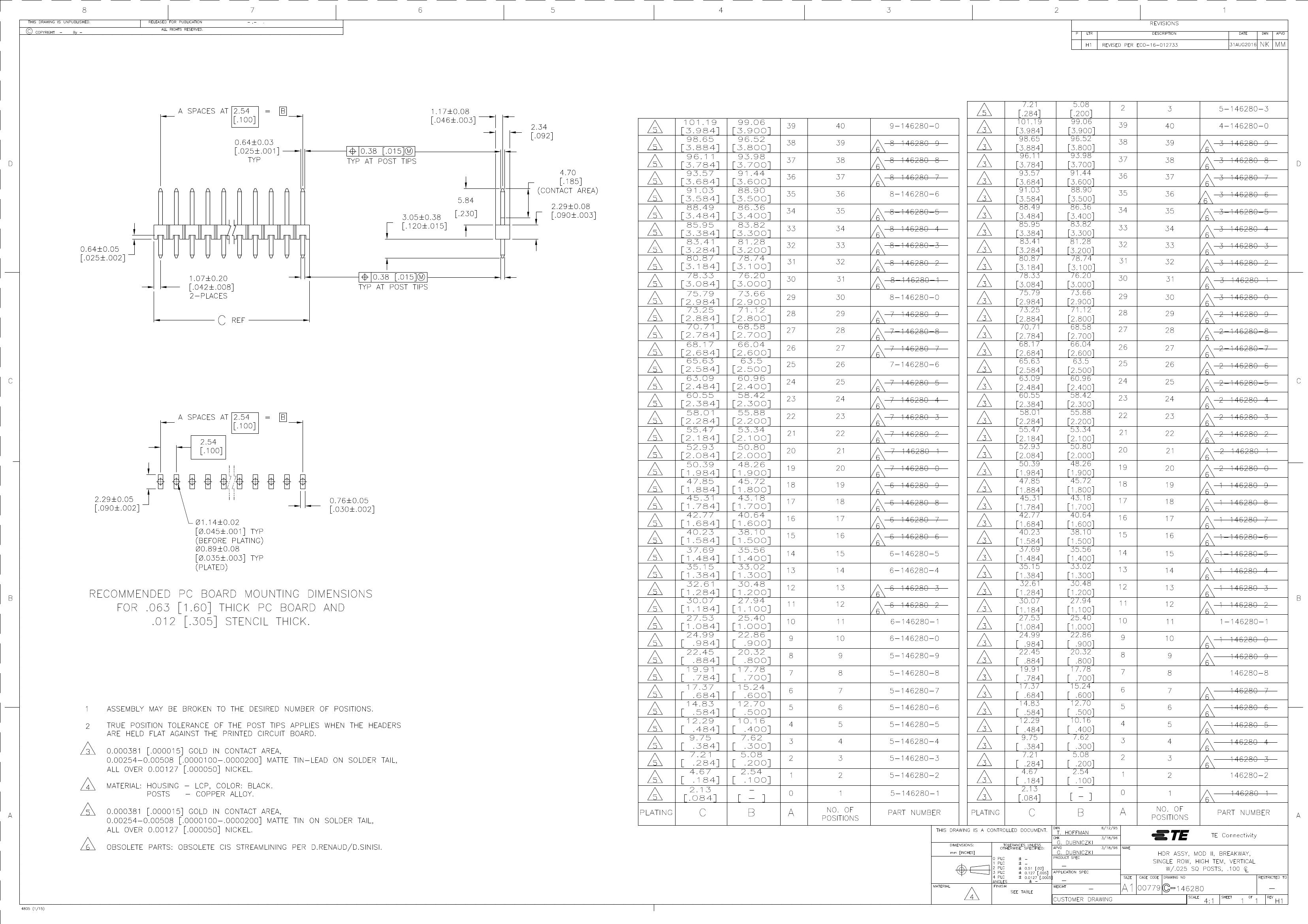

Download Datasheet Parametric View All

5-146280-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-146280-1	-	-	View	Buy Now

01 MODII HDR SRST B/A LF

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Factory Lead Time	19 weeks
Samacsys Confidence	3
Samacsys Status	Released
Samacsys PartID	905879
Samacsys Pin Count	1
Samacsys Part Category	Connector
Samacsys Package Category	Header, Vertical
Samacsys Footprint Name	5-146280-1
Samacsys Released Date	2019-07-01 09:19:55
Is Samacsys	N
body width	0.092 inch
subject depth	0.09 inch
body length	0.084 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1050VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	1
Base Number Matches	1
