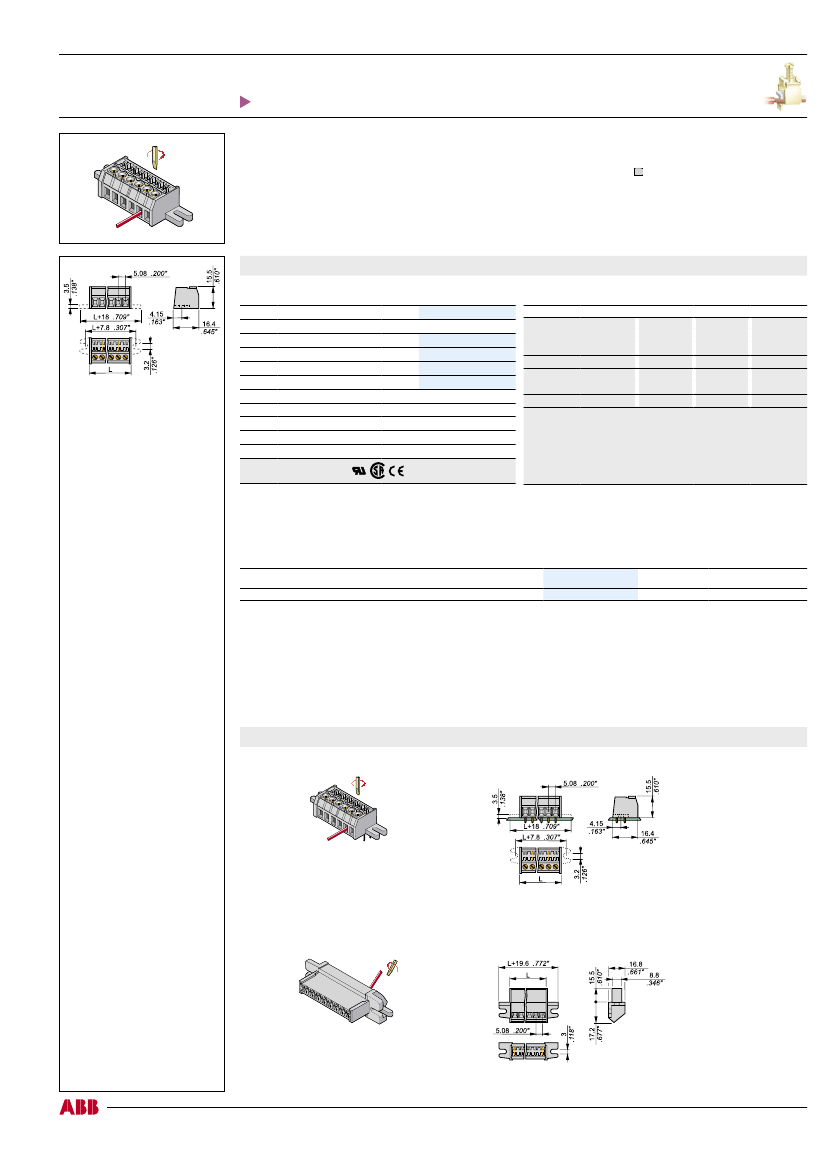

L 505 100
Edge connectors on P.C.B.
P.C.B. thickness = 1.6 mm
.063"
Body : UL94 V0 - PC
Grey
Expert Range - Screw clamp connection
Screw parallel to P.C.B. Panel mounting.
2.5 mm² - Spacing 5.08 mm
.200"
Ordering details
N. Poles
Weight kg
Packaging
L. mm
Order code
1SSA
505 106
R3100
1SSA
505 112
R3100
1SSA
505 120
R3100
1SSA
505 124
R3100
6
0.0103
50
32.76
12
0.0205
20
64.40
20
0.0342
20
105.00
24
0.0410
20
125.30
Other numbers of poles, consult us
Technical data
IEC
Wire size
Screw
UL
CSA
Solid wire
0.12 - 2.5 mm² 22 - 14 AWG 22 - 14 AWG
Stranded wire 0.12 - 2.5 mm² 22 - 14 AWG 22 - 14 AWG
Rated voltage
250 V
300 V
300 V
Rated current - PCB single face
5A
5A
5A
Rated current - PCB double face
10 A
10 A
10 A
Rated wire size / Gauge
2.5 mm²
14 AWG
14 AWG
Storage temperature range
-20 ~ +80 °C
Insulation resistance
≥ 10
9
Ω
Wire stripping length
6 mm /
.236"
Recommended screwdriver
3.5 mm /
.138"
Recommended torque
0.4 Nm /
3.5 lb.in
Protection
IP 20 /
NEMA 1
Accessories
Rep.
Description
1
Coding peg
Type
Order code
1SNA
599 006
R6000
Packaging
100
Weight kg
0.0001
Other versions, please consult us :
Screw parallel to P.C.B. - P.C.B. mounting
L 505 200
Screw and wire at 45°. Modular mounting (panel or through panel mounting).
L 505 400
87
P200066
