LCA2/0-38F-X

Description
terminals copper comp lug 2H 2/0awg 3/8" 90deg
CategoryThe connector    terminals
File Size81KB,1 Pages
ManufacturerPanduit
Websitehttp://www.panduit.com
Environmental Compliance
Download Datasheet Parametric View All

LCA2/0-38F-X Overview

terminals copper comp lug 2H 2/0awg 3/8" 90deg

LCA2/0-38F-X Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerPanduit
Reach Compliance Codecompli
ECCN codeEAR99
Factory Lead Time8 weeks
Is SamacsysN
terminal genderFEMALE
Terminal and terminal strip typesWIRE TERMINAL
Wire gauge0 AWG
Base Number Matches1
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
Material
Plating
Wire Size
Wire Type
High Conductivity
Seamless Copper Tube
Electro-Tin
2/0 AWG
Stranded Copper; Class B:
Compact, Compressed or
Concentric, Class C: Concentric
1-1/16 in.
3/8 in.
Yes, for applications up to 35kv.
Consult cable manufacturer for
voltage stress relief instructions
with applications greater than
2000 volts.
90 C
Yes
.13±.01
BLACK
90°±5°
.98±.04
BLACK DIE P45 (13)
.85±.04
Wire Strip Length
Stud Size
UL Listed Wire
Connector
.39±.04
2/0 STR CU
LCA2/0-38F
PANDUIT
Wire inspection
window
.41±.02 DIA
.84±.04
UL Temperature
Rating
C.S.A Certified
Wire Connector
Panduit Color Code
on Barrel
Panduit Die Index No. P45
on Barrel
Alternate Industry
Die Index No. ( )
on Barrel
(13)
1.63
REF
PANDUIT
.45±.01
CERTIFIED
LISTED
Wire Connector
.58±.01
1.66 REF
Color coded
barrel markings
Beveled wire
entry
CORP.
01
REV
TINLEY PARK, ILLINOIS
7/04
DATE
DRL DRL
BY
CHK
ADDED UL, CSA AND PART NO. TO STAMP
DESCRIPTION
11969
ECN
LCA2/0-38F-X

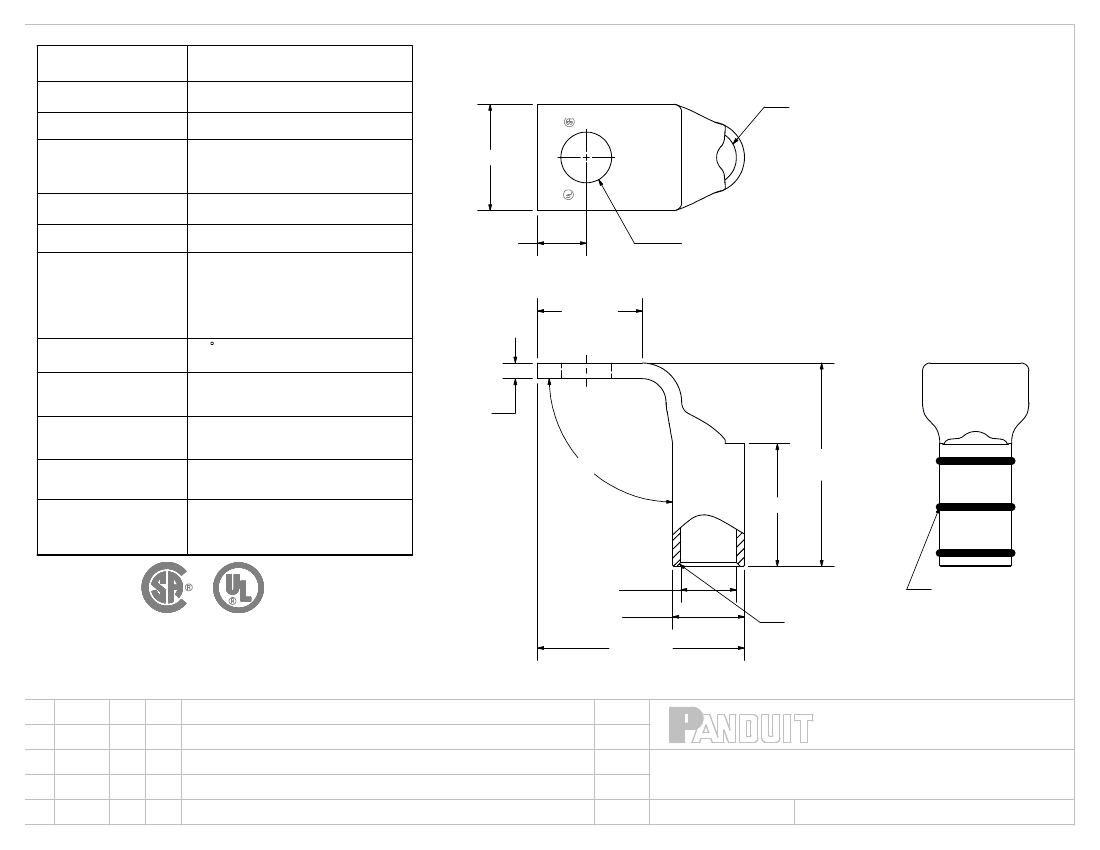

Copper Lug - One-Hole, Standard Barrel, 90° Angle Tongue
SCALE
N/A
DRAWING NO / CAD FILE
LCA2_0-38F-CUST
