120PSBLS-NWA datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 120PSBLS-NWA

Preview

120PSBLS-NWA: DescriptionSingle Color LED, Amber, Clear, T-1 3/4, 5mm,; CategoryLED optoelectronic/LED photoelectric; File Size87KB，1 Pages; ManufacturerDDP Engineered LED Solutions

Download Datasheet Parametric View All

120PSBLS-NWA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	120PSBLS-NWA	-	-	View	Buy Now

120PSBLS-NWA Overview

Single Color LED, Amber, Clear, T-1 3/4, 5mm,

120PSBLS-NWA Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
color	AMBER
Configuration	SINGLE WITH BUILT-IN RESISTOR
Lens type	CLEAR
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	1
Optoelectronic device types	SINGLE COLOR LED
method of packing	BULK
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Base Number Matches	1

Preview

Download Datasheet

View All

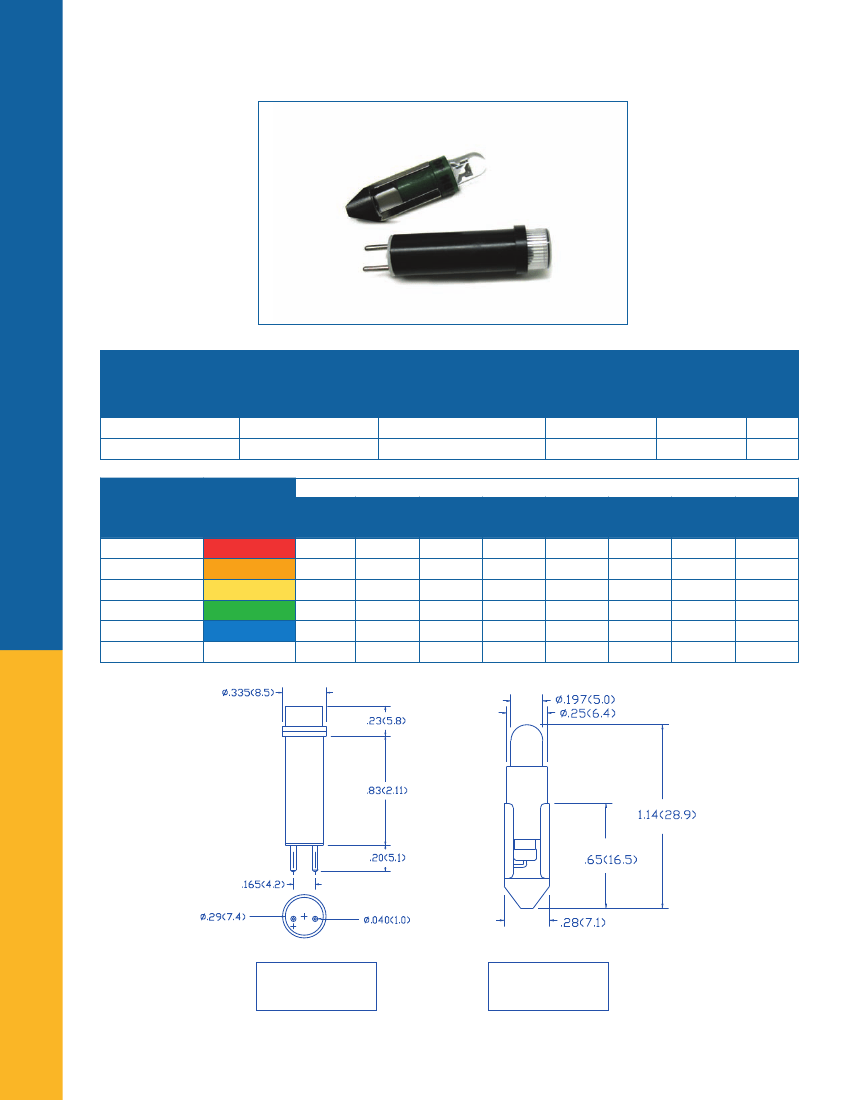

PowerLine LEDs

T-2 120 VOLT LAMPS

INCANDESCENT

LAMP #

120PC

120PSB

PowerLine®

PART #

STANDARD

120PCL-NWX

120PSBL-NWX

PowerLine® PART #

WITH SHUNT

RESISTOR

120PCLS-NWX

120PSBLS-NWX

APPLIED

VOLTAGE

120AC/DC

MAXIMUM

VOLTAGE

130

FIG #

1

2

LED

COLOR CODE

-NWR

-NWO

-NWA

-NWG

-NWB

-NWW

EMITTED

COLOR

Red

Orange

Amber

Green

Blue

White

Used to illuminate the following lenses

Red

*

Orange

Amber

Yellow

Green

Blue

White

*

Clear

*

www.powerlineleds.com

120PCL

Figure 1

120PSBL

Figure 2

8

All dimensions are in inches (mm)

Tolerances: .xx”(.x) ±.025:”(.63)/ .xxx”(.xx)±.010”(.25) Specifications are subject to change without notice.
