3017W2SCM99A30X datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 3017W2SCM99A30X

Preview

3017W2SCM99A30X: DescriptionD-sub mixed contact connectors 17w2 solder cup female; CategoryThe connector The connector; File Size204KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com; Environmental Compliance

Download Datasheet Parametric View All

3017W2SCM99A30X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3017W2SCM99A30X	-	-	View	Buy Now

3017W2SCM99A30X Overview

D-sub mixed contact connectors 17w2 solder cup female

3017W2SCM99A30X Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
body width	0.509 inch
subject depth	0.211 inch
body length	2.103 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact style	HYBRID
Durability	500 Cycles
Manufacturer's serial number	301
Mixed contacts	YES
Installation option 1	LOCKING
Installation type	PANEL
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.085 inch
Termination type	SOLDER LUG
Total number of contacts	17
Base Number Matches	1

Preview

Download Datasheet

View All

F

E

D

C

B

A

n

1,16

D

(5:1)

D

0,36

7,44

+ 0,24

-

53,09

+ 0,33

- 0,43

0,33

12,6

+ 0,43

-

0,17

6,13

+ 0,08

-

0,8

5,35

`

0,3

47,04

`

0,13

38,51

+ 0

- 0,26

8

+ 0,23

-

0,02

C

10°

2,55 REF.

4-40 UNC

B

see note 8

B

NOTES:

1. METALSHELLS: STEEL; min. 315µin TIN over 40-80µin NICKEL

2. INSULATORS: PBT GF UL 94 V-0, GREEN

3. SIGNAL CONTACTS: COPPER ALLOY

PLATING: 30µin HARD GOLD over min. 50µin NICKEL

SOLDER CUP ACCEPTS CABLE AWG 20

4. NO CONTACTS ON POS A1 and A2

5. THREADED INSERT: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL

6. COLLAR: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL

7. MAXIMUM TORQUE VALUE FOR THREAD: 6 in.LB

8. CONNECTOR IS PART MARKED: 3017W2SCM99A30X CONEC ABC

THIS DRAWING MAY NOT BE COPIED OR

REPRODUCED IN ANY WAY, AND MAY NOT

BE PASSED ON TO A THIRD PARTY WITHOUT

WRITTEN PERMISSION.

OWNERSHIP AND COPYRIGHT OF CONEC GmbH

APPROVAL # FREIGABE # DEBLOCAGE # AUTORIZACION

APPROVAL # FREIGABE # DEBLOCAGE # AUTORIZACION # APPROVAL

CUSTOMER APPROVAL DATE:

DO NOT ALTER CAD DRAWING BY HAND

tolerance

ISO 2768-m

date

drawn

appd.

norm

d-old

A

dim. in mm

name

scale:

material:

title:

2:1 (5:1)

APPROVAL # FREIGABE # DEBLOCAGE # AUTORIZACION

see notes

A

NAME:

TITLE:

06.12.01

Parei

Mickenbecker

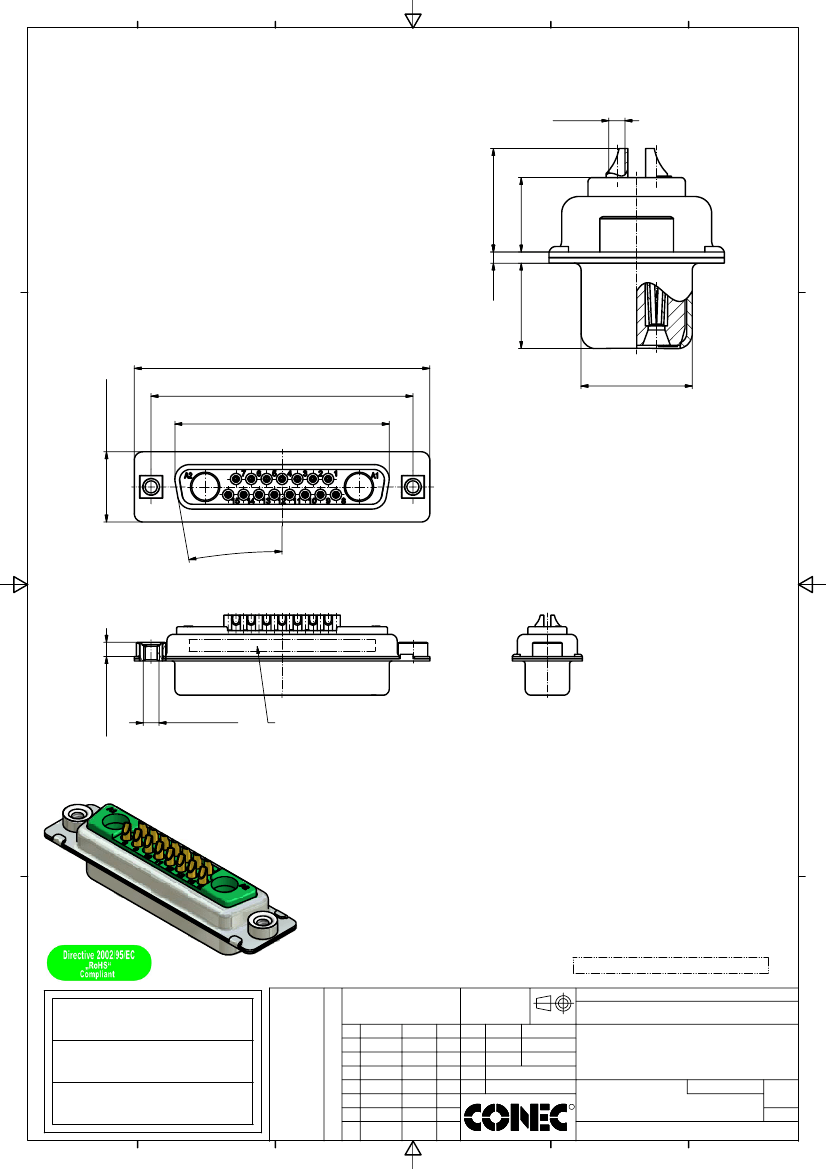

D-SUB COMBINATION FEMALE

17W2S SOLDER CUP

with threaded insert

dwg no:

R

COMPANY NAME:

Inventor 10

a

Origin

13K1A427A

part no:

B

A

DIN-

A3

sh:

1

APPROVAL # FREIGABE # DEBLOCAGE # AUTORIZACION # APPROVAL

rev. description

D

date

name

C

3017W2SCM99A30X

F

E
