M8S41TDJ107.000MHZ: DescriptionOscillator,; CategoryPassive components oscillator; File Size55KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

M8S41TDJ107.000MHZ Overview

Oscillator,

M8S41TDJ107.000MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	MtronPTI
Reach Compliance Code	compliant
Is Samacsys	N
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time	4 ns
Frequency Adjustment - Mechanical	NO
frequency stability	1000%
Installation features	SURFACE MOUNT
Nominal operating frequency	107 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Oscillator type	HCMOS/TTL
Output load	10 TTL, 15 pF
physical size	14.22mm x 9.78mm x 4.7mm
longest rise time	4 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %
Base Number Matches	1

Preview

Download Datasheet

View All

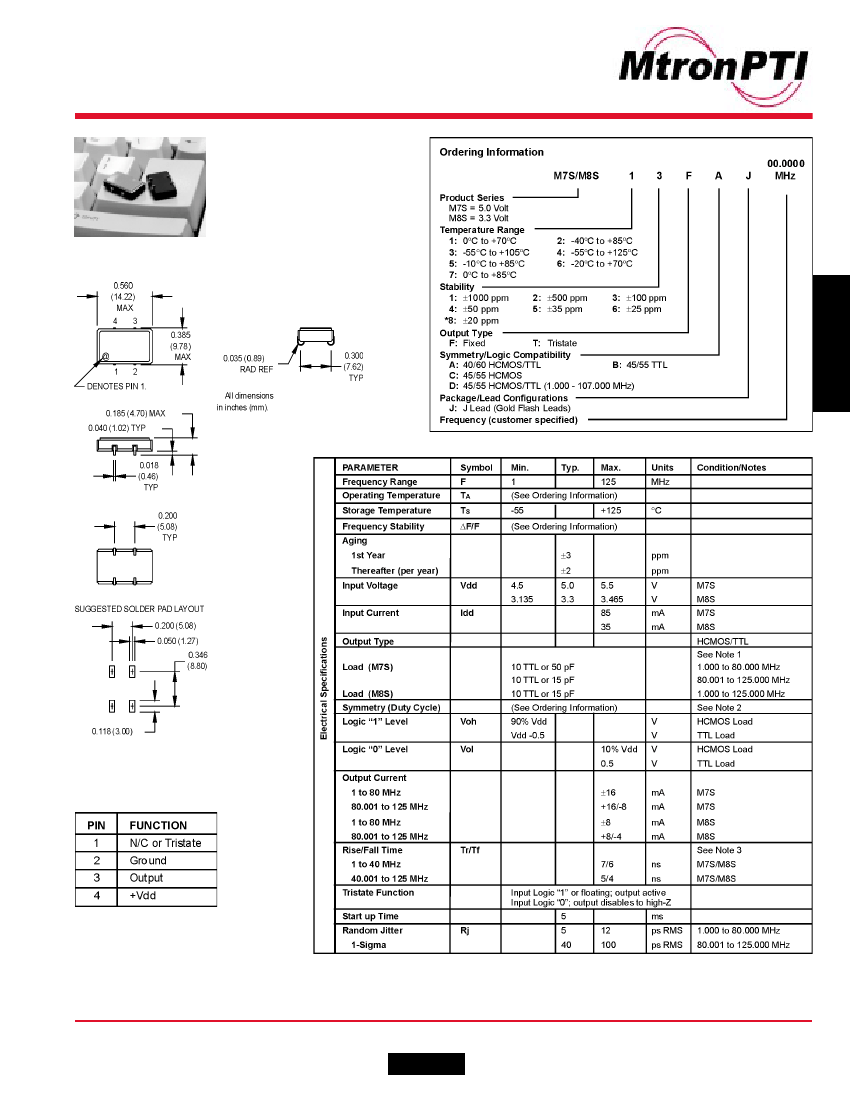

M7S & M8S Series

9x14 mm, 5.0 or 3.3 Volt, HCMOS/TTL, Clock Oscillators

X

O

* Contact factory for availability.

Pin Connections

1. TTL load - See load circuit diagram #1 on page 116. HCMOS load - See load circuit diagram #2 on page 116.

2. Symmetry is measured at 1.4 V with TTL load, and at 50% Vdd with HCMOS load.

3. Rise/fall times are measured between 0.5 V and 2.4 V with TTL load, and between 10% and 90% Vdd for HCMOS load.

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.
