PSRL0601D SERIES
90~132 / 180~264VAC Auto-Selectable Input
125~300 Watts, Dual Outputs
Power Factor Corrected to EN61000-3-2 Class A
AC/DC Switching Power Supplies
U Type
C Type
E Type
F Type
FEATURES
•
Dual Outputs
•
RoHS Compliant
•
High Quality & Reliable Component Usage
•
Variable Fan Speed & Low Acoustical Noise
•
MTBF: 100,000 Hours (MIL-HDBK-217F)
•
Four Types of Mechanical Options
•
Power Factor Corrected to EN61000-3-2 Class A
•
Compact 300W with 1U Height Power Density: 8.3 Watts/cu in
•
90~132 / 180~264 VAC Auto-Selectable Input Range
•
Low Leakage Current: 500µA at 240VAC and 300µA at 120VAC
•
Short Circuit, Over Power, Over Voltage, and Over Temperature
Protection
•
UL60950-1, EN60950-1, IEC60950-1 Safety Approvals
DESCRIPTION

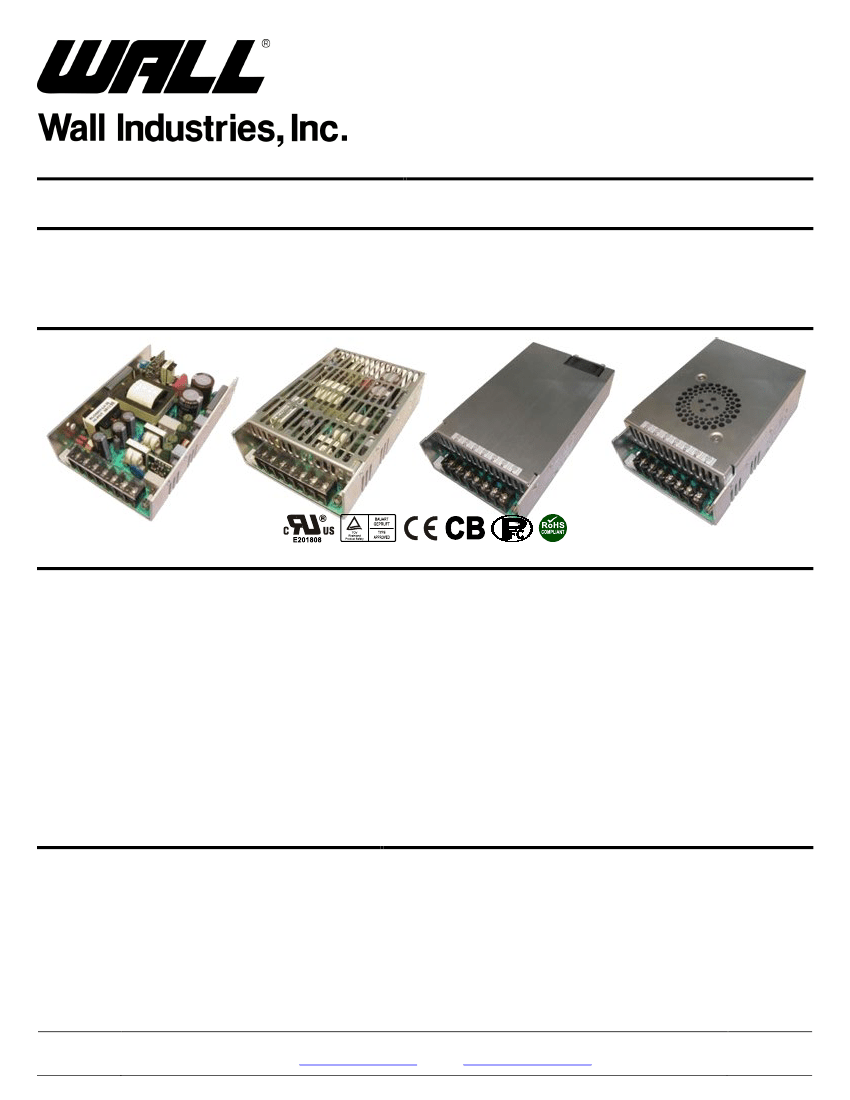

The PSRL0601D series of AC/DC switching power supplies offers up to 300 Watts of output power. This series
consists of dual output models with power factor correction (PFC) and a 90~132 / 180~264 VAC auto-selectable
input. These supplies also have short circuit, over voltage, over power, and over temperature protection. Models are
available in U-Chassis (Type U), U-chassis with top cover (Type C), enclosed with side built-in fan (Type E), and
enclosed with top built-in fan (Type F) designs. This series is RoHS compliant and has UL60950-1, EN60950-1,
and IEC60950-1 safety approvals. For single output models see the PSRL0601 series.
7/23/2019
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
Page 1 of 6
Rev. C
PSRL0601D Series
125~300 Watts
Dual Outputs, PFC
AC/DC Switching Power Supplies
SPECIFICATIONS:
PSRL0601D SERIES
All specifications are based on 25
o
C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
INPUT SPECIFICATIONS
Input Voltage
90~132 / 180~264 VAC auto-selectable
Input Frequency
47~63Hz
Input Current
8A at 100~120VAC; 4A at 200~240VAC
Inrush Current
35A max. at 115VAC and cold start; 70A max. at 230VAC and cold start
Power Factor Correction (PFC)
Pass EN61000-3-2 class A
OUTPUT SPECIFICATIONS
Output Voltage
See Table
Output Power
See Table
Output Adjustability
Output adjustable ±5% minimum
Regulation
±5%
Output Current
See Table
Minimum Load
10% minimum load is required to maintain the ripple and regulation
Ripple & Noise
1% (measured from 10KHz to 20MHz BW at output with 0.1µF ceramic and 22µF electrolytic capacitors in parallel).
Transient Response
Returns to within 1% in less than 2.5ms for a 50% load change and the peak transient does not exceed 5%
Overshoot
Turn-on & off < 5% over nominal voltage
Hold-Up Time
20ms min. at 80% of full load
Turn-on Delay
1 second maximum at 230VAC
PROTECTION
Input Fusing Protection
One T8A/250V fuse inserted in primary
Over Power Protection
110~140% of I-max; automatic recovery
Over Voltage Protection
Latching down will occur when output voltage exceeds 130%. Recycle AC input to reset
Short Circuit Protection
Trip without damage and automatic recovery
Over Temperature Protection
Protected in the event of excessive operating ambient 110°C; automatic recovery
GENERAL SPECIFICATIONS
Switching Frequency
23KHz fixed frequency
Efficiency
75%~85% depending on model
Input Line to Chassis
1500VAC (10mA DC cut off current) for 3 seconds
HI-POT test
Primary to Secondary
3000VAC for 3 seconds
Primary to Core
1500VAC for 3 seconds
Burn-in
45±5°C for one hour at 230VAC with full load.
Leakage Current
< 1mA
(optional: 300µA max. at 120VAC; 500µA max. at 240VAC input)
Grounding Test
Apply 25A from ground pin of the three prong plug to the far most earth. Max allowable resistance is 0.1Ω
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature
0°C to +70°C ambient, de-rating at 2.5% per degree from +50°C to +70°C.
Storage Temperature
-20°C to +85°C
Operating Humidity
5% to 90% RH non-condensing
Storage Humidity
5% to 95% RH non-condensing
Vibration
Frequency 5 to 50Hz, acceleration ±7.35 m/(s x s) on X, Y, and Z axis.
U & C type models
Convection
Cooling
E & F type models
Built-in fan
MTBF
100,000 hours at 30°C according to MIL-HDBK-217F
FUNCTIONS
Power Supply ON
Green LED designated as
LED 1
on the PCB
Designated as
PG
on the CN1 goes high 100-500ms after DC regulation and goes low at least 1ms before loss of
Power Good
regulation (open collector)
Fan Drive
12VDC/400mA is available to drive an external fan.
Fan Fail (FF) Alarm
Designated as
FF
on pin 3 of CN1; two types of logical signal provided. Please contact factory for more details.
PHYSICAL SPECIFICATIONS
U type models
1.32 lbs (600g)
C type models
1.43 lbs (650g)
Weight
E type models
1.65 lbs (750g)
F type models
1.76 lbs (800g)
U type models
6.00 x 4.00 x 1.50 inches (152.40 x 101.60 x 38.10 mm)
C type models
6.00 x 4.00 x 1.57 inches (152.40 x 101.60 x 39.90 mm)
Dimensions (L x W x H)
E type models
7.00 x 4.00 x 1.60 inches (177.80 x 101.60 x 40.64 mm)
F type models
6.00 x 4.00 x 2.00 inches (152.40 x 101.60 x 50.80 mm)
SAFETY & EMC
Safety Approvals
UL60950-1
(5)
, EN60950-1, IEC60950-1
EMI Conduction & Radiation
EN55022 Class B
Harmonic Current
EN61000-3-2, EN61000-3-3
EMS Immunity
EN55024, IEC61000-4-2, 3, 4, 5, 6, 11
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
7/23/2019
Page 2 of 6
Rev. C
PSRL0601D Series
125~300 Watts
Dual Outputs, PFC
AC/DC Switching Power Supplies
MODEL SELECTION TABLE
U-CHASSIS MODELS (TYPE “U”)
Model Number
PSRL0601DU-0512
PSRL0601DU-0524
PSRL0601DU-0548
PSRL0601DU-1224
Model Number
PSRL0601DC-0512
PSRL0601DC-0524
PSRL0601DC-0548
PSRL0601DC-1224
Model Number
PSRL0601DE-0512
PSRL0601DE-0524
PSRL0601DE-0548
PSRL0601DE-1224
Model Number
PSRL0601DF-0512
PSRL0601DF-0524
PSRL0601DF-0548
PSRL0601DF-1224
V1
V2
V1
V2
V1
V2
V1
V2
V1
V2
V1
V2
V1
V2
V1
V2
V1
V2
V1
V2
V1
V2
V1
V2
V1
V2
V1
V2
V1
V2
V1
V2
Input Voltage Range
Output Voltage
+5 VDC
+12 VDC
+5 VDC
+24 VDC
+5 VDC
+48 VDC
+12 VDC
+24 VDC
Output Voltage
+5 VDC
+12 VDC
+5 VDC
+24 VDC
+5 VDC
+48 VDC
+12 VDC
+24 VDC
Output Voltage
+5 VDC
+12 VDC
+5 VDC
+24 VDC
+5 VDC
+48 VDC
+12 VDC
+24 VDC
Output Voltage
+5 VDC
+12 VDC
+5 VDC
+24 VDC
+5 VDC
+48 VDC
+12 VDC
+24 VDC
Maximum Output Current
Convection
18CFM
15 A
30 A
10.42 A
16.67 A
15 A
30A
5.2 A
8.33 A
15 A
30 A
2.6 A
4.16 A
12.5 A
16.67 A
6.25 A
8.33 A
Maximum Output Current
15 A
10.42 A
15 A
5.2 A
15 A
2.6 A
12.5 A
6.25 A
Maximum Output Current
30 A
16.67 A
30A
8.33 A
30 A
4.16 A
16.67 A
8.33 A
Maximum Output Current
30 A
16.67 A
30A
8.33 A
30 A
4.16 A
16.67 A
8.33 A
Maximum Output Power
Convection
18CFM
125W
125W
125W
150W
250W
250W
250W
300W
90 ~ 264 VAC
U-CHASSIS WITH TOP COVER MODELS (TYPE “C”)
Input Voltage Range
Maximum Output Power
125W
125W
125W
150W
Maximum Output Power
250W
250W
250W
300W
Maximum Output Power
250W
250W
250W
300W
90 ~ 264 VAC
ENCLOSED WITH SIDE BUILT-IN FAN MODELS (TYPE “E”)
Input Voltage Range
90 ~ 264 VAC
ENCLOSED WITH TOP BUILT-IN FAN MODELS (TYPE “F”)
Input Voltage Range
90 ~ 264 VAC
NOTES
1. Four types of mechanical options are available: U-chassis (“U” type), U-chassis with top cover (“C” type), enclosed with side built-in
fan (“E” type), and enclosed with top built-in fan (“F” type).
2. 10% minimum load is required to maintain the ripple and regulation specifications.
3. Output is full isolated
4. For single output models see the PSRL0601 series.
5. This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
7/23/2019
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
Page 3 of 6
Rev. C
PSRL0601D Series
125~300 Watts
Dual Outputs, PFC
AC/DC Switching Power Supplies

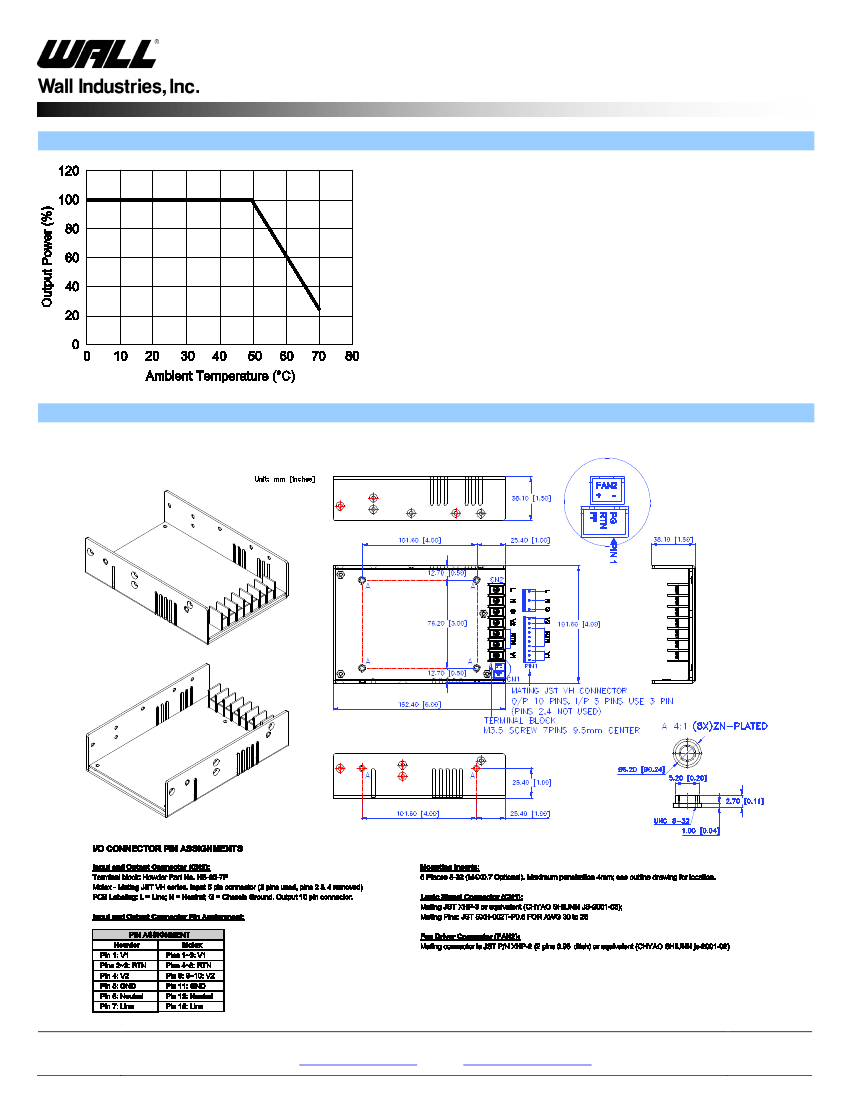

DERATING CURVE
MECHANICAL DRAWING
U-Chassis Models (Type “U”): 6.00(L) x 4.00(W) x 1.50(H) inches; Weight: 1.32 lbs
7/23/2019
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
Page 4 of 6
Rev. C
PSRL0601D Series
125~300 Watts
Dual Outputs, PFC
AC/DC Switching Power Supplies

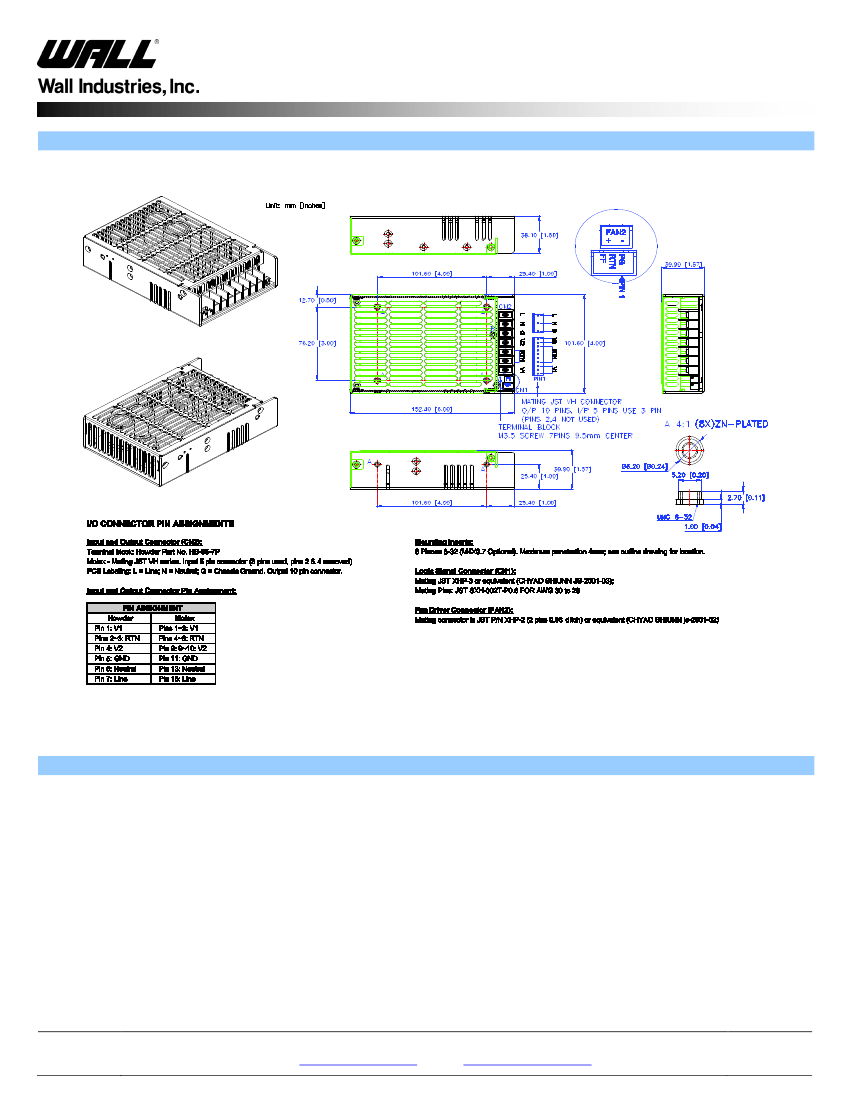

MECHANICAL DRAWING
