5962-8765004LA datasheet, PDF - EEWORLD Datasheet

5962-8765004LA: DescriptionUVPROM, 2KX8, 45ns, CMOS, CDIP24,; Categorystorage storage; File Size159KB，5 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric View All

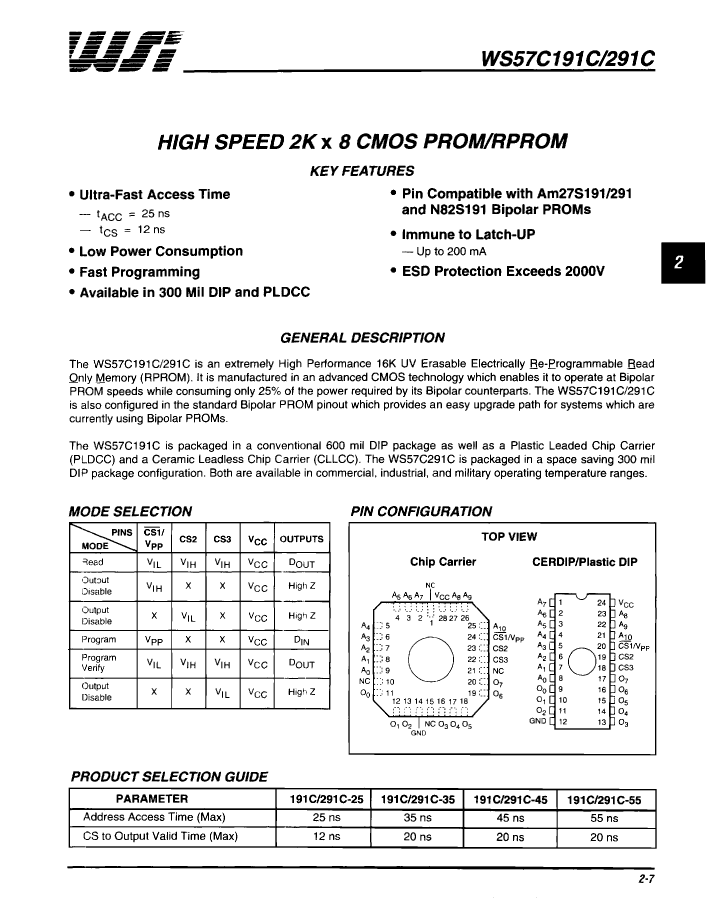

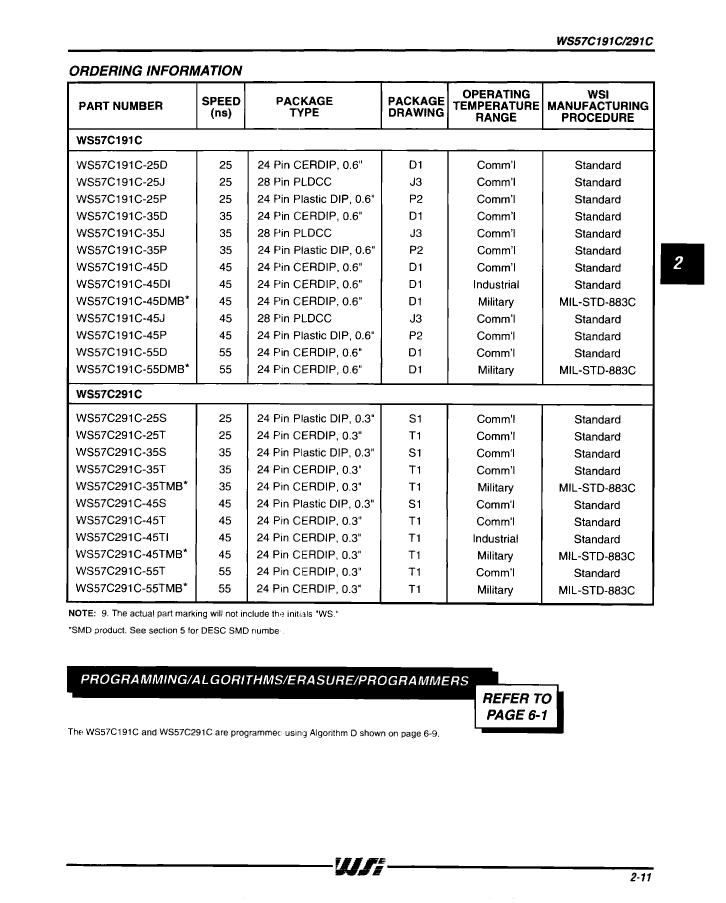

5962-8765004LA Overview

UVPROM, 2KX8, 45ns, CMOS, CDIP24,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown

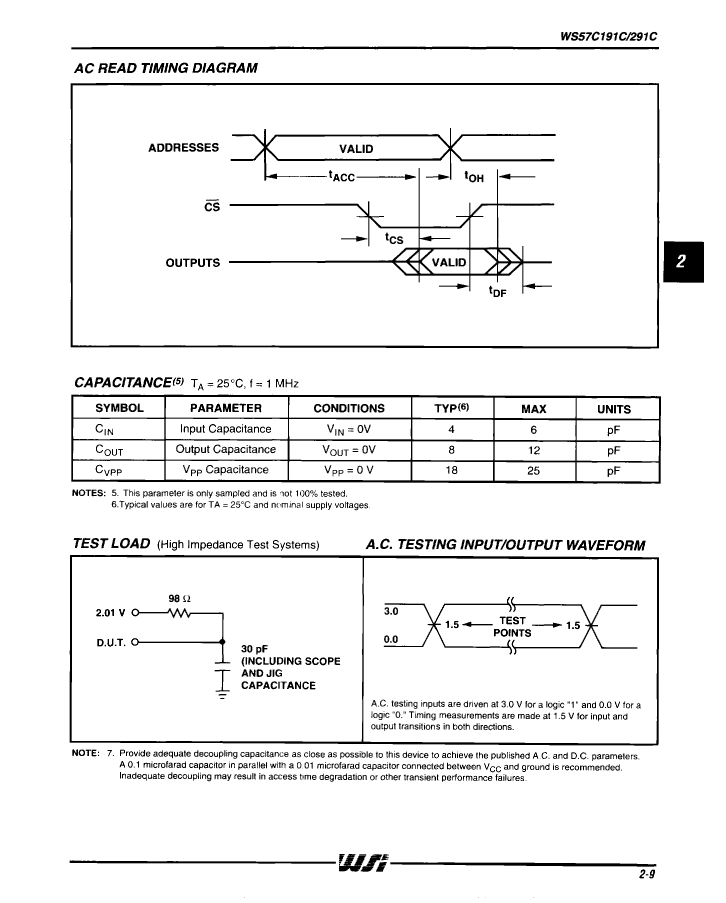

Maximum access time	45 ns
I/O type	COMMON
JESD-30 code	R-GDIP-T24
JESD-609 code	e0
memory density	16384 bit
Memory IC Type	UVPROM
memory width	8
Number of functions	1
Number of terminals	24
word count	2048 words
character code	2000
Operating mode	ASYNCHRONOUS

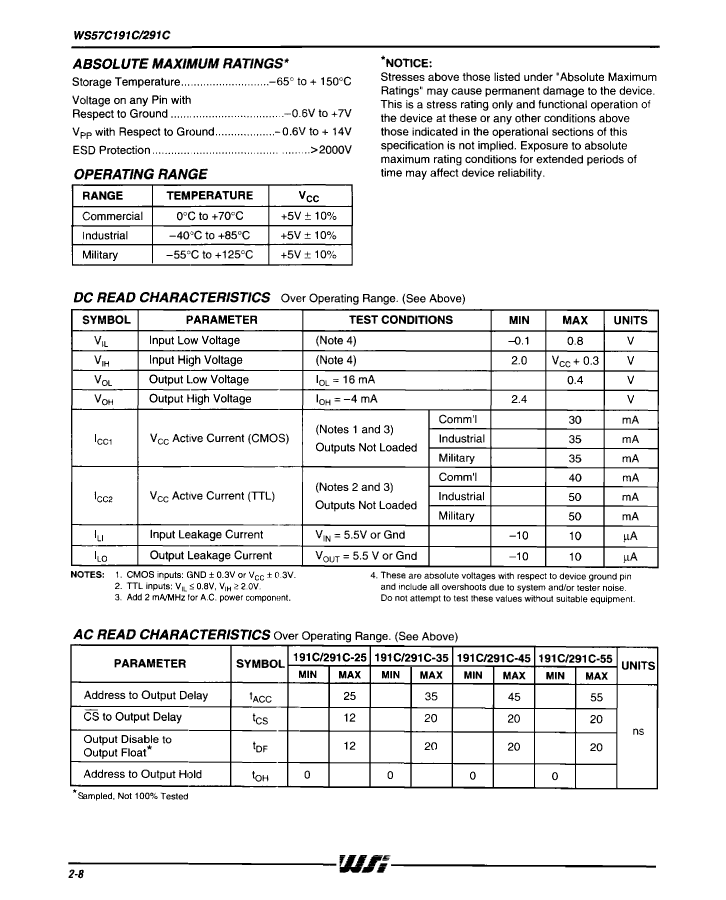

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	2KX8
Output characteristics	3-STATE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
power supply	5 V

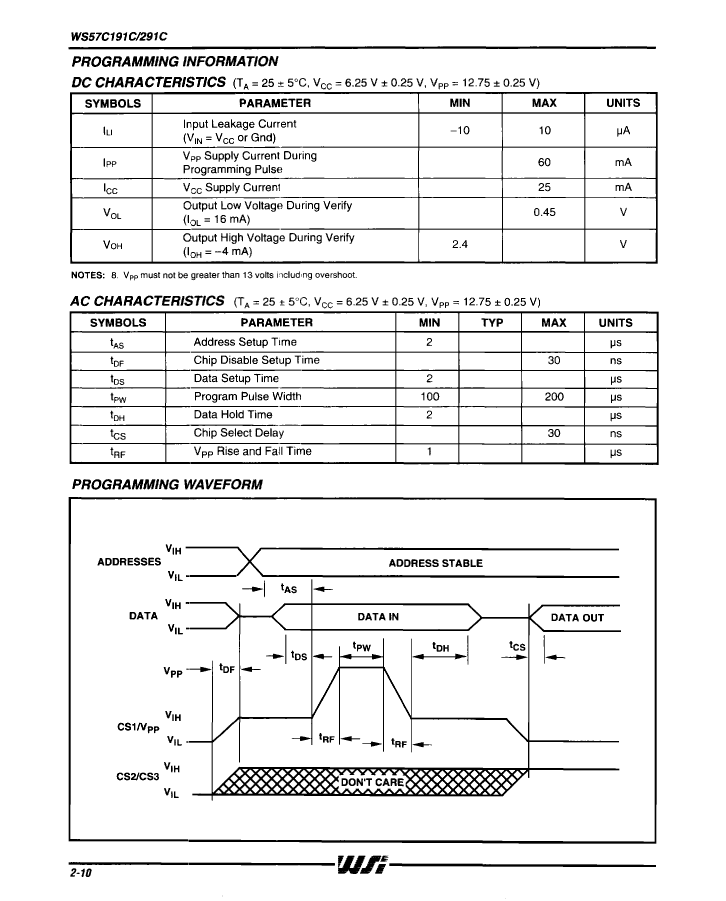

Programming voltage	13.5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum standby current	0.12 A
Maximum slew rate	0.12 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1
