SINGLE OUTPUT HIGH VOLTAGE MODULES
HIGH POWER C SERIES
High Voltage Cap-Charging Supply

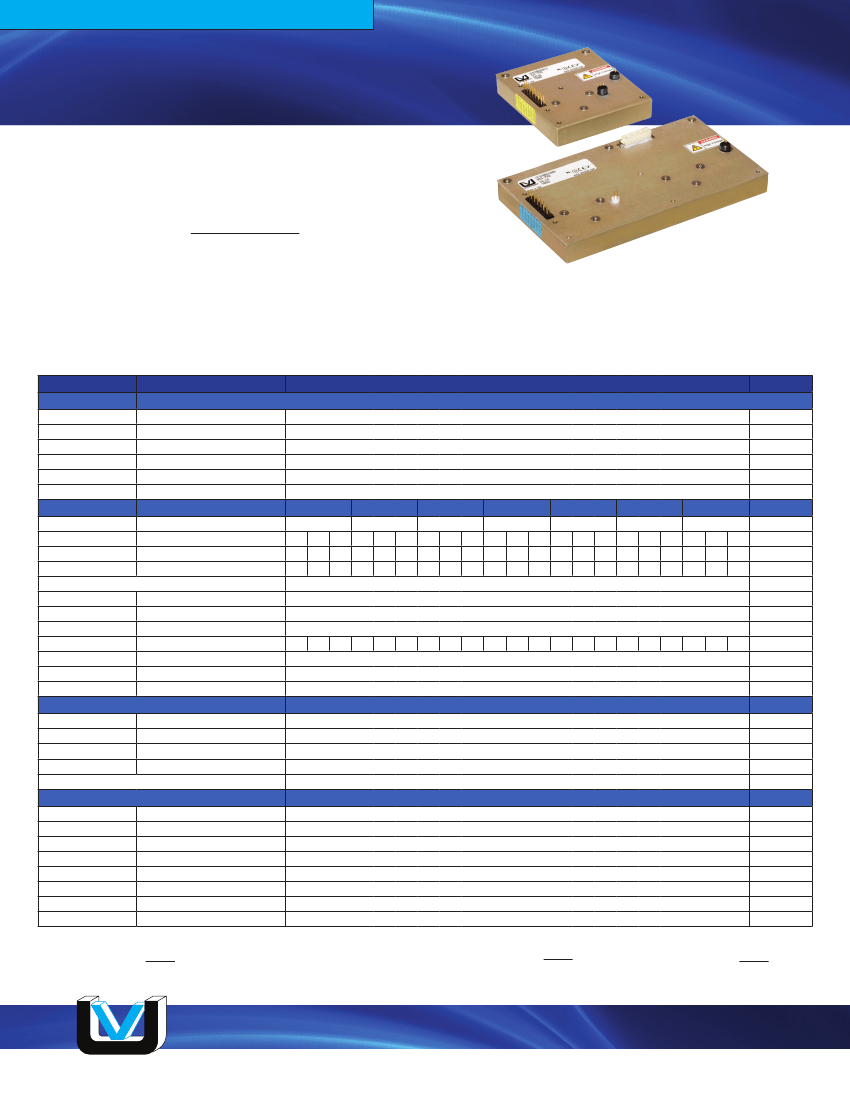

This High Power line of high-voltage regulated DC to DC converters
is an extension of the C Series, directly addressing the high power
density needs of >30 watt applications. High Power C units provide up
to 60/125/250 watts. This high power density is especially suited to
high-energy systems with large capacitances, fast repetition rates, or
high continuous-DC-power requirements. See Application Note 10 for
more charging information. Typical applications for the High Power
C Series include the following: laser, cap-charging, pulsed power,
pulse generator, and test equipment.
10
•
•
•
•
•
•
7 models from 0 to 125 Volts through 0 to 6kV
60, 125, or 250 watts of output power
Maximum Iout capability down to 0 Volts
Maximum Iout during charge/rise time
Output short-circuit protection
Very fast rise with very low overshoot
CONDITIONS
Full Power
Derated Power Range
Standby / Disable
Max Load, Max Eout
No Load, Max Eout
Nominal Input, Full Load
•
•
•
•
•
•
•
High efficiency
High power to voltage density
Very low profile
Output current & voltage monitors
>200,000 hour MTBF @65°C
Fixed-frequency, low-stored-energy design
UL/cUL Recognized Component; CE Mark (LVD & RoHS)
ALL TYPES
+ 23 to 30
+ 11 to 32
< 40
60W: 3, 125W: 6 250W: 12
1/8C to 1C: < 300, 2C to 6C: < 500
< 50
PARAMETER
INPUT
Voltage Range
Voltage Range
Current
Current
Current
AC Ripple Current
UNITS
VDC
VDC
mA
A
mA
mA p-p
OUTPUT
Voltage Range
Power
Current
Current Scale Factor
Voltage Monitor Scaling
Ripple
Overshoot
Rise Time
Storage Capacitance
Line Regulation
Static Load Regulation
Stability
Input Impedance
Adjust Resistance
Adjust Logic
Enable/Disable (ON/OFF)
Full Load, Max Eout, Cload ≥0.5uF
C Load, 0 Eout to Full Eout
Max Iout, Various C Loads & Eout
Internal
Nom. Input, Max Eout, Full Power
No Load to Full Load, Max Eout
30 Min. warmup, per 8 hr/ per day
Nominal Input
Typical Potentiometer Values
0 to +5 for +Out, +5 to 0 for - Out
Nominal Input
Nominal Input, Max Eout
Iout, Entire Output Voltage Range
Full Load
60
1/8C
0 to 125
125 250
60
1/4C
0 to 250
125 250
60
1/2C
0 to 500
125 250
60
60
50
1C
0 to 1,000
125 250
125 250
114 227
60
30
26
2C
0 to 2,000
125 250
62
52
125
60
15
4C
0 to 4,000
125 250
31
26
62
52
60
10
6C
0 to 6,000
125 250
21
42
35
VDC
Watts
mA
mA/V
-
%V p-p
%V pk
-
uF
VDC
VDC
VDC
MΩ
Ω
-
-
VDC
°C
PPM/°C
°C
°C
-
ft
G’s
G’s
480 1000 2000 240 500 1000 120 250 500
400 833 1667 200 417 833 109 208 417
104 11.5
6.2 17.7
100:1 ±2% into 10M
Ω
< 1.0
<1
Figure A
0.90 0.90 1.80 0.90 0.90 1.80 0.43 0.43 0.85 0.019 0.019 0.038 0.019 0.019 0.038 0.013 0.013 0.026 0.013 0.013 0.026
< 0.01%
< 0.01%
< 0.01% / < 0.02%
PROGRAMMING & CONTROLS
ALL TYPES
+ Output Models 1.1MΩ to GND, - Output Models 1.1MΩ to +5 Vref
10K to 100K (Pot across Vref. & Signal GND, Wiper to Adjust)
+4.64 VDC for +Output or +0.36 for -Output = Nominal Eout
+ 5.00VDC ± 2%, Zout = 464Ω ± 1%
0 to +0.5 Disable, +2.4 to 32 Enable (Default = Enable)
Output Voltage & Impedance
T=+25°C
ENVIRONMENTAL
Operating
Coefficient
Thermal Shock
Storage
Humidity
Altitude
Shock
Vibration
C = uF
V = Volts
I = mA
T = mS
ALL TYPES
-40 to +65
±50 (±25 Optional)
-40 to +65
-55 to +105
0 to 95% non-condensing
Sea Level through 70,000
20
10
C = uF
V = kV
I = mA
F = Hz
Full Load, Max Eout, Case Temp.
Over the Specified Temperature
Mil-Std 810, Method 503-4, Proc. II
Non-Operating, Case Temp.
All Conditions, Standard Package
Standard Package, All Conditions
Mil-Std-810, Method 516.5, Proc. IV
Mil-Std-810, Method 514.5, Fig.
514.5C-3
C = uF
V = kV
I = mA
F = Hz
Specifications are subject to change without notice.
T= C x V
I
I=CxVxF
F=
I
CxV
C = uF
E² = kV
J = Ws
J= C x E²
2
Figure A - Rise Time Formulas
NOTE: Capacitance must include HVPS internal Capacitance.
Making High Voltage Easier!
®
ULTRAVOLT
®
Higher Service, Higher Performance, Higher Reliability
©2011, UltraVolt Inc. All rights reserved.
SINGLE OUTPUT HIGH VOLTAGE MODULES
HIGH POWER C SERIES
High Voltage Cap-Charging Supply
60W/125W

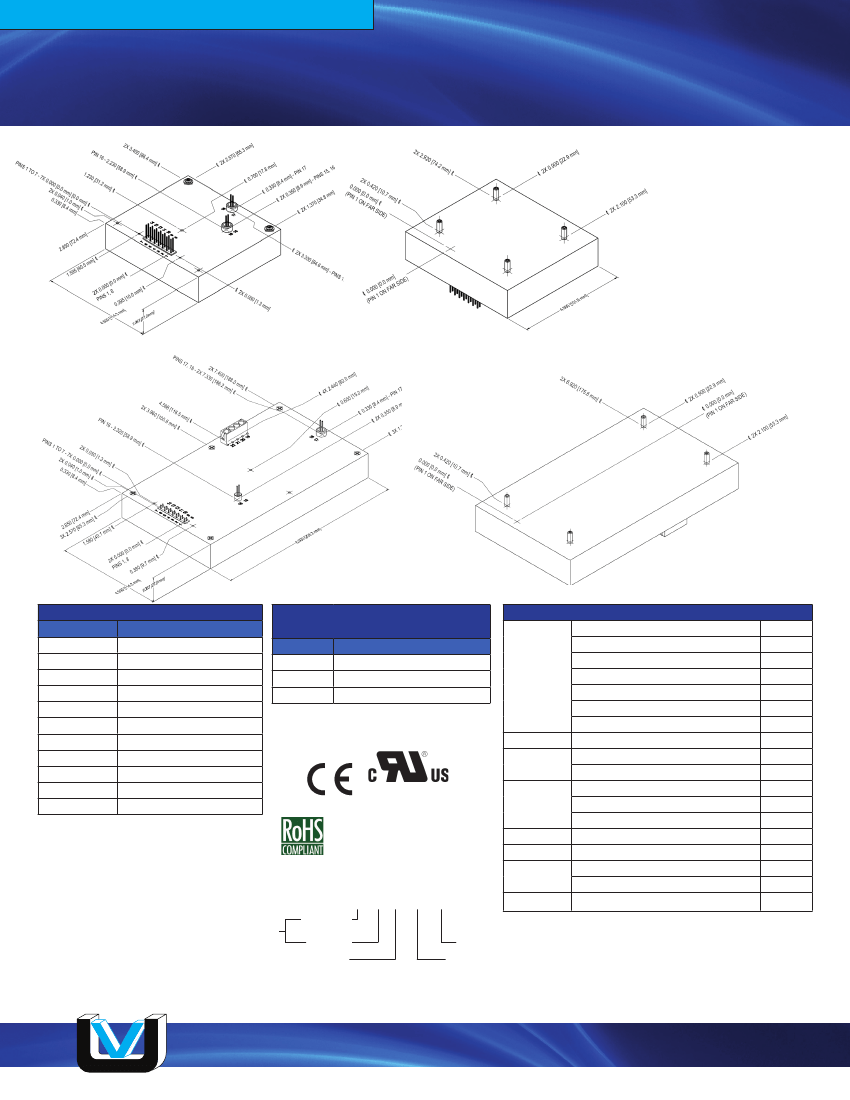

CONSTRUCTION
11
Epoxy-filled Aluminum Box
Chem film per MIL-A-8625 Type II
(Anodizing)
SIZE
Volume:
60W/125W: 19.35in³ (317cc)
250W: 38.7in³ (634cc)
Weight:
60W/125W: 1.4 lbs (.64kg)
250W: 2.6 lbs (1.18kg)
TOLERANCE
Overall ±0.025” (0.64)
Pin to Pin ±0.015” (0.38)
Hole to Hole location ±0.025” (0.64)
250W
Downloadable drawings (complete
with mounting & pin information) and
3D models are available online.
PIN
1&8
2&9
3
4
5
6
7
CONNECTIONS
FUNCTION
Input Power Ground Return
Positive Power Input
Iout Monitor
Enable/Disable
Signal Ground Return
Remote Adjust Input
+5VDC Reference Output
10, 11, 12, & 13
N/C
14
Eout Monitor
15 & 16
HV Ground Return
17 & 18
HV Output
HIGH POWER PIN CONNECTIONS
(250 WATT UNITS)
PIN
FUNCTION
2, 9, & 10 N/C
19 & 20 Positive Power Input
21 & 22 Input Power Ground Return
ORDERING INFORMATION
0 to 125 VDC Output
0 to 250 VDC Output
0 to 500 VDC Output
Type
0 to 1,000 VDC Output
0 to 2,000 VDC Output
0 to 4,000 VDC Output
0 to 6,000 VDC Output
Input
24VDC Nominal
Positive Output
Polarity
Negative Output
60 Watts Output
Power
125 Watts Output
250 Watts Output
Heat Sink
.400” High (sized to fit case)
PCB Support (5 or 7) 0.187" standoffs on top cover
5V Control and Monitors
Enhanced
Interface
10V Control and Monitors
Options
25PPM Temperature Coefficient
1/8C
1/4C
1/2C
1C
2C
4C
6C
24
-P
-N
60
125
250
-H
-Z11
-I5
-I10
-25PPM
IEC-60950-1
Non-RoHS compliant units are
available. Please contact the
factory for more information.
All grounds joined internally. Power-supply
mounting points isolated from internal grounds
by >100kΩ, .01uF / 50V (Max).
Manufactured in USA
Example:
Type
Voltage
Model
Input
1/2C24-P125
Power
Polarity
Note: For more information on the enhanced interface options,
download the
I5/I10 Option datasheet.
Rev. Z 10/14
Popular accessories ordered with this product include CONN-
KIT-HP250, CONN-KIT-HP and the BR-8 mounting bracket kit.
