Card Edge Connector for
PCI Express Applications
DESCRIPTION

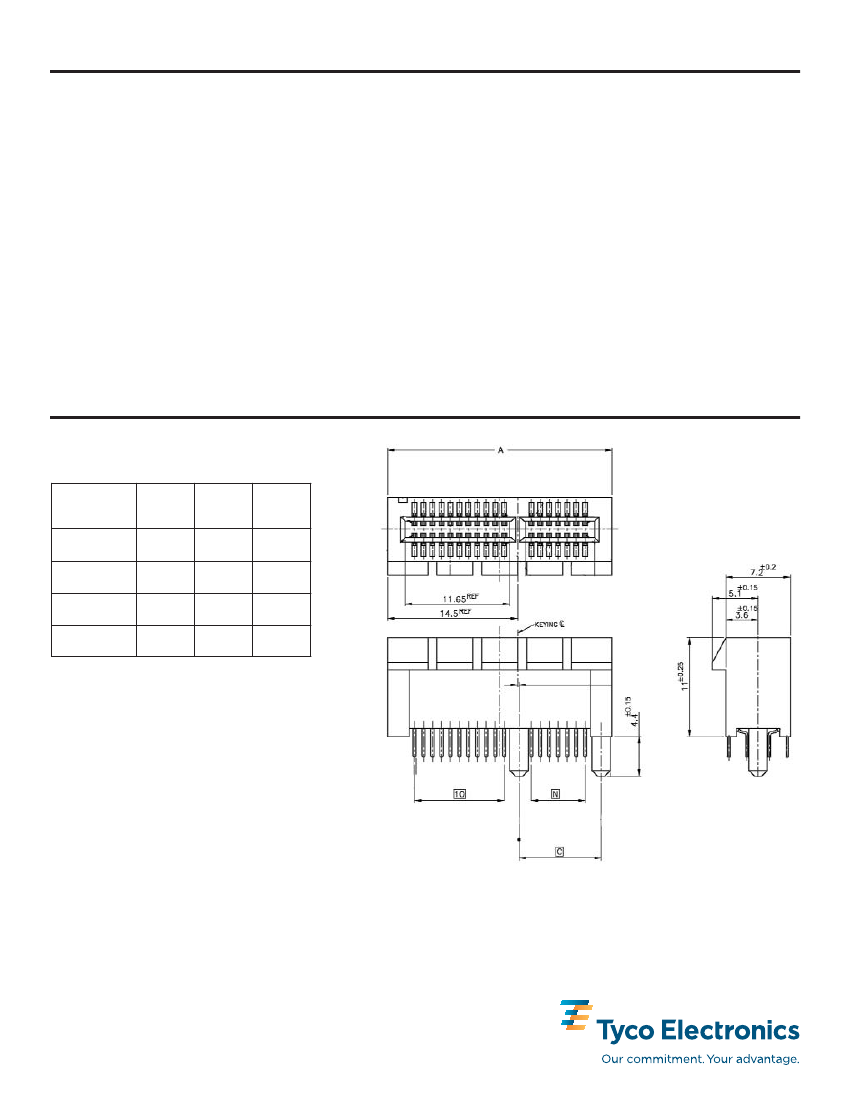

• In right angle configuration
Tyco Electronics Card Edge Connector
for PCI Express applications is a 1mm
centerline card edge product designed
to meet PCI SIG requirements for
PCI Express architecture. PCI Express
architecture is a high performance point
to point full duplex I/O Bus.
APPLICATIONS
•
Serial Bus for Graphics Cards and I/O
Client Cards for applications requiring
higher speeds than the popular PCI Bus.
Computers, both Desktop and Server,
•
along with Telecommunication Switches
and Routers.
KEY FEATURES
•Available:

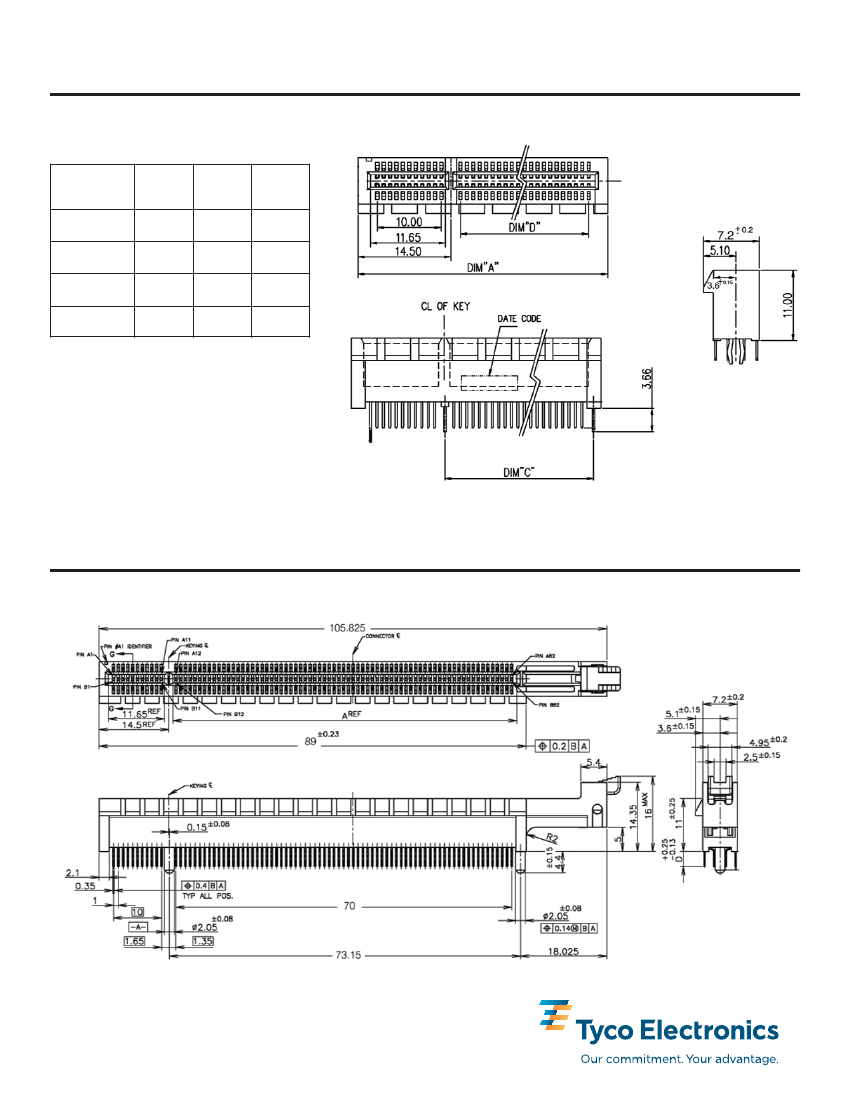

• In all standard sizes: (36 pins), x4
(64 pins), x8 (98 pins), and x16
(164pins)
• With plastic locating posts or
metal hold downs
• With integrated retention
mechanism in x16 size

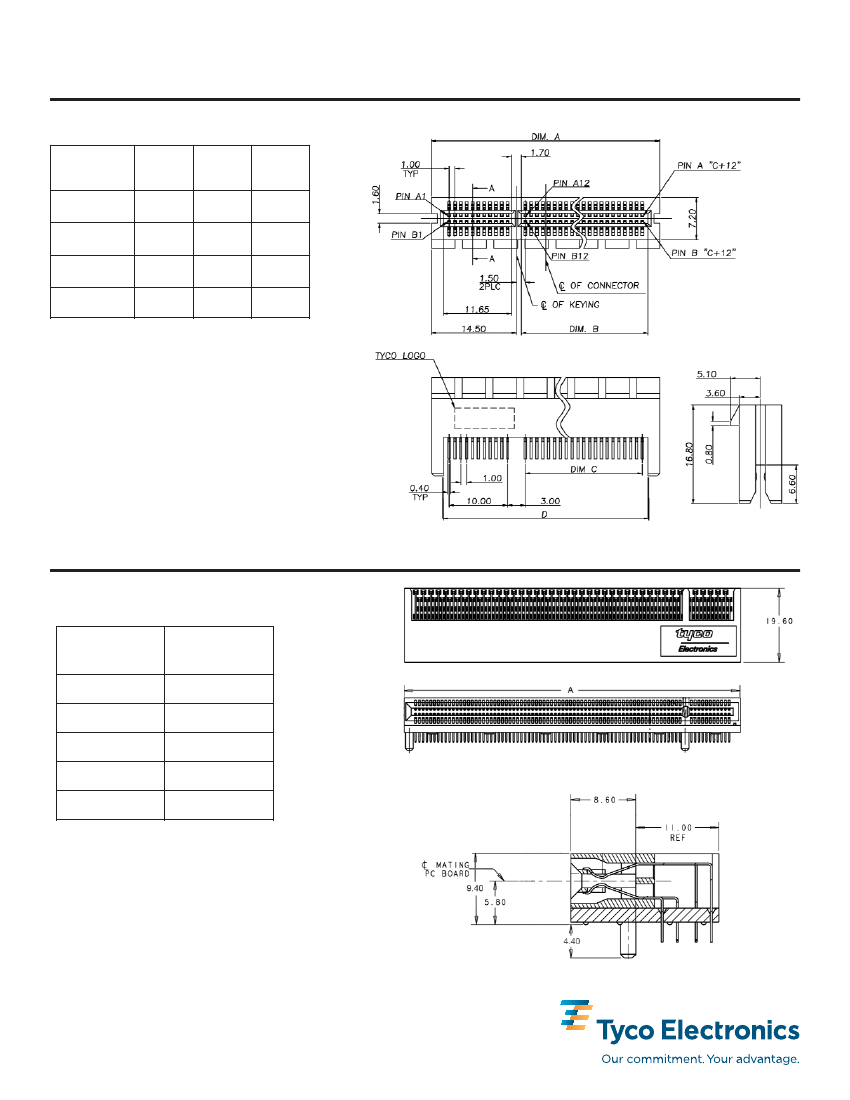

• In straddle mount configuration
RATINGS
Operating Temperature:
• Three tail lengths: 2.3mm, 3.1mm,
and 5.6mm
• Gold Flash, 15 Gold, and 30 Gold
plating options
•RoHS Compliant
FOR MORE INFORMATION
TECHNICAL DOCUMENTS
•Product Specification
•108-5847 (1612163, 1746220,
& 1761465)
•108-57375 (1775800 & 1775801)
Internet:
http://www.tycoelectronics.com
•108-57351 (1734857)
•Test Reports
•501-5453 (1612163,1746220,
&1761465)
•501-57406 (1775800 & 1775801)
•501-57490 (1734857)
USA: 1-800-522-6752
Canada: 1-905-470-4425
UK: 44-141-810-8967
Japan: 81-44-844-8013
John Larkin, Product Manager
Phone: 1-717-592-2074
E-mail: jtlarkin@tycoelectronics.com
Technical Support
Durability:
Current Rating:
Voltage Rating:
-40°C to +85°C
50 cycles
1.1A
50 VAC
PCI Express and PCI SIG are registered trademarks of the PCI-SIG Corporation.
Card Edge Connectors for PCI Express Applications
Restriction on the use of Hazardous Substances (RoHS)
At Tyco Electronics, we’re ready to support your RoHS
requirements. We’ve assessed more than 1.5 million end
items/components for RoHS compliance, and issued new
part numbers where any change was required to eliminate
the restricted materials. Part numbers in this catalog are
identified as:
RoHS Compliant —
Part numbers in this catalog are RoHS
Compliant, unless marked otherwise. These products comply
with European Union Directive 2002/95/EC as amended 1
January 2006 that restricts the use of lead, mercury, cadmium,
hexavalent chromium, PBB, and PBDE in certain electrical and
electronic products sold into the EU as of 1 July 2006.
NOTE: For purposes of this Catalog, included within the
definition of RoHS Compliant are products that are clearly
“Out of Scope” of the RoHS Directive such as hand tools and
other non-electrical accessories.
NOTE: Information regarding RoHS compliance is provided
based on reasonable inquiry of our suppliers and represents
our current actual knowledge based on the information
provided by our suppliers. This information is subject to
change. For latest compliance status, refer to our website
referenced at right.
Getting the Information You Need
Our comprehensive on-line RoHS Customer Support Center
provides a forum to answer your questions and support your
RoHS needs. A RoHS FAQ (Frequently Asked Questions) is
available with links to more detailed information. You can also
submit RoHS questions and receive a response within 24
hours during a normal work week.
The Support Center also provides:
• Cross-Reference from Non-compliant to
Compliant Products
• Ability to browse RoHS Compliant
Products in our on-line catalog
• Downloadable Technical Data
Customer Information Presentation
• More detailed information regarding
the definitions used above
• So whatever your questions when it
comes to RoHS, we’ve got the answers
at www.tycoelectronics.com/leadfree
Disclaimer
While Tyco Electronics Corporation and its affiliates referenced herein (“Tyco Electronics”) have made every reasonable effort to ensure the accu-
racy of the information in this catalog, Tyco Electronics does not guarantee that it is error free, nor does Tyco Electronics make any other repre-
sentation, warranty or guarantee that the information is accurate, correct reliable or current.
Tyco Electronics reserves the right to make any adjustments to the information contained herein at any time without notice.
Tyco Electronics expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to,
any implied warranties of merchantability or fitness for a particular purpose. Tyco Electronics’ only obligations are those in the
Tyco Electronics Standard Terms and Conditions of Sale, and in no case will Tyco Electronics be responsible for any incidental,
indirect, or consequential damages arising from the sale, resale, or misuse of its products. Users should independently evaluate
the suitability of, and test each product for, their application.
4-1773442-7-CC&CE_ZB-PDF-03/08
© 2008 by Tyco Electronics Corporation. All Rights Reserved.
PCI Express is a registered trademark of PCI-SIG Corporation.
TE logo and TYCO ELECTRONICS are trademarks.
Other products, logos, and company names mentioned
herein maybe trademarks of their respective owners.
