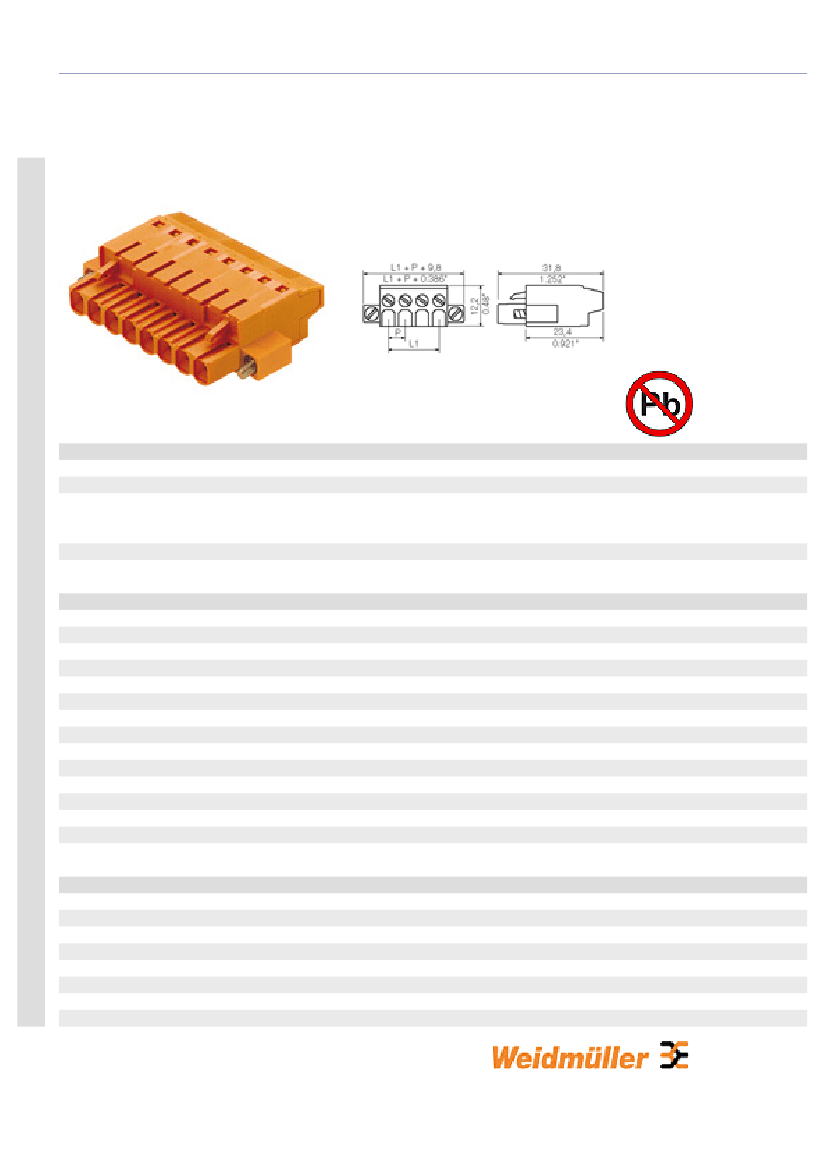

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, TOP connection, pitch 5.00/5.08 | BLT 5.08 | BLT 5.08F
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Conductor connection system
Outgoing direction of conductor
Pitch
Pitch in inch
No. of poles
No. of rows
Screwdriver blade
Screwdriver blade standard
Tightening torque, min.
Tightening torque, max.
Clamping screw
Stripping length
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
1844110000
BLT 5.08/14F SN OR
PCB plug-in connector, Female connectors, TOP
connection, Clamping range, max.: 2.5 mm²,
Pitch: 5.08 mm, No. of poles: 14, 180°, Box
4032248356034
50 pc(s).
TOP connection
180°
5.08 mm
0.2 inch
14
1
0.6 x 3.5
DIN 5264
0.4 Nm
0.5 Nm
M 2.5
13 mm
66.04 mm
2.6 inch
Safe from finger touch
PBT
orange
Similar to RAL 2000
IIIa
V-0
>= 200
CuSn
tinned
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, TOP connection, pitch 5.00/5.08 | BLT 5.08 | BLT 5.08F
Material data
Connectable conductors
Clamping range, min.
Clamping range, max.
AWG, min.
AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
With wire end ferrule, acc. to DIN 46 228/1, min.
With wire end ferrule, acc. to DIN 46 228/1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
w. plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor (field wiring), min.
AWG conductor (field wiring), max.
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor, min.
AWG conductor, max.
0.13 mm²
2.5 mm²
28
14
0.2 mm²
2.5 mm²
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
2.4 mm x 1.5 mm ; 2.4 mm
17 A
14 A
15 A
11.5 A
400 V
320 V
250 V
4 kV
4 kV
4 kV
3 x 1s with 100 A
300 V
10 A
26
14
300 V
10 A
26
14
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, TOP connection, pitch 5.00/5.08 | BLT 5.08 | BLT 5.08F
Approvals
Approvals institutes
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-04
Similar products
Order No.
1843990000
1844220000
1844000000
1844230000
1844010000
1844240000
1844020000
1844250000
1844030000
Part designation
BLT 5.08/2F SN OR
BLT 5.08/2F SN SW
BLT 5.08/3F SN OR
BLT 5.08/3F SN SW
BLT 5.08/4F SN OR
BLT 5.08/4F SN SW
BLT 5.08/5F SN OR
BLT 5.08/5F SN SW
BLT 5.08/6F SN OR
Version
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 2,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 2,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 3,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 3,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 4,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 4,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 5,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 5,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 6,
180°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, TOP connection, pitch 5.00/5.08 | BLT 5.08 | BLT 5.08F
1844260000
1844040000
1844270000
1844050000
1844280000
1844060000
1844290000
1844070000
1844300000
1844080000
1844310000
1844090000
1844320000
1844100000
1844330000
1844340000
1844120000
BLT 5.08/6F SN SW
BLT 5.08/7F SN OR
BLT 5.08/7F SN SW
BLT 5.08/8F SN OR
BLT 5.08/8F SN SW
BLT 5.08/9F SN OR
BLT 5.08/9F SN SW
BLT 5.08/10F SN OR
BLT 5.08/10F SN SW
BLT 5.08/11F SN OR
BLT 5.08/11F SN SW
BLT 5.08/12F SN OR
BLT 5.08/12F SN SW
BLT 5.08/13F SN OR
BLT 5.08/13F SN SW
BLT 5.08/14F SN SW
BLT 5.08/15F SN OR
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 6,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 7,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 7,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 8,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 8,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 9,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 9,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 10,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 10,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 11,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 11,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 12,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 12,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 13,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 13,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 14,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 15,
180°, Box
-4-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, TOP connection, pitch 5.00/5.08 | BLT 5.08 | BLT 5.08F
1844350000
1844130000
1844360000
1844140000
1844370000
1844150000
1844380000
1844160000
1844390000
1844170000
1844400000
1844180000
1844410000
1844190000
1844420000
1844200000
1844430000
BLT 5.08/15F SN SW
BLT 5.08/16F SN OR
BLT 5.08/16F SN SW
BLT 5.08/17F SN OR
BLT 5.08/17F SN SW
BLT 5.08/18F SN OR
BLT 5.08/18F SN SW
BLT 5.08/19F SN OR
BLT 5.08/19F SN SW
BLT 5.08/20F SN OR
BLT 5.08/20F SN SW
BLT 5.08/21F SN OR
BLT 5.08/21F SN SW
BLT 5.08/22F SN OR
BLT 5.08/22F SN SW
BLT 5.08/23F SN OR
BLT 5.08/23F SN SW
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 15,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 16,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 16,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 17,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 17,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 18,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 18,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 19,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 19,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 20,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 20,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 21,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 21,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 22,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 22,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 23,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 23,
180°, Box
-5-
