51771-024 datasheet, PDF - EEWORLD Datasheet

51771-024: DescriptionBoard Connector, 34 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size192KB，4 Pages; ManufacturerCapax Technologies Inc; Websitehttp://www.capaxtechnologies.com/

Download Datasheet Parametric View All

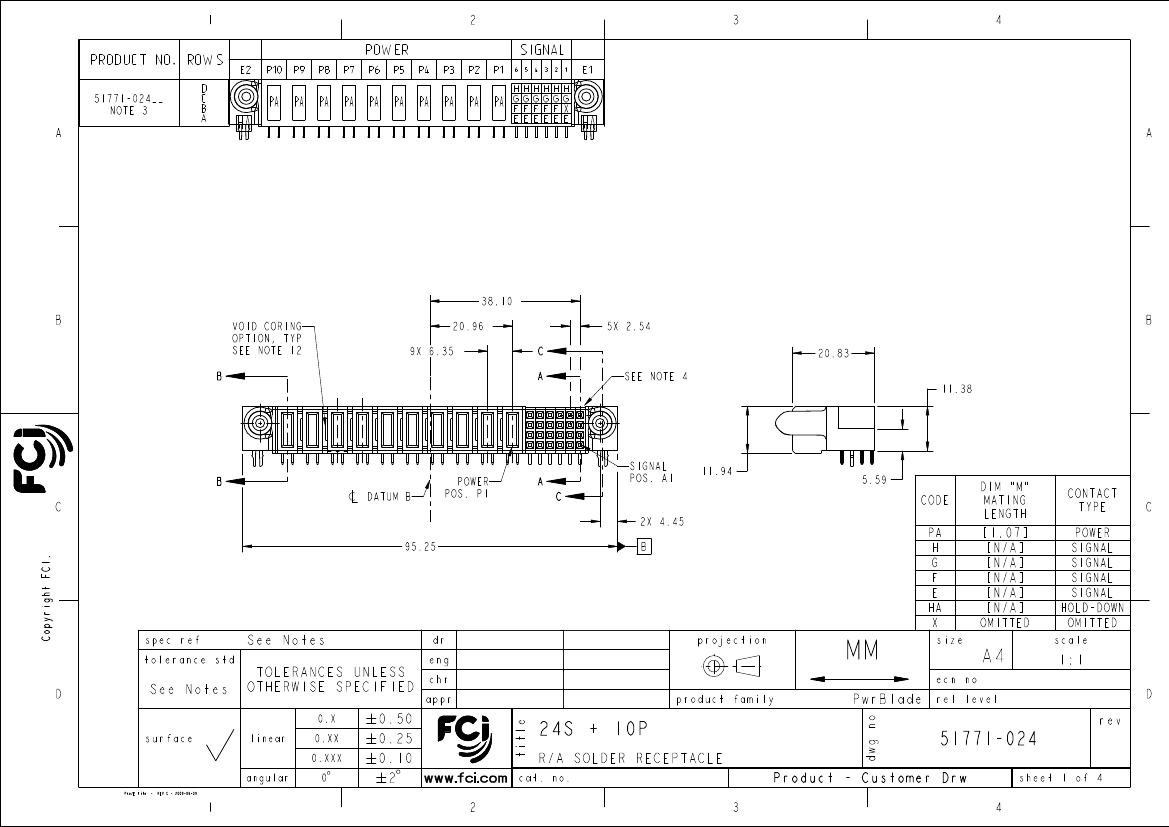

51771-024 Overview

Board Connector, 34 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Locking, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	TERMINAL PITCH FOR POWER CONTACT: 6.35 MM
Board mount options	SPLIT BOARD LOCK
body width	0.47 inch
subject depth	0.82 inch
body length	3.75 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	51771
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	34
UL Flammability Code	94V-0
Evacuation force-minimum value	.1668 N
Base Number Matches	1

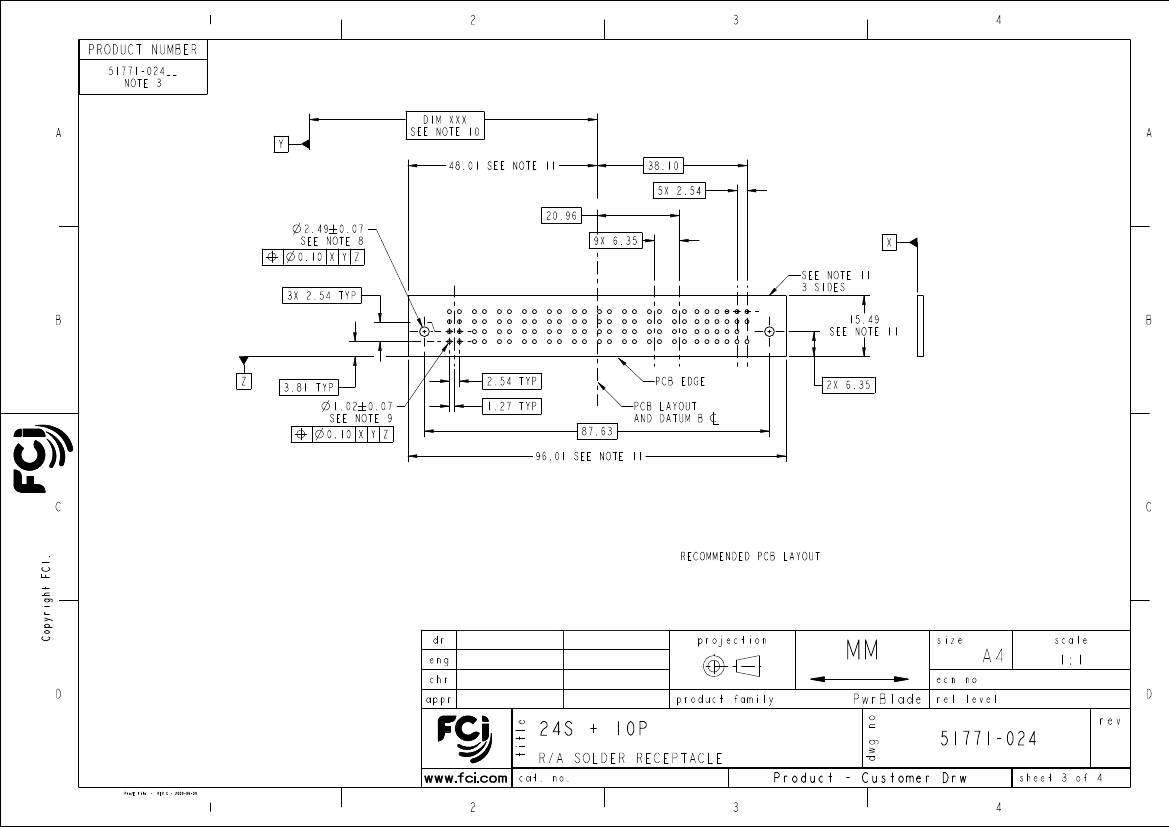

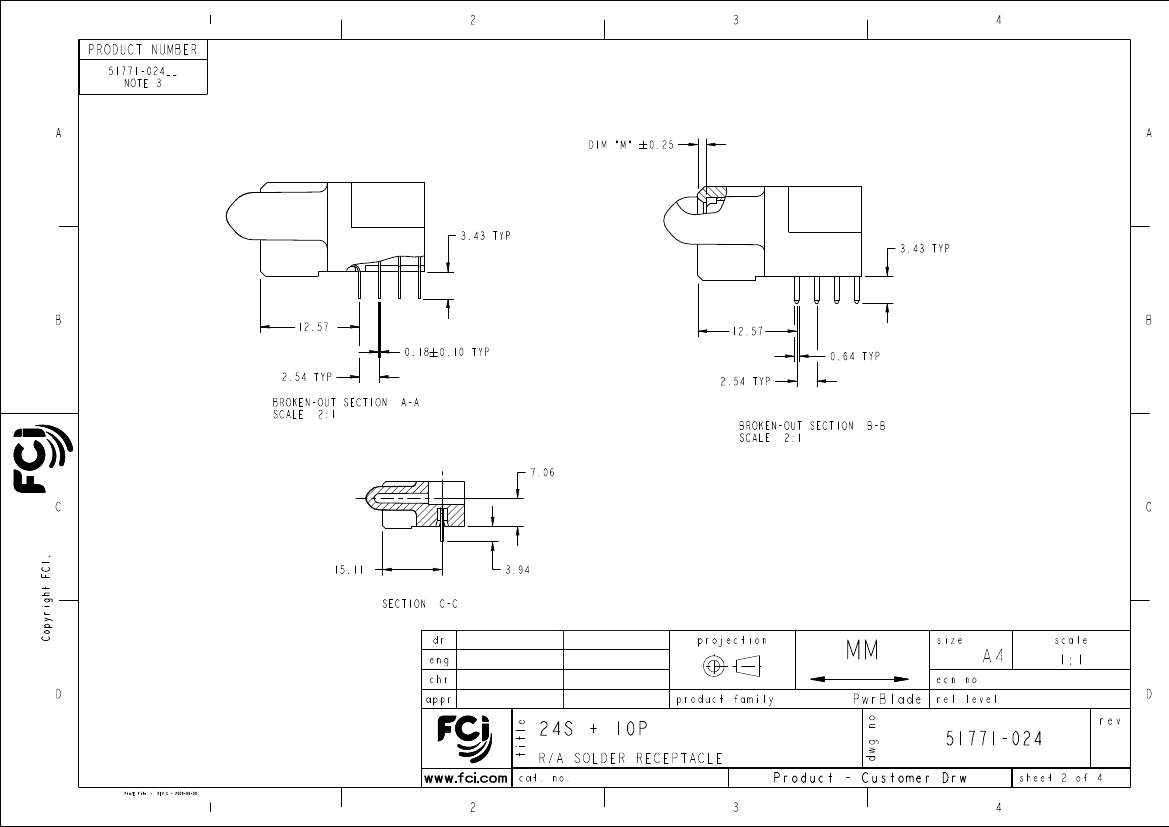

X Q Wang

Pei-Ming Zheng

2012/01/20

2012/02/03

Released

PDS: Rev :A

STATUS:Released

Printed: Feb 06, 2012
