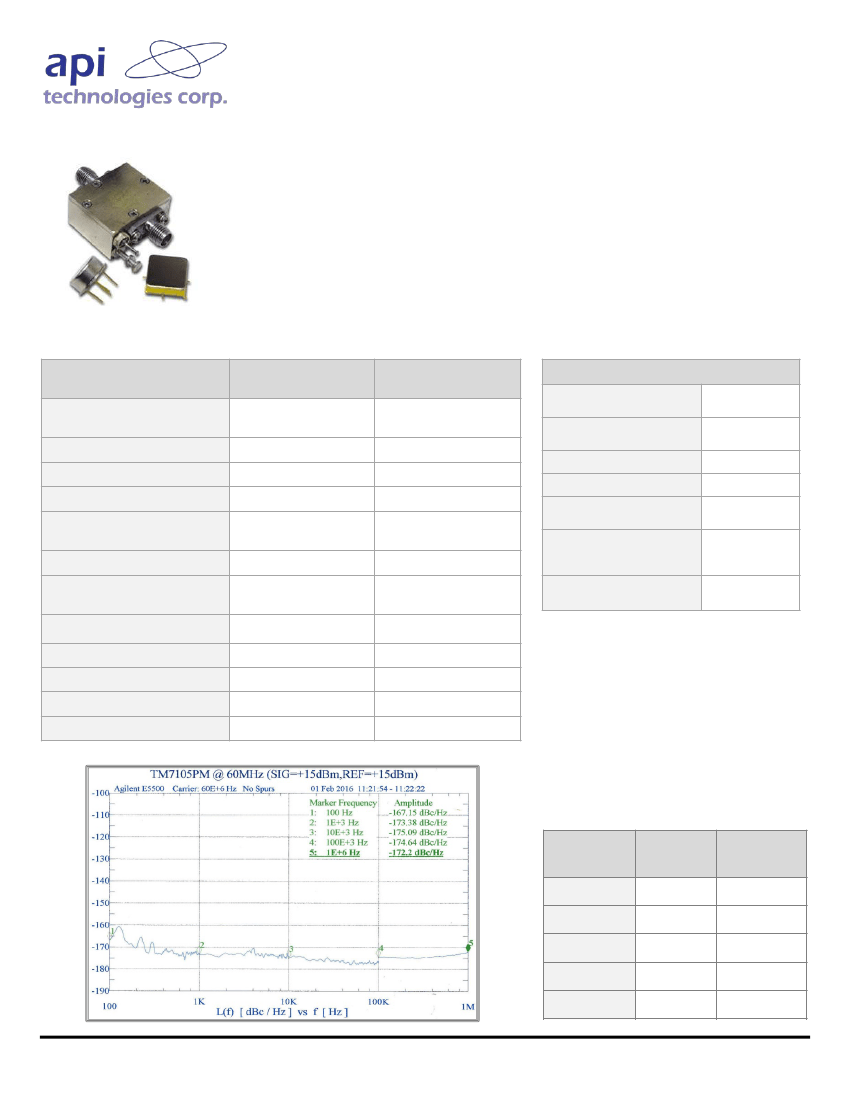

Model # TM7105PM
Available As:
TM7105PM: 4 Pin, 0.500” TO-8 Package (T4)
TN7105PM: 4 Pin, 0.450” Sq. Surface-mount Package (SM3)
FP7105PM: 4 Pin, 0.500” Sq. Flatpack (FP4)
BX7105PM: SMA Connectorized Housing (H1)
RF/Microwave Amplifier
Features
•
Unconditionally Stable
•
Modifications Available at No Additional Charge
•
Environmental Screening Available
•
EAR99
•
Superior Phase Noise Performance
•
No Additional Circuitry Needed, Internal Blocking Caps Included
Technical Specifications
Parameter
Frequency Range
Gain
Gain Flatness
Noise Figure (10-150 MHz)
Output Power @ 1 dB
Compression
Output
3
rd
Order Intercept
Typical
25°C
1 MHz – 250 MHz
15 dB
+/- 0.4 dB
2.5 dB
+15 dBm
+30 dBm
+42 dBm
18.5 dB
1.5:1
1.5:1
+5 volts
35 mA
Min/Max-
55°C to +85°C
1 MHz - 150 MHz
Maximum Ratings
Maximum (No Damage) Ratings
Storage Temperature
Operating Temperature
-62°C to +125°C
-55°C to +125°C
+125°C
+ 8 volts
+ 13 dBm
50 Milliwatts
(1 Minute Max.)
0.1 Watt
(3 μsec Max.)
13.5 dB Min.
+/- 0.7 dB Max.
3.5 dB Max.
+14 dBm
---
---
---
2.0:1 Max.
2.0:1 Max.
+5 volts
45 mA Max.
Case Temperature
DC Voltage @ 25°C
Continuous RF Input Power
Short Term RF Input Power
Maximum Peak Power
Output 2
nd
Order Intercept
Reverse Isolation
Input VSWR
Output VSWR
Supply Voltage
Supply Current
•
Typical values are measured at 25°C,
but not guaranteed.
Max input power +13 dBm with 50
ohms terminated at RF output port.
•
Guaranteed Phase Noise (60 MHz)
Performance (dBc/Hz) at 25C
Frequency
(Offset)
100 Hz
1 kHz
10 kHz
100 kHz
1 MHz
Rev Date: 2/1/2016
© API Technologies Corp. Proprietary Information
|
www.apitech.com
|
micro.apitech.com
|
+1.888.553.7531
|
Typical
Guaranteed
-165
-173
-175
-175
-172
-160
-165
-170
-170
-168
Page # 1
MicrowaveSales@apitech.com
Model # TM7105PM
Instructions
Grounding Instructions
Revisions
Min./Max. Values
Care should be taken to effectively ground each unit.
API reserves the right to make revisions to both product and/or the information contained within their
datasheets without advanced notice.
Specifications are guaranteed when tested in a 50 Ω (ohm) system from -55°C to +85°C.
Typical performance graphs and values are measured at 25°C, but not guaranteed.

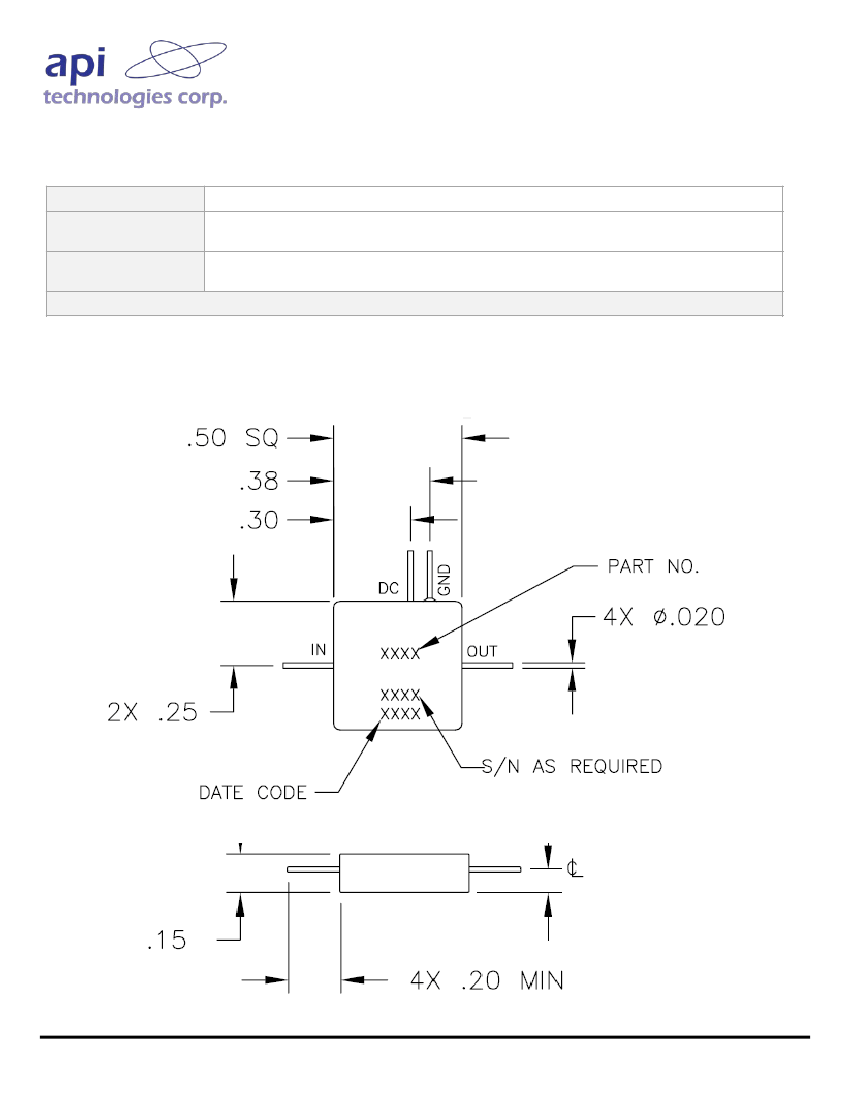

Outline Drawing
(For reference only (FP7105PM)
Rev Date: 2/1/2016
© API Technologies Corp. Proprietary Information
|
www.apitech.com
|
micro.apitech.com
|
+1.888.553.7531
|
Page # 2
MicrowaveSales@apitech.com
