RC-06P1N1280A5: DescriptionCircular Connector,; CategoryThe connector The connector; File Size60KB，3 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

RC-06P1N1280A5 Overview

Circular Connector,

RC-06P1N1280A5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	not_compliant
Is Samacsys	N
Connector type	CIRCULAR CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

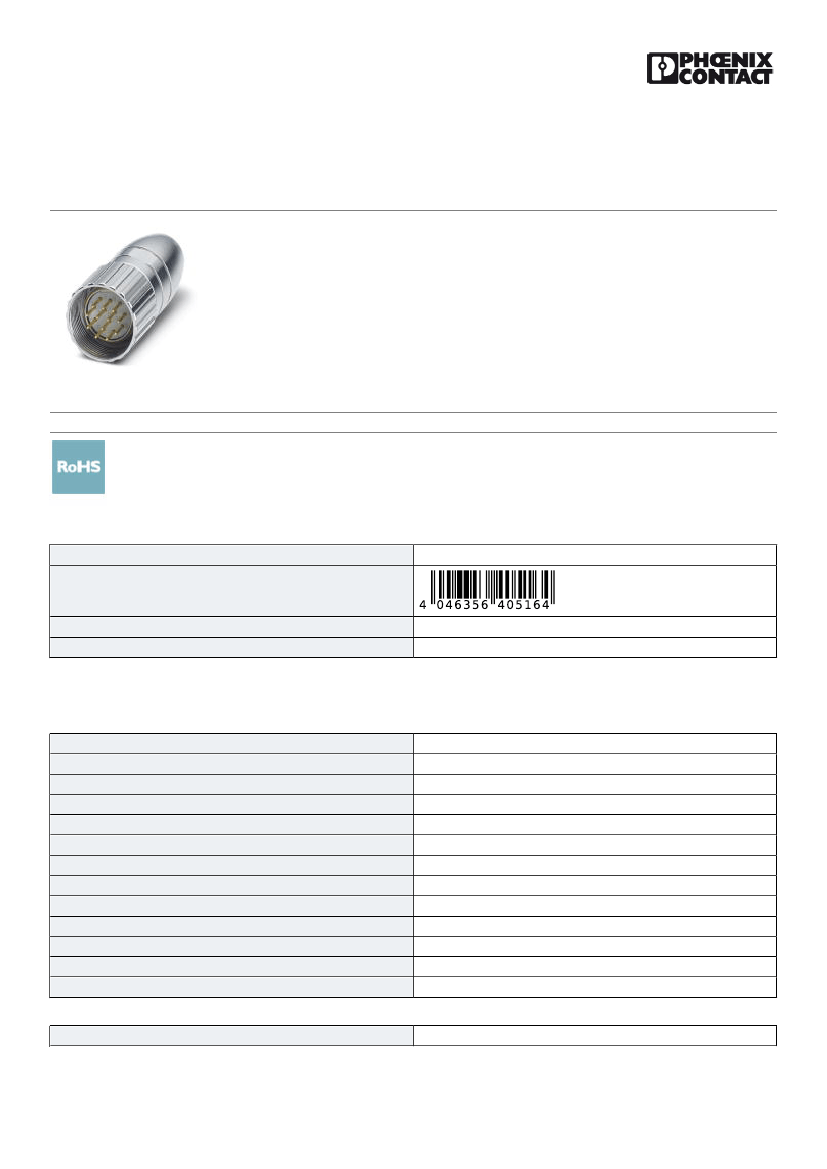

https://www.phoenixcontact.com/in/products/1614657

Cable connector - RC-06P1N1280A5 - 1614657

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Cable connector, straight, shielded: yes, Screw locking, M23, No. of pos.: 6, type of contact: Pin, Solder

connection, cable diameter range: 6.5 mm ... 7.5 mm

The figure shows the 12-pos.

product version

Key Commercial Data

Packing unit

GTIN

Custom tariff number

4046356405164

85366990

1

Technical data

Data of the insulating body

Coding

Insertion/withdrawal cycles mechanical

Contact connection method

Type of contacts

Application

Number of positions

Litz wire cross section of power contacts min.

Litz wire cross section of power contacts max.

Nominal current per power contact at 25°C

Nominal voltage, power contact

Rated surge voltage

Overvoltage category

Degree of pollution

N

50

Solder connection

Signal

6

0.08 mm²

2.5 mm²

20 A

300 V

2.5 kV

II

3

Housing data

Housing material

Metal

01/09/2019 Page 1 / 3
