DATA SHEET| NOVEMBER 1, 2006
ECCW Narrow Linewidth CW External Cavity
Laser Diode
The ECCW series external cavity laser is a cost effective solution for a
coherent laser source. The laser is fabricated in a 14-pin hermetically
sealed butterfly package that incorporates a bias tee circuit, an
integrated thermoelectric cooler (TEC), a thermistor, and a back facet
monitor photodiode. The ECCW provides substantially lower phase
Features
ITU wavelengths across the C-
band
100 GHz channel spacing
Up to 20 mW minimum output
power
Narrow linewidth
Industry standard, high
reliability, hermetic 14-pin
butterfly package
Excellent long-term
wavelength stability eliminates
the need for a wavelength
locker
Back-facet monitor
Designed to meet Telcordia
GR-468 qualification standard
Operating Case Temperature Range
Center Wavelength (100 GHz ITU Grid)
Optical Isolation
Optical Return Loss
Side Mode Suppression Ratio, CW
Relative Intensity Noise
-20
1527
35
40
35
-
-
-
-
-
-
-155
+75
1570
-
-
-
-
°C
nm
dB
dB
dB
dB/Hz
noise and a longer coherence length than other semiconductor lasers,
including DFB lasers. The wavelength stability is assured by design,
eliminating the need for wavelength lockers and complex feedback
control circuits.
Performance Highlights
Min
Minimum Optical Output Power
Optical Linewidth, CW, Version A
Version B
Version C
5
-
30
60
Typical
-
-
-
-
Max
20
30
80
150
kHz
Units
mW
Applications
Seismic sensor applications
Interferometry
Spectroscopy
Lidar
Optical test and
instrumentation
Microwave photonics
See following pages for complete specifications and conditions.
For more information on this and other products:
Contact Sales at Ortel 626-293-3400, or visit www.emcore.com.
ECCW Narrow Linewidth CW External
Cavity Laser Diode
DATA SHEET| NOVEMBER 1, 2006
Absolute Maximum Ratings
1
Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are
absolute stress ratings only. Functional operation of the device is not implied at these or any other conditions in
excess of those given in the operational sections of the data sheet. Exposure to absolute maximum ratings for
extended periods can adversely affect device reliability.
Parameters
Storage Temperature
Operating Case Temperature
Forward Current
Reverse Voltage
Photodiode Forward Current
Photodiode Reverse Voltage
TEC Current
2
TEC Voltage
Fiber Bend Radius
Tensile Strength, Fiber to Case
Lead Soldering Time
3
Package Mounting Screw Torque
4
Operating Humidity: Non-Condensing
Storage Humidity: Non-Condensing
1.
2.
3.
4.
Symbol
T
STG
T
OP
I
OP
V
R
I
MPD,F
V
MPD,R
I
TEC
V
TEC
R
F
t
sold
X
op
X
op
Condition/Notes
Non-Operating
Continuous
CW
Continuous
Continuous
Continuous
-
Continuous
Continuous
Continuous
< 260°C
-
Continuous
Continuous
MIN
-40
-20
-
-
-
-
-
-
35
-
-
-
5
5
MAX
85
75
150
2
2
10
1.8
3.5
-
5
10
0.12
95
95
Unit
o
C
o
C
mA
V
mA
V
A
V
mm
N
sec
m*N
%
%
Absolute maximum data are limited to system design only; proper device performance is not guaranteed over rating listed above. Operation
beyond these maximum conditions may degrade device performance, lead to device failure, shorter lifetime, and will invalidate the device
warranty.
o
TEC current should not exceed 2.0 A during turn on, and case temperature under any conditions should not change faster than 10 C/min.
Soldering iron only; no reflow or dip soldering allowed.
See mounting recommendations below.
ORTEL, A division of EMCORE
ECCW Narrow Linewidth CW External
Cavity Laser Diode
DATA SHEET| NOVEMBER 1, 2006
Electrical/Optical Characteristics
Parameters
Minimum Optical Output Power
Symbol
P
O
Conditions/Notes
5 mW Version
10 mW Version
15 mW Version
1
20 mW Version
1
Version A
Version B
Version C
-
-
CW, P
O
= 10 mW
CW, P
O
= 10 mW
-10ºC < T
C
< 70ºC
Specified for Every Laser
MIN
5
10
15
20
-
30
60
-
-
-
0.05
-
16
Typ
-
-
-
-
-
-
-
-
-
-
-
-
-
MAX
-
-
-
-
30
80
150
30
130
2.0
0.5
±0.5
35
Unit
mW
Optical Linewidth
2
Threshold Current
Laser Bias Current
Forward Voltage
MPD Current
MPD Tracking Error
TEC Set Temperature
3
Center Wavelength (100 GHz ITU Grid)
Wavelength Drift with Case (-10 to 70 ºC)
Temperature
Wavelength Offset from DWDM ITU Grid
Wavelength Temperature Coefficient
Wavelength Current Coefficient
Optical Isolation
Relative Intensity Noise
Side Mode Suppression Ratio
TEC Current
TEC Voltage
TEC Capacity
Thermistor Resistance
Thermistor Beta Constant
1.
2.
3.
Not available for Version B.
CW, at rated power.
TEC temperature at the recommended value.
kHz
mA
mA
V
mA
dB
ºC
nm
pm
pm
pm/ºC
pm/mA
dB
dB/Hz
dB
A
V
ºC
kΩ
K
I
TH
T
OP
V
F
I
MON
TE
T
s
λ
c
ΔλΤ
c
Δλ
offset
Δλ/ΔT
Δλ/ΔΙ
-
RIN
SMSR
I
TEC
V
TEC
ΔT
R
TH
Β
See ITU Grid Channel Numbering Table
Relative to 25ºC Case
-
-
±40
Temperature
TEC Temperature at T
S
-
-
±80
-
-
-10ºC < T
C
< 70ºC
CW, at 200 MHz
CW, P
O
> 1 mW
T
C
= 70ºC, T
OP
= T
S
T
C
= 70ºC, T
OP
= T
S
T
C
= 70ºC
T
OP
= T
S
-
-
-
35
-
35
-
-
55
9.5
-
-
-
-
-155
-
-
-
-
10.0
3891
40
2
-
-
-
1.5
3.0
-
10.5
-
ORTEL, A division of EMCORE
3
ECCW Narrow Linewidth CW External
Cavity Laser Diode
DATA SHEET| NOVEMBER 1, 2006
Fiber Pigtail Specifications
Parameters
Fiber Type
Mode Field Diameter
Cladding Diameter
Outer Diameter of Buffer
Length of Pigtail
Optical Connector
Conditions/Notes
MIN
Typ
TM
Single Mode Fiber, Corning SMF-28
-
9.0
10.4
-
123.5 125.0
-
900
-
-
1
-
(See Ordering Information)
MAX
11
126.5
-
-
Unit
μm
μm
μm
m
Test Data
14
12
10
Output Power
LD Voltage
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
10 20 30
40
50
60
70 80
0
90 100
14
12
10
Output Power
Photomonitor
Output
Power
(mW)
8
6
4
2
0
Output
LD
Voltage Power
(mW)
(V)
8
6
4
2
0
0
10 20 30
40
50
60
70 80
180
160
140
120
100
80
60
40
20
0
90 100
MPD
Current
(mA)
Bias
Current [mA]
Bias
Current (mA)
Bias
Current [mA]
Bias
Current (mA)
ORTEL, A division of EMCORE
4
ECCW Narrow Linewidth CW External
Cavity Laser Diode

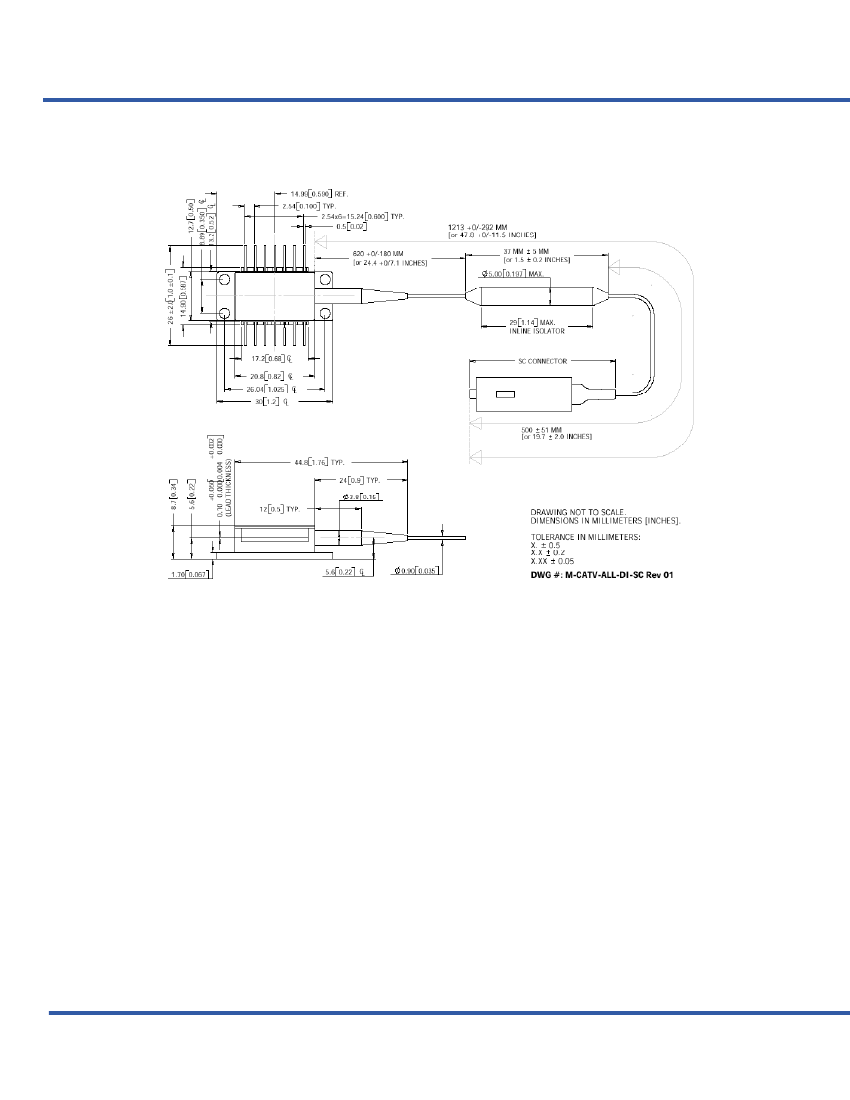

Outline Drawing
DATA SHEET| NOVEMBER 1, 2006
ORTEL, A division of EMCORE
5
