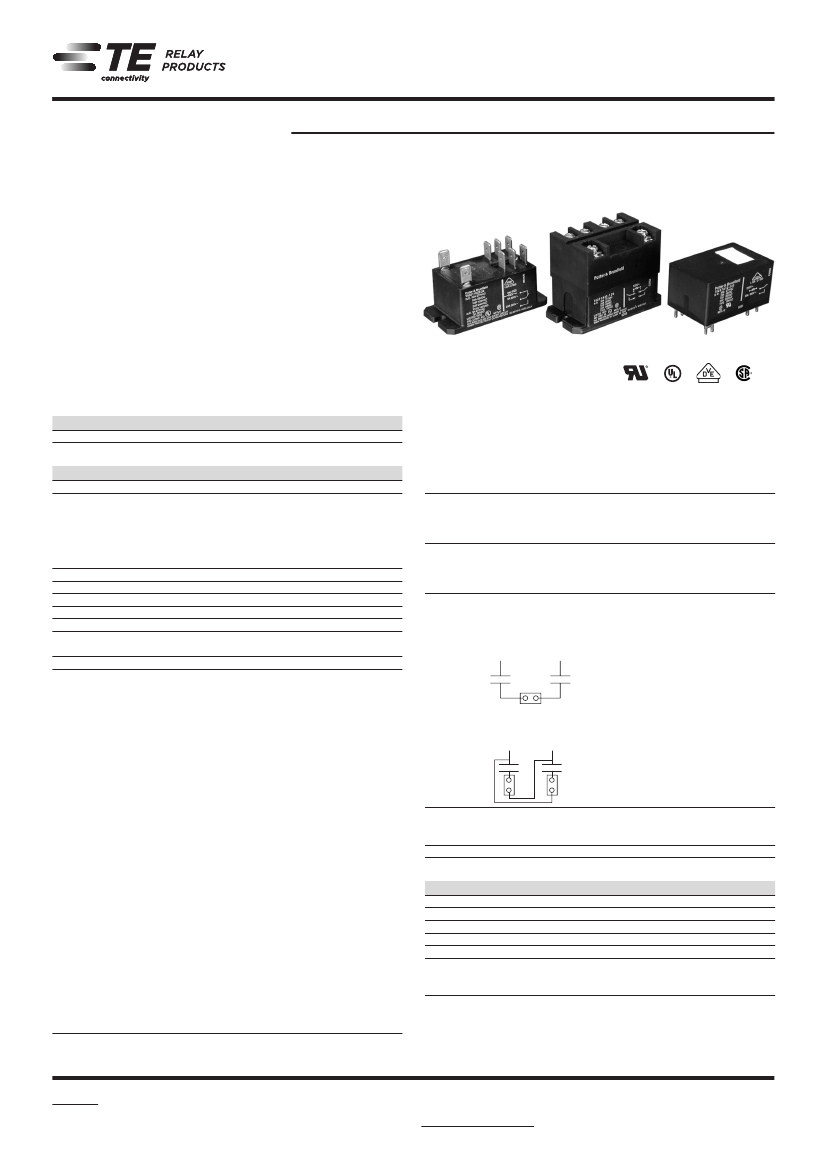

General Purpose
High Power PCB Relays
Potter & Brumfield
T92 Series Two-pole 30A PCB or Panel Mount Relay
n
n
n
n
n
n
n
n
n
40A, 2 form A (NO) and 2 form C (CO) switching capability
Designed to control compressor loads to 3.5 tons, 110LRA / 25.3FLA
Meets requirements of UL 508 and UL 873 spacings - 8mm through
air, 9.5mm over surface
Meets requirements of VDE 8mm spacing, 4kV dielectric coil-to-
contact
Meets requirements of UL Class F construction
UL approved for 600VAC switching (1.5HP)
Screw terminal version (consult factory for availability, ratings)
Anti-explosive version available (Meets EN 60079-15)
WG version available (Meets EN 60335-1)
Typical applications
HVAC, residential / commercial appliances, industrial controls.
Approvals
UL E22575 (Recognized and Listed); CSA LR48471; VDE 40019600
Technical data of approved types on request.
Contact Data
Contact arrangement
2 form A (NO), 2 form C (CO)
Rated voltage
277VAC
Max. switching voltage
600VAC
Rated current
30A NO; 3A NC
Limiting continuous current
40A NO; 3A NC
Limiting making current
40A NO; 3A NC
Limiting breaking current
40A NO; 3A NC
Contact material
AgSnOInO, AgCdO
Min. recommended contact load
500ma (NO)/ 100ma (NC), 12VAC
Frequency of operation, with load
360hr
Operate/release time max., including bounce
25/25ms
Initial contact resistance
< 100 mΩ at 6VDC 1A
Contact ratings
1)
Type
Load
UL508
AgCdO
NO
40A, 277VAC, resistive
NO
30A, 120/277VAC, resistive
NO
10A, 600VAC, general purpose
NO
1HP, 120VAC
NO
3HP, 240VAC
NO
1.5HP, 480 or 600VAC
NO
110LRA/25.3FLA, 240VAC (DC coil only)
NO
60LRA/14FLA, 240VAC (AC coil only)
NO
3A, 240VAC, pilot duty
NO
20A, 28VDC, resistive
NO
TV10, 120VAC
NC
3A, 277VAC
NC
2A, 480VAC
NC
1A, 600VAC
AgSnOInO
NO
40A, 240VAC, resistive 85°C
NO
30A, 120/277VAC, resistive (DC coil only)
NO
30A, 120/277VAC, resistive (AC coil only)
NO
20A, 480VAC, resistive
NO
1.5HP, 120VAC, 2 pole making/breaking (Fig.1)
NO
3HP, 240VAC, 3 phase (DC coil only)
NO
3HP, 480VAC, 3 phase (DC coil only)
NO
2HP, 600VAC, 3 phase (DC coil only)
Special Ag Alloy X (Cd Free), wash tight
NO
30A, 250VAC, resistive
NO
30A, 400VAC, resistive
NO
20A, 480VAC, resistive
Cycles
6x10
3
100x10
3
100x10
3
100x10
3
1x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
50x10
3
200x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
Contact ratings
1)
(continued)
VDE
AgCdO, flange mount relays
NO
20A, 400VAC
100x10
3
NC
3A, 400VAC
30x10
3
CO
20A NO / 3A NC, 400VAC
30x10
3
AgCdO, PC mount relays
NO
30A, 400VAC
100x10
3
NC
3A, 400VAC
30x10
3
CO
30A NO / 3A NC, 400VAC
30x10
3
Anti-explosion, sealed type
NO
30A 250VAC, 25°C
100x10
3
Anti-explosion, break device
NO
15A 480VAC
100x10
3
ARI 780-86 Endurance Test (section 6.6):
HVAC Definite Purpose Contactor Standard
Normally Open Contacts
Single Phase/Two Pole (Both poles together switching a single load)
110 LRA, 25.3 FLA, 200K operations (DC Coil)
L1
L2
T2
Figure 1
T1
Single Phase Per Pole (Single load per pole)
110 LRA, 18 FLA, 200K operations (DC Coil).
60 LRA, 14 FLA, 200K operations (AC Coil).
L1
L2
T2
Figure 2
T1
1) Contact ratings at 25°C (unless otherwise noted) with relay properly vented.
FLA, LRA ratings are compatible with 3.5 ton compressor applications.
Mechanical endurance
10x10
6
ops.
Coil Data
Coil voltage range
Max. coil power
Max. coil temperature
Coil insulation system according UL
Coil versions, DC coil (D type)
Coil
Rated
Operate
code
voltage
voltage
VDC
VDC
5
5
3.75
6
6
4.5
9
9
6.75
5 to 110VDC; 12 to 240VAC
1.7W; 4.0VA
155°C
Class F
Release
voltage
VDC
0.6
0.6
0.9
Coil
resistance
Ω±10%
14.9
22
48
Rated coil
power
W
1.7
1.7
1.7
02-2020, Rev. 0220
www.te.com
© 2012 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.
Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Catalog product data, ‘Definitions’ section,
application notes and all specifications are
subject to change.
1
General Purpose
High Power PCB Relays
Potter & Brumfield
T92 Series Two-pole 30A PCB or Panel Mount Relay
(Continued)
Coil data
(continued)
12
12
9
1.2
86
1.7
18
18
13.5
1.8
197
1.7
22
22
16.5
2.2
294
1.7
24
24
18
2.4
350
1.7
36
36
27
3.6
767
1.7
48
48
36
4.8
1390
1.7
110
110
82.5
11
7255
1.7
120
120
90
12
8514
1.7
Coil versions, AC coil (A type)
(continued)
Coil
Rated Frequency Operate
Release
Coil
Rated coil
code voltage
voltage
voltage resistance power
VAC
Hz
VAC, 60Hz VAC, 60Hz Ω±10%
VA
12
12
60
9.6
1.2
9.1
4
24
24
60
19.2
2.4
36.6
4
110
110
60
88
11
793
4
120
110/120
50/60
96
12
950
4
208
208
60
166.4
20.8
2841
4
240
220/240
50/60
192
24
3800
4
277
250/277
50/60
221.6
27.7
5485
4
Coil versions, AC coil (F type)
Coil
Rated Frequency Operate
Release
Coil
Rated coil
code voltage
voltage
voltage resistance power
VAC
Hz
VAC, 60Hz VAC, 60Hz Ω±10%
VA
12
12
50
9.6
1.2
11.2
3.5
24
24
50
19.2
2.4
44.4
3.5
48
48
50
38.4
4.8
179.2
3.5
240
240
50
192
24
4355
3.5
All figures are given for coil without preenergization, at ambient temperature +23°C. For A
type, 110V/120V, 50/60Hz. Signify 50Hz Operation at Nominal 110V, 60 Hz Operation at
Nominal 120V.
Max. Allowable Ambient Temp. (°C)
120
100
80
60
40
20
0
70
75 80
85
90 95 100 105 110 115 120 125 130 135 140 145 150
Applied Coil Voltage (% of Rated Nominal)
Coil Data
(continued)
Ambient temperature vs. coil voltage
Assumptions:
1. Thermal resistance = 35°C per Watt (DC only.)
2. Still air.
3. Nominal coil resistance.
4. Max. mean coil temperature = 155°C (change of resistance method).
5. Coil temperature rise due to load = 6.3°C @ 30 amps.
6. Curves are based on 1.7W at 25°C (DC only.)
Insulation Data
Initial dielectric strength
between open contacts
between contact and coil
between adjacent contact
Initial surge withstand voltage
between contact and coil
Initial insulation resistance
between insulated elements
Clearance/creepage
between contact and coil
1500V
rms
4000V
rms
2000V
rms
8kV
1x10
9
Ω
8mm clearance/9.5mm creepage
Other Data
AC
AC
Coi
Coi
l0A
A
DC C
l 30
DC C
o
oil 0 A
il 30
mp C
Amp
ontac
t Loa
d
Cont
act L
oad
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Ambient temperature
DC coil
-55ºC to 85ºC
AC coil
-55ºC to 65ºC
Category of environmental protection
IEC 61810
RTI - dust protected,
RTII - flux proof, RTIII - wash tight
Vibration resistance (functional)
1.65mm max excursions, 10-55 Hz
Shock resistance (functional)
10g for 11msec
Shock resistance (destructive)
100g
Terminal type
PCB-tht or quick connect
Weight
86g
Resistance to soldering heat THT
IEC 60068-2-20
260°C
Packaging/unit
tray/30 pcs., box/120 pcs.
Dimensions
T92 – Mounting and termination code 1
2.06 MAX.
(52.32)
1.36 MAX.
(34.54)
T92 – Mounting and termination code 2, 3 and 4
2.700 MAX.
(68.58)
1.36 MAX.
(34.54)
1.21 MAX.
(30.73)
.156
(3.96)
.250 TYP.
(6.35)
.032 TYP.
(0.81)
.047 TYP.
(1.19)
1.04 MAX.
(26.42)
1.495 MAX.
(37.97)
.585 ± .005
(14.86 ± .13)
1.618 ± .020
(41.10 ± .51)
.309 ± .005
(7.85 ± .13)
2.05 MAX.
(52.07)
2.345 ± .005
(59.56 ± .13)
.585 ± .005
(14.86 ± .13)
1.618 TYP.
(41.10 ± .51)
.309 ± .005
(7.85 ± .13)
.090 RAD.
(2.29)
FOR #8 SCREW
.630 ± .005
(16.00 ± .13)
1.000 ± .010
(25.40 ± .25)
.630 TYP.
(16.00)
2
02-2020, Rev. 0220
www.te.com
© 2012 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.
Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Catalog product data, ‘Definitions’ section,
application notes and all specifications are
subject to change.
General Purpose
High Power PCB Relays
Potter & Brumfield
T92 Series Two-pole 30A PCB or Panel Mount Relay
(Continued)
Dimensions
T92 – Mounting and termination code 5
2.700 MAX.
(68.58)
Terminal assignment
Bottom view on pins
2 form A
2 form C
0
1.36 MAX.
(34.54)
.090 (2.29)
RAD. FOR
#8 SCREW
2.345 ± .005
(59.56 ± .13)
2.135 MAX.
(54.23)
0
2
6
4
3
2
6
4
8
1
8 7
1
1.431 MAX.
(36.34)
PCB layout
Bottom view on pins
T92 - Mounting and termination code 1
2.010 MAX.
(51.05)
.913 MAX.
(23.19)
.309
(7.85)
.365
(9.27)
.630
(16.00)
.585
(14.86)
1.618
(41.10)
.185
(4.70)
1.000
(25.40)
.203 TYP.
(5.16)
.162
(4.12)
.052 TYP.
(1.32)
.072 TYP.
(1.83)
An alternate PC board layout utilizes .076 ± .003 (1.93 ± .076) diameter holes on the same
center-to-center spacing shown above. Use of the rectangular holes is recommended for
improved solderability.
Only necessary terminals are present on single throw models. Consequently, some holes
will be unnecessary for single throw models.
Product code structure
Type
T92
Enclosure
P
S
Printed circuit board / panel mount power relay T92
Typical product code
T92
S
11
D
2
2
-24
-99
Dust protected plastic case
Wash-tight, tape sealed, plastic case (Mounting and termination code 1)
Wash-tight, glue sealed, plastic case (Mounting and termination code 1, 2 for anti-explosion version)
Top sealed, not wash-tight, not tape sealed on bottom (Mounting and termination codes 2, 3 & 4)
Contact arrangement
7
2 form A (2 NO)
11
2 form C (2 CO)
Coil Input
A
AC voltage, 60Hz or 50/60 Hz (consult coil versions table)
D
DC voltage
F
AC voltage, 50Hz
Mounting and termination
1
Printed circuit board mount; printed circuit board terminals.
2
Panel mount via flanged cover; .250” (6.35mm) x .032” (.81mm) QC terminal
3
Panel mount via flanged cover; .187” (4.75mm) x .032” (.81mm) QC terminals for coil and .250” (6.35mm) for contacts
4
Panel mount via flanged cover, .187” (4.75mm) x .020” (.51mm) QC terminals for coil and .250” (6.35mm) for contacts.
5
Panel mount via flanged cover, M4 screws w/ captive pressure plates. Requires Enclosure P and Contact arrangement 7.
Contact material
2
AgCdO
4
AgSnOInO
X
Special Ag Alloy X (Cd Free)
Coil voltage
Coil code: please refer to coil versions table
Customer code
-99
Anti-explosion
-00
WG version
02-2020, Rev. 0220
www.te.com
© 2012 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.
Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Catalog product data, ‘Definitions’ section,
application notes and all specifications are
subject to change.
3
General Purpose
High Power PCB Relays
Potter & Brumfield
T92 Series Two-pole 30A PCB or Panel Mount Relay
(Continued)
Product Code
T92P7A22-24
T92P7A22-120
T92P7A22-240
T92P7A22-277
T92P7A24-240
T92P7A52-120
T92P7A52-240
T92P7D12-12
T92P7D12-24
T92P7D22-12
T92P7D22-24
T92P7D22-48
T92P7D24-12
T92P7D24-24
T92P7D42-24
T92P7D52-12
T92P7D52-24
T92P11A12-120
T92P11A22-12
T92P11A22-24
T92P11A22-120
T92P11A22-240
T92P11A22-277
T92P11A24-240
T92P11A42-120
T92P11D12-12
T92P11D22-12
T92P11D22-24
T92P11D24-12
T92P11D24-24
T92S7A12-24
T92S7A12-120
T92S7A12-240
T92S7A22-24
T92S7A22-120
T92S7A22-240
T92S7D12-12
T92S7D12-24
T92S7D12-48
T92S7D12-110
T92S7D14-24
T92S7D22-12
T92S7D22-18
T92S7D22-24
T92S7D22-110
T92S11A12-24
T92S11A12-120
T92S11A12-240
T92S11A22-12
T92S11A22-24
T92S11A22-120
T92S11A22-240
T92S11D12-12
T92S11D12-24
T92S11D12-48
T92S11D12-110
T92S11D22-12
T92S11D22-24
T92P7D12-12-99
T92S7D1X-12-99
T92S7D2X-12-99
T92S7A22-240-00
T92S7D12-12-00
Enclosure
Plastic dust cover
Contacts
2 form A, 2 NO
Coil
AC
Mounting
Panel mount + quick connect
Contact Material
AgCdO
Coil
24 VAC
120 VAC
240 VAC
277 VAC
240 VAC
120 VAC
240 VAC
12 VDC
24 VDC
12VDC
24 VDC
48 VDC
12VDC
24 VDC
12 VDC
24 VDC
120 VAC
12 VAC
24 VAC
120 VAC
240 VAC
277 VAC
240 VAC
120VAC
12 VDC
24 VDC
12 VDC
24 VDC
24 VAC
120 VAC
240 VAC
24 VAC
120 VAC
240 VAC
12 VDC
24 VDC
48 VDC
110 VDC
24 VDC
12 VDC
18 VDC
24 VDC
110 VDC
24 VAC
120 VAC
240 VAC
12 VAC
24 VAC
120 VAC
240 VAC
12 VDC
24 VDC
48 VDC
110 VDC
12 VDC
24 VDC
12VDC
12VDC
12VDC
240VAC
12VDC
Part Number
6-1393211-0
5-1393211-7
6-1393211-2
6-1393211-3
3-1423008-3
1423008-8
1-1423008-2
6-1393211-5
6-1393211-6
6-1393211-9
7-1393211-1
7-1393211-2
2-1423008-2
1423008-9
7-1393211-5
1-1423008-0
1423967-1
3-1393211-8
3-1393211-9
4-1393211-3
4-1393211-0
4-1393211-4
4-1393211-6
3-1423008-7
4-1393211-8
5-1393211-0
5-1393211-3
5-1393211-4
3-1423008-5
3-1423008-6
9-1393211-8
9-1393211-7
9-1393211-9
1393212-4
1393212-2
1393212-5
1393212-8
1-1393212-0
1-1393212-1
1393212-7
1-1423008-8
1-1393212-4
1-1393212-5
1-1393212-7
1-1393212-3
8-1393211-1
8-1393211-0
8-1393211-2
8-1393211-3
8-1393211-6
8-1393211-4
8-1393211-7
8-1393211-9
9-1393211-0
9-1393211-1
8-1393211-8
9-1393211-3
9-1393211-4
2-2071223-3
6-1423008-1
6-1423008-2
2-2071223-4
1-2071223-7
Panel mount + screw terminals
DC
PCB terminals
Panel mount + quick connect
AgSnOInO
AgCdO
AgSnOInO
AgCdO
Panel mount + screw terminals
2 form C, 2 CO
AC
PCB terminals
Panel mount + quick connect
AgSnOInO
AgCdO
DC
PCB terminals
Panel mount + quick connect
AgSnOInO
Wash tight
2 form A, 2 NO
AC
PCB terminals
AgCdO
Top sealed
Panel mount + quick connect
Wash tight
DC
PCB terminals
Top sealed
Panel mount + quick connect
AgSnOInO
AgCdO
Wash tight
2 form C, 2 CO
AC
PCB terminals
Top sealed
Panel mount + quick connect
Wash tight
DC
PCB terminals
Top sealed
Plastic dust cover
Wash tight
Top Sealed(WG)
Wash tight (WG)
2 form A, 2 NO
DC
Panel mount + quick connect
PCB terminals
Panel mount + quick connect
AC
DC
PCB terminals
AgCdO
Special Ag Alloy
X (Cd Free)
AgCdO
Note. This list represents the most common types and does not show all variants covered by this datasheet, other types on request.
4
02-2020, Rev. 0220
www.te.com
© 2012 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.
Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Catalog product data, ‘Definitions’ section,
application notes and all specifications are
subject to change.
京公网安备 11010802033920号
EEWORLD
