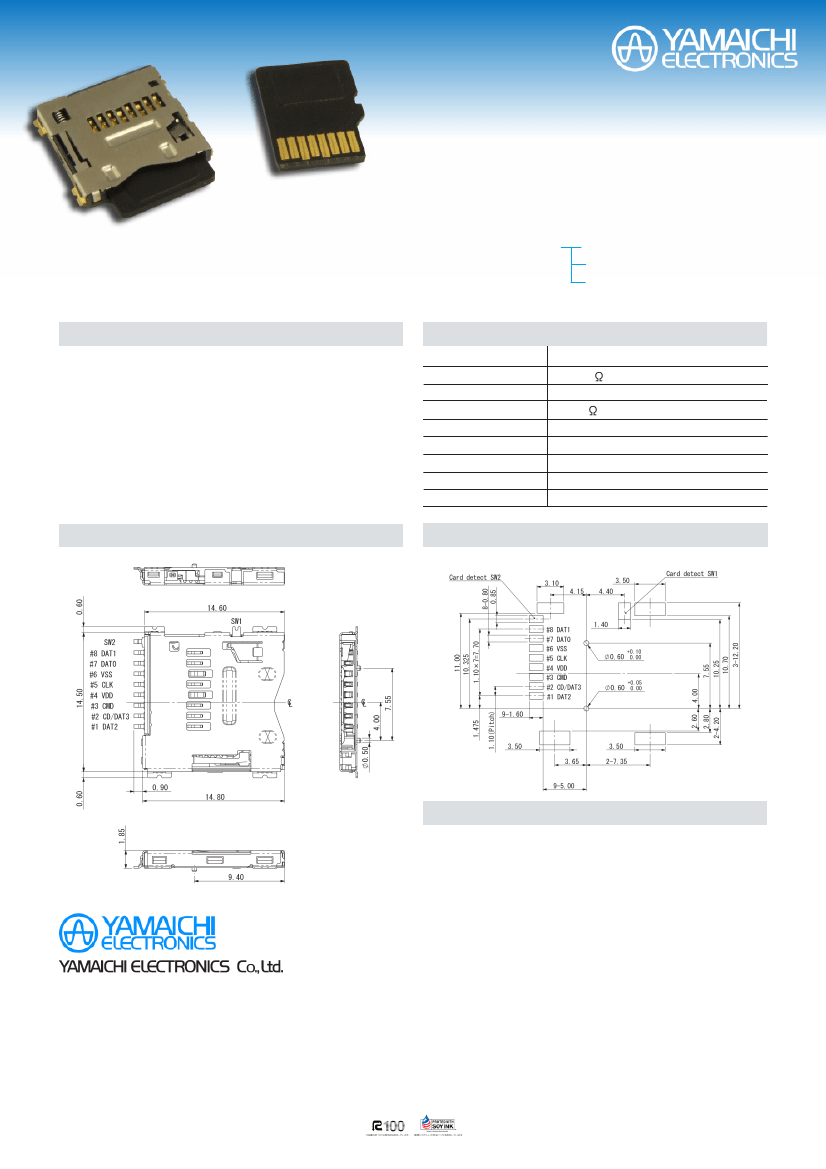

microSD™ Card Connector
PJS008-2000-*
Yamaichi PJS008 can minimize all your applications with its
smaller and low profile design!
Brake mechanism prevents losing card during push-push ejection!
Features
• Reverse mount (bottom mount)
• Push lock/push eject mechanism
• Card detect switch
• Mis-insertion prevention
• Card jump out brake
• RoHS compliant
• Suitable for Lead-free soldering
• Tape and reel packing
Packing quantity: 1,000 pcs/reel
0: Without positioning pins
1: With positioning pins
Specifications (Reference values)
Item
Insulation resistance
Withstanding voltage
Contact resistance
Rated voltage
Rated current
Durability
Weight
Operating temperature
Performance
>1000M
<100m
0.5A
10,000 insertion/extraction cycles
0.49g
-25°C to +85°C
at 250VDC
at 1mA/20mV
250VAC rms 1 min.
5VAC rms
Outline dimension
Recommended foot pattern dimension
Tolerances ±0.05 unless otherwise specified
Unit: mm
Material & Plating
• Insulator material: Liquid Crystal Polymer (LCP)
• Contact material: Cu Alloy
• Contact plating:
Contact area: Au over Ni
Solder tails: Au over Ni
YAMAICHI ELECTRONICS U.S.A., INC.
2235 Zanker Rd., San Jose, CA 95131,
U.S.A.
TEL: +1 (408) 456-0797 FAX: +1 (408) 456-0799 URL: http://www.yamaichi.us
YAMAICHI ELECTRONICS DEUTSCHLAND GmbH
Karl-Schmid-Strasse 9, 81829 Munich,
Germany
TEL: +49-89-45109-0 FAX: +49-89-45109-110 URL: http://www.yamaichi.de
YAMAICHI ELECTRONICS HONG KONG LTD.
Unit 713 Tower 2 Grand Central Plaza, 138 Shatin Rural Committee Rd, Shatin, N.T.,
Hong Kong
Tel: +852-2687-1968 Fax: +852-2601-9681 URL: http://www.yamaichi.com.cn
ASIA YAMAICHI ELECTRONICS INC.
405, Kyungin Bldg. 166-3, Samseong-Dong, Gangnam-Gu, Seoul 135-090,
Korea
Tel: +82-2-557-0522 Fax: +82-2-557-0622
YAMAICHI ELECTRONICS SINGAPORE PTE LTD.
51 Cuppage Road, #04-01/02 Starhub Centre, 229469
Singapore
Tel: +65-6734-0060 Fax: +65-6735-5567
YAMAICHI ELECTRONICS TAIWAN CO., LTD.
Rm 1021, No.144, Min Chuan E. Road, Sec 3, Taipei 105,
Taiwan
Tel: +886-2-2546-0507 Fax: +886-2-2546-0509
Unit: mm
3-28-7 Nakamagome, Ohta-ku, Tokyo 143-8515, Japan
TEL: +81-3-3778-6170 FAX: +81-3-3778-6177
URL: http://www.yamaichi.com
Specifications in this document are reference values for representative products
of each series and may change without prior notice. Since product improvement
entails changes to electrical, material and mechanical properties, the purchasing
party is strongly encouraged to inquire about the latest specifications before
placing a purchase order. All other service, product and company names mentioned
herein are the trademarks or registered trademarks of their respective owners.
©2006 Yamaichi Electronics Co., Ltd.
June 2006
Rev. 0 1000
