EV32C3A5A1-3.686MTR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EV32C3A5A1-3.686MTR

EV32C3A5A1-3.686MTR: DescriptionVCXO, CLOCK, 3.686MHz, HCMOS/TTL OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 6 PIN; CategoryPassive components oscillator; File Size107KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EV32C3A5A1-3.686MTR Overview

VCXO, CLOCK, 3.686MHz, HCMOS/TTL OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 6 PIN

EV32C3A5A1-3.686MTR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	DILCC6,.2
Reach Compliance Code	compliant
Is Samacsys	N
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
Maximum control voltage	3 V
Minimum control voltage	0.3 V
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	50%
JESD-609 code	e4
linearity	20%
Manufacturer's serial number	EV32C3
Installation features	SURFACE MOUNT
Number of terminals	6
Maximum operating frequency	35.328 MHz
Minimum operating frequency	1.544 MHz
Nominal operating frequency	3.686 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS/TTL
Output load	10 TTL, 30 pF
Maximum output low current	4 mA
Package body material	CERAMIC
Encapsulate equivalent code	DILCC6,.2
physical size	7.0mm x 5.0mm x 1.65mm
power supply	3.3 V
Certification status	Not Qualified
longest rise time	5 ns
Maximum slew rate	15 mA
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	Nickel/Gold (Ni/Au)
Base Number Matches	1

Preview

Download Datasheet

View All

EV32C3

Series

• RoHS Compliant (Pb-Free)

• Voltage Controlled Crystal Oscillator (VCXO)

• 3.3V Supply Voltage

• HCMOS output with Tri-State function

• Ceramic 6-pad SMD package

• APR Performance to ±100ppm

• Commercial and Industrial Temperature Range

ELECTRICAL SPECIFICATIONS

EV32C3

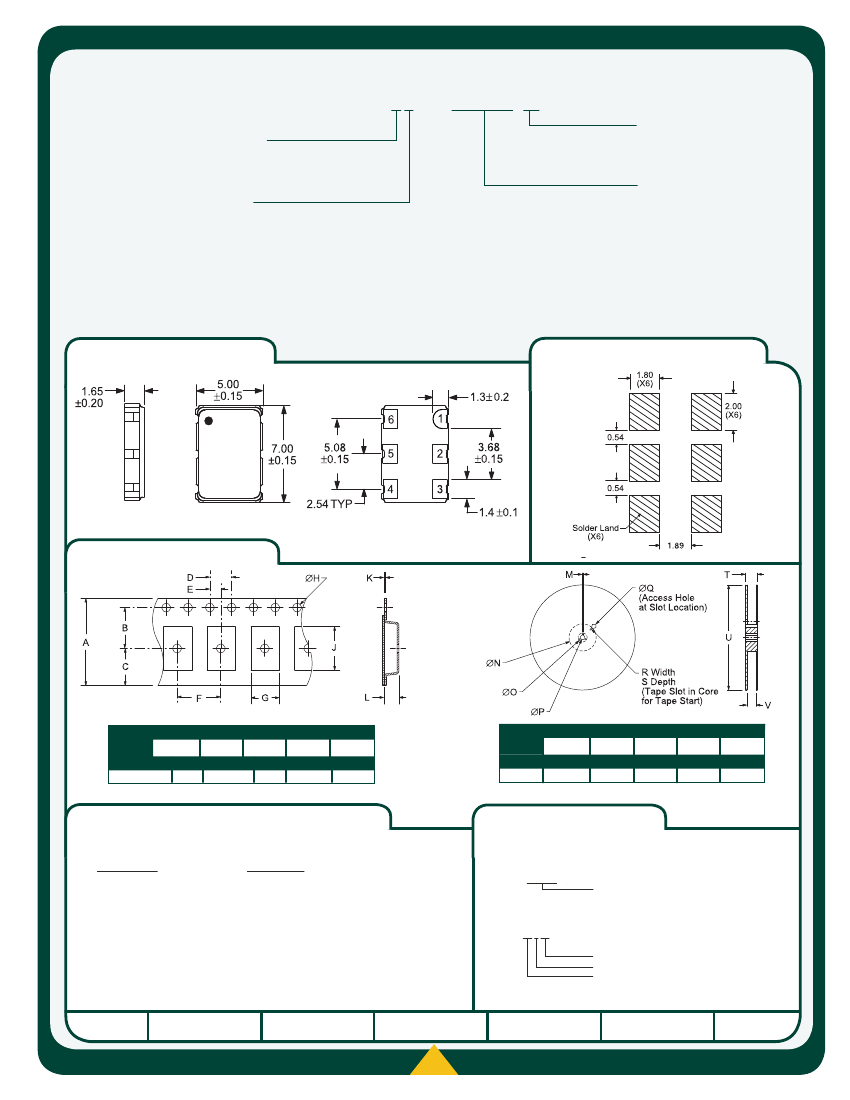

1.65

7.0

5.0

OSCILLATOR

1.544MHz, 2.000MHz, 2.048MHz, 3.088MHz, 3.580MHz, 3.686MHz, 4.000MHz, 4.032MHz, 4.096MHz, 4.434MHz,

5.000MHz, 6.144MHz, 6.176MHz, 6.312MHz, 6.400MHz, 8.000MHz, 8.192MHz, 8.448MHz, 10.000MHz,

12.000MHz, 12.288MHz, 12.352MHz, 12.960MHz, 13.000MHz, 13.500MHz, 14.318MHz, 15.360MHz, 15.440MHz,

16.000MHz, 16.384MHz, 16.660MHz, 17.664MHz, 18.432MHz, 19.200MHz, 19.440MHz, 20.000MHz, 20.480MHz,

24.000MHz, 24.576MHz, 24.704MHz, 25.920MHz, 26.000MHz, 27.000MHz, 28.636MHz, 30.000MHz, 30.720MHz,

32.000MHz, 32.768MHz, 34.368MHz, 35.328MHz, 36.864MHz, 38.880MHz, 40.000MHz, 40.960MHz, 44.736MHz,

49.152MHz, 50.000MHz, 51.840MHz, 52.000MHz, 62.208MHz, 65.536MHz, 74.250MHz, 77.760MHz

Operating Temperature Range (OTR)

0°C to 70°C or -40°C to 85°C

Storage Temperature Range (STR)

-55°C to 125°C

Supply Voltage (V

)

3.3V

±10%

Input Current (I

)

15mA Maximum

Frequency Tolerance/Stability

Inclusive of All Conditions: Calibration Tolerance at 25°C,

±50ppm Maximum

Frequency Stability over the Operating Temperature Range, Supply

Voltage Change, Output Load Change, Shock, and Vibration

Output Voltage Logic High (V

)

= -4mA

90% of V

Minimum

Output Voltage Logic Low (V

)

= +4mA

10% of V

Maximum

Rise Time / Fall Time (T

)

20% to 80% of Waveform

5 nSeconds Maximum

Duty Cycle (SYM)

at 50% of Waveform

50 ±5(%) Typical, 50 ±10(%) Maximum

Load Drive Capability (C

LOAD

)

< 12.288MHz

10TTL Load or 30pF HCMOS Load Maximum

> 12.288MHz

15pF HCMOS Load Maximum

Aging (at 25°C)

±2ppm/1st year typical, ±10ppm /10 years Max.

Start Up Time (T

)

10 mSeconds Maximum

Tri-State Input Voltage

: No Connection

Enables Output

: >0.9V

Enables Output

: <0.1V

Disables Output: High Impedance

RMS Phase Jitter

=12kHz to 20MHz

1pSec Maximum

Absolute Pull Range (APR)

Inclusive of All Conditions: Calibration Tolerance at 25°C,

±50ppm Minimum

Frequency Stability over the Operating Temperature Range, Supply ±80ppm Minimum < 51.840MHz only

Voltage Change, Output Load Change, Shock, Vibration, and Aging ±100ppm Minimum < 36.000MHz only

over Control Voltage (V

)

Linearity

10% Typical, 20% Maximum

Control Voltage (V

): Test Conditions for APR

0.3V

to 3.0V

Control Voltage Range (V

)

0.0V

to V

Transfer Function

Positive Transfer Characteristic

Input Impedance (Z

)

50kOhms Minimum

Input Leakage Current

10µA Maximum

Modulation Bandwidth (MBW)

-3dB, V

= 1.65V

10kHz Minimum

Typical Phase Noise (Fo = 27.000MHz)

At offset of 10Hz

-70dBc/Hz

At offset of 100Hz

-100dBc/Hz

At offset of 1kHz

-130dBc/Hz

-147dBc/Hz

At offset of 10kHz

At offset of 100kHz

-152dBc/Hz

Frequency Range (F

)
