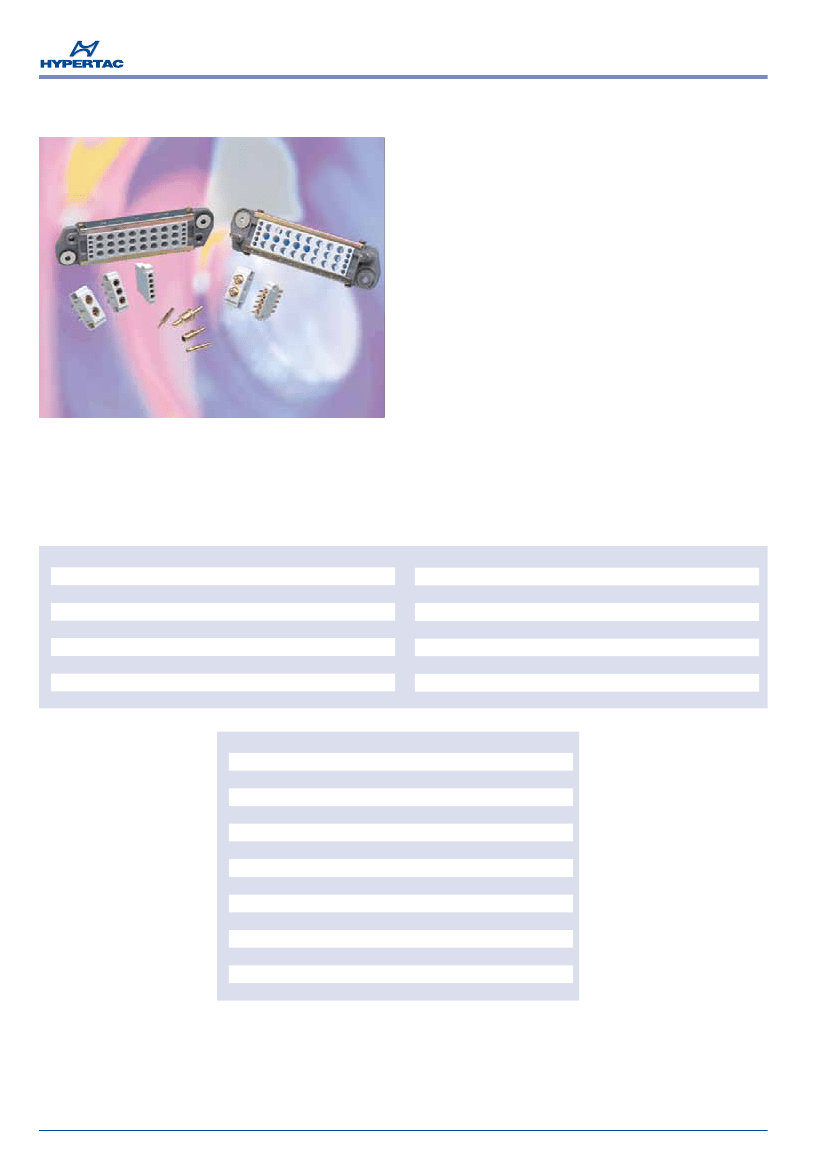

LHS Series
Rack & Panel Blind Mating
Modular Connectors
•
Railway flat floating connector
•
Modularity mixed power, signal & coaxial contacts.
•
Up to 70 signal contacts.
•
Guiding pins.
•
Rack/Panel applications (norm XPF61-005)
•
One size only: 14 units (5.5mm)
•
In compliance with NF F 61-032, SNCF norm
approved.
Technical Characteristics
MATERIALS AND PLATINGS
Frame
Side flange
Insulator
Pin & socket body
Socket wires
Pin
Floating eyelets
Soft Steel (Zinc coated)
Polycarbonate
Polycarbonate
Brass, Au/Ni
Copper alloy, Au/Ni
Au/Ni
Brass (Ni plated)
ENVIRONMENTAL
Temperature range
Fire classification
Salt spray test
Acid withstanding
Vibration Withstanding
Insulator mechanical resistance
Max torque for auto threading screws
- 40 °C to 100 °C
Exigence 2 following NF F 16-102
96 hours
Following NF F 61-032 par. 11.4.6
5 g /25 to 250 Hz
1000 N
75 Ncm
ELECTRICAL CHARACTERISTICS
Contact Ø
Creepage distance
Clearance distance
Working current
Insulation resistance
Contact resistance
#
2.50 m
Ø 1.50
1.85 mm
1.25 mm
8A
Ø 2.50
2.25 mm
3.40 mm
16 A
∃
5.103 M
#
1.00 m
2000 Vrms
Ø 2.50
220 V
50 N
2.90 g
1.60 g
9.00N
#
0.80 m
3000 Vrms
Ø 3.50
220 V
70 N
4.90 g
2.70 g
10.00N
Ø 3.50
4.05 mm
5.40 mm
25 A
Dielectric withstanding voltage
1500 Vrms
Contact Ø
Voltage rating
Ø 1.50
110 V
Contact holding back in the module
40 N
Maxi male contact mass
Maxi female contact mass
IF/SF* (Max value)
1.10 g
0.70 g
1.60N
*IF/SF: Insertion and separation force according to NF F 61-032
APRIL
2005
263
LHS Series
Ordering Information
L H S
SERIES
MODEL
S
MARKED FRAME*
---
--
-- 14
LAYOUT(consult the facyory)
Always
receptacle P/N to use
Layouts included L/RH
Normalized
Other
Layouts included L/ZH
Normalized
Other
302 320
301
to
3--
102 104 108 120 130 147
101
to
1--
Ex. : 102
PART - POLARITY
01
02
Plug delivered without contact
Receptacle delivered without contact
11** Male plug delivered with contacts
20** Female receptacle delivered with contacts
TERMINATION STYLES
00
20
30
14
Wthout contact
Crimp termination
Straight termination
51
56
62
Wire wrap 0.6
Wire wrap 1
Post termination
PITCH NUMBER
* Only normalized layouts are marked with NF N 61-032
** Only for non normalized layouts
264
APRIL
2005

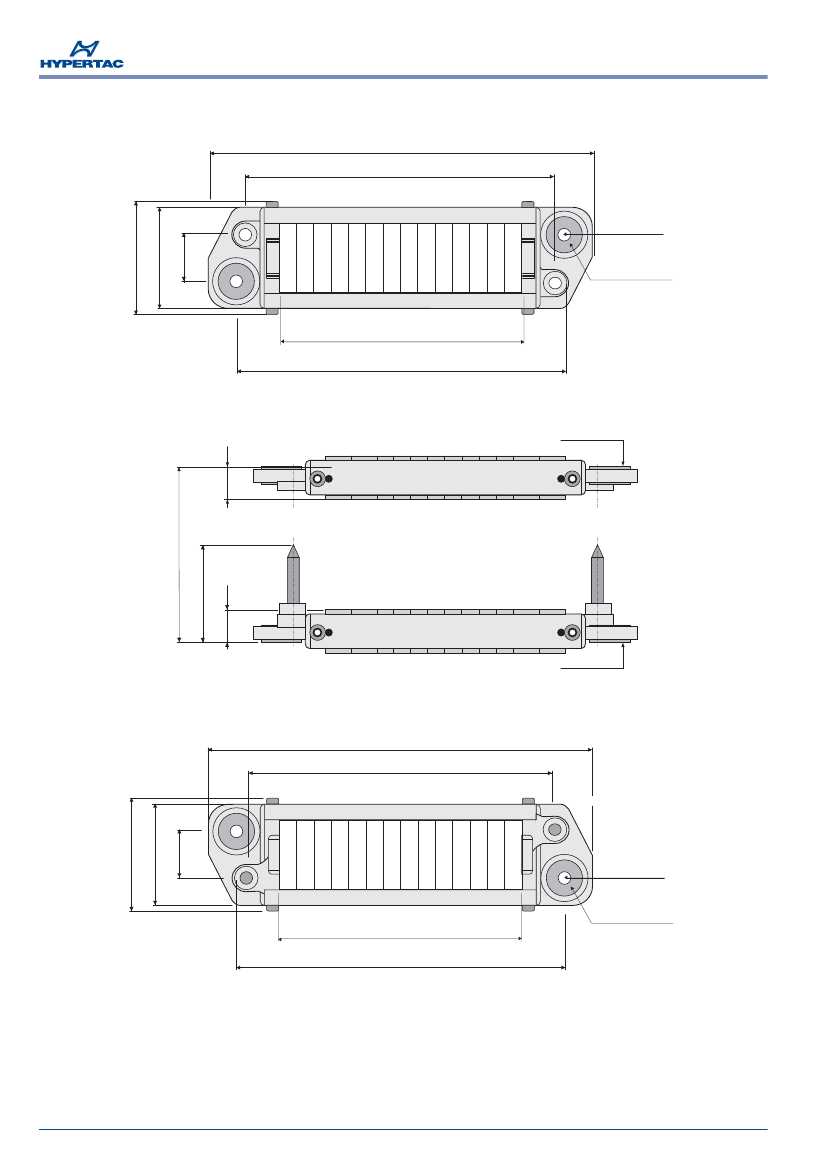

LHS Series

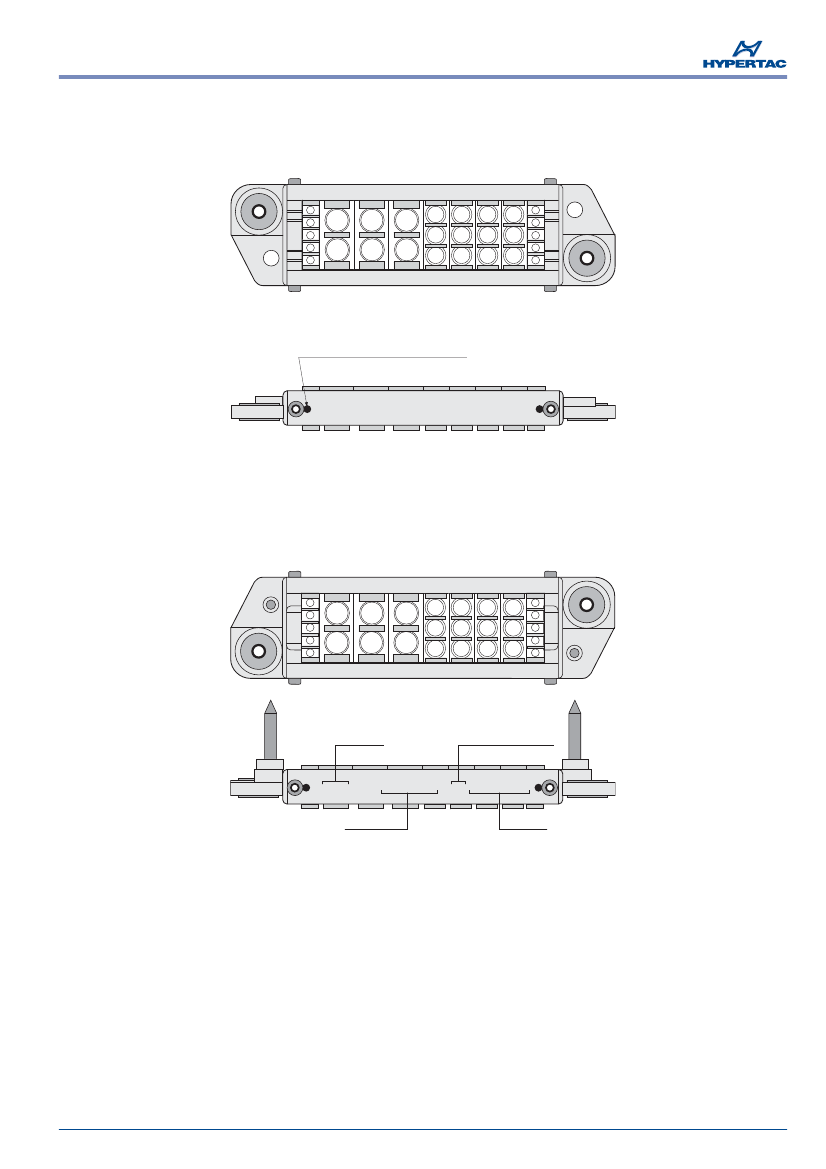

Mounting example with L/RHA, L/SH, L/UH, L/VM and L/VF modules
Receptacle cabling side view
5
4
3
2
1
1
1
1
2
2
2
3
2
1
3
2
1
3
2
1
3
2
1
5
4
3
2
1
G
C
D
H
H
1
2
3
A
B
E
F
Inviolability sealing (drop of painting)
Plug cabling side view
G
C
D
A
B
E
F
1
2
3
4
5
2
2
2
1
1
1
1
2
3
1
2
3
1
2
3
Code date
Layout identification*
01 43
HYPERTAC
04 NF F 61-032
Manufacturer
Standard*
Dimensions are in mm
266
J
1
2
3
4
5
J
APRIL
2005
