NOTES:
1. PACKAGE CABLE ASSEMBLY IN BAG. TAG IN BAG WITH "AMPHENOL CONNEX,
115101-04-XX.XX AND DATE CODE".
115101-04-XX.XX
DRAWING NO.
THIRD ANGLE PROJ.
REV
DESCRIPTION
REVISIONS
DATE
ECO
APPR
A
RELEASE TO MFG.
11-Nov-10
--
KR
2. CABLE ASSEMBLY TO BE 100% TESTED FOR HI-POT,CONTINUITY,SHORTS AND OPEN.
SCALE
0.500
LENGTH XX.XX (SEE TABLE)
1 TYP(2)
2
3 TYP(2)
LENGTH TABLE
PART NUMBER
115101-04-06.00
115101-04-12.00
115101-04-18.00
115101-04-24.00
115101-04-36.00
115101-04-48.00
LENGTH INCHES (X)
6.00
12.00
18.00
24.00
36.00
48.00
DESIGN REQUIREMENTS:
FREQUENCY____________ TO ________________ GHz
VSWR ____________ : 1 MAX
INS. LOSS ____________ dB MAX
* ADDITIONAL LENGTH CAN BE PROVIDED
BY CHANGING XX.XX TO DESIRED LEGNTH IN INCHES
CONTACT CONNEX MARKETING FOR QUOTE
X
CONTINUITY
X
HI-POT : 1000 VRMS
OTHER
60015-000
009-881-337
112116
PART NUMBER
A/R
A/R
2
QTY
3
2
1
ITEM
STRAIN RELIEF BOOT
RG 58 CO-AXIAL CABLE
BNC STR CRIMP PLUG
DESCRIPTION
FINISH
BLACK
UNLESS OTHERWISE SPECIFIED, DIMENSIO
NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#
.015 (0,381 mm)
#
.005 (0,127 mm)
#1 $
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
MATERIAL
DRAWN
DATE
TITLE
KARTHIK R
ENGINEER
REFERENCE
11-Nov-10
DATE
KARTHIK R
APPROVED
11-Nov-10
DATE
TASK - 473
CAD FILE

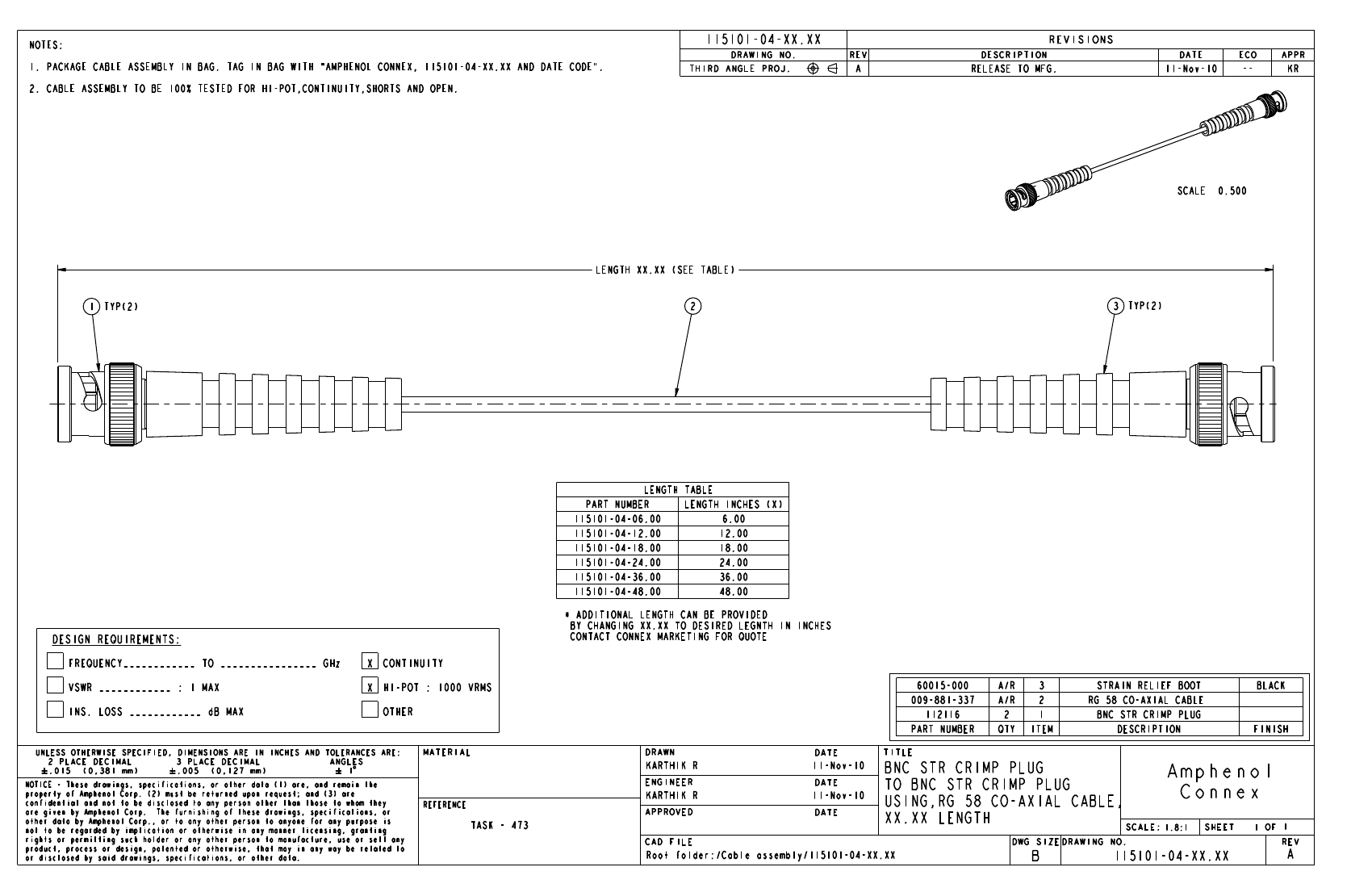

BNC STR CRIMP PLUG
TO BNC STR CRIMP PLUG
USING,RG 58 CO-AXIAL CABLE,
XX.XX LENGTH
DWG SIZE
DRAWING NO.
Amphenol
Connex
SCALE:
1.8:1
SHEET
OF
1
1
REV
Root folder:/Cable assembly/115101-04-XX.XX
B
115101-04-XX.XX
A
