0876301004 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0876301004

0876301004: DescriptionCard Edge Connector, 100 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size30KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0876301004 Overview

Card Edge Connector, 100 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT

0876301004 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Is Samacsys	N
Other features	POLARIZED
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	TIN (100)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	87630
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	100
Base Number Matches	1

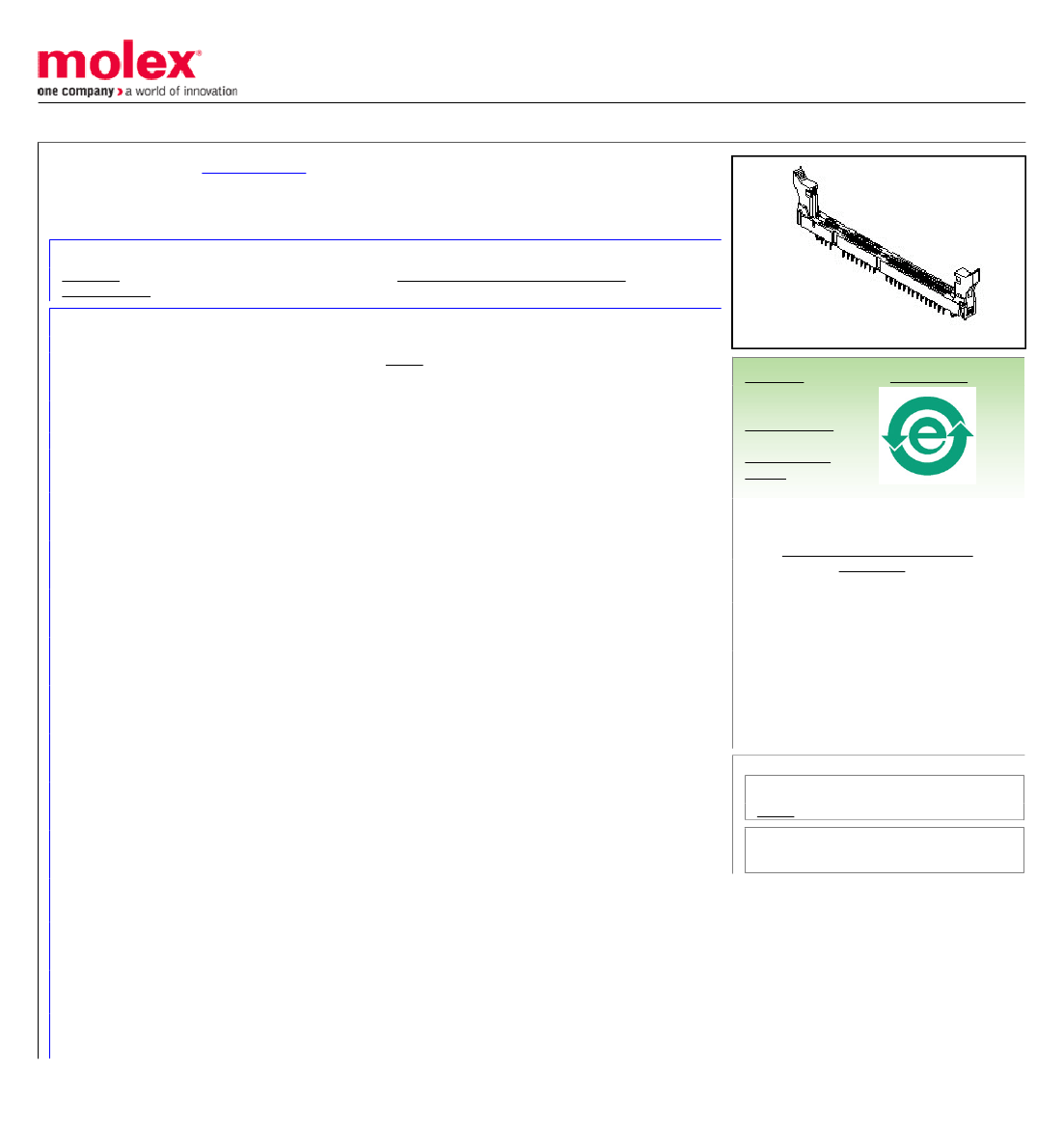

Preview

Download Datasheet

View All

This document was generated on 11/04/2009

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0876301004

Active

1.27mm (.050") Pitch DIMM 4-Byte Socket, Vertical, Multi-Key, 2.5V Right Voltage Key,

with Plastic Pegs, 0.76µm (30µ") Gold (Au) Plating, 100 Circuits, Leadfree, Tray

Documents:

3D Model

Drawing (PDF)

General

Product Family

Series

Comments

Component Type

JEDEC Outline

Product Name

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Entry Angle

Function Key

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum

Voltage - Maximum

Voltage Key

Material Info

Reference - Drawing Numbers

Sales Drawing

RoHS Certificate of Compliance (PDF)

Memory Module Sockets

87630

<LI>2.5V Right Voltage Key|<LI>Latches in Beige

Colour

Memory Module

MO-161

DIMM

100

Black

Natural

Vertical (Top Entry)

Offset Right

Yes

Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

0.127 In

3.23 mm

Yes

0.062 In

1.60 mm

Tray

0.050 In

1.27 mm

0.75

100

2.5

-10°C to +85°C

Through Hole

50V

2.5V

Right

Series image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

Duration at Max.

Process Temperature

(seconds)

Lead-free Process

Capability

Max. Cycles at Max.

Process Temperature

max. C

SMC & Wave Capable

(TH only)

240

Search Parts in this Series

87630 Series

Mates With

JEDEC MO-161 modules

SD-87630-006
