All numerical values are in metric units [with U.S. customary units in brackets]. Dimensions are in millimeters [and
inches]. Unless otherwise specified, dimensions have a tolerance of +0.13 [+.005] and angles have a tolerance of +2_.
Figures and illustrations are for identification only and are not drawn to scale.
1. INTRODUCTION
This specification covers the requirements for application of SMB connectors. The connectors are available in
50- ohm and 75- ohm straight cable plug, 50-
-
-
-ohm straight cable jack, 50-
-ohm right- angle reverse polarity
-
cable plug, and 50- ohm bulkhead jack for wire- to-
-
- -wire applications. The bulkhead jack is designed to be panel
mounted. The connectors consist of a body, contact, and ferrule. The body of the right-
-angle cable plug
features an inner ferrule. The right- angle cable plug also includes an end cap to seal the solder slot of the
-
body, and the bulkhead jack also includes a jam nut and lockwasher for mounting onto the panel.
NOTE
A housing and clip are available to be assembled onto the straight cable jack. The housing (assembles onto the jack
body) provides an additional locking mechanism for the mating connector, and the clip (assembles onto the housing) is
used to attach other cable for ease in routing assemblies.
i
When assembled, the contact and ferrule of the straight cable connector and bulkhead jack are crimped onto
the cable. For the right-
-angle cable plug, the contact is soldered, and the ferrule is crimped onto the cable.
These requirements are applicable to hand application tooling.
When corresponding with personnel, use the terminology provided in this specification to facilitate your
inquiries for information. Basic terms and features of this product are provided in Figure 1.

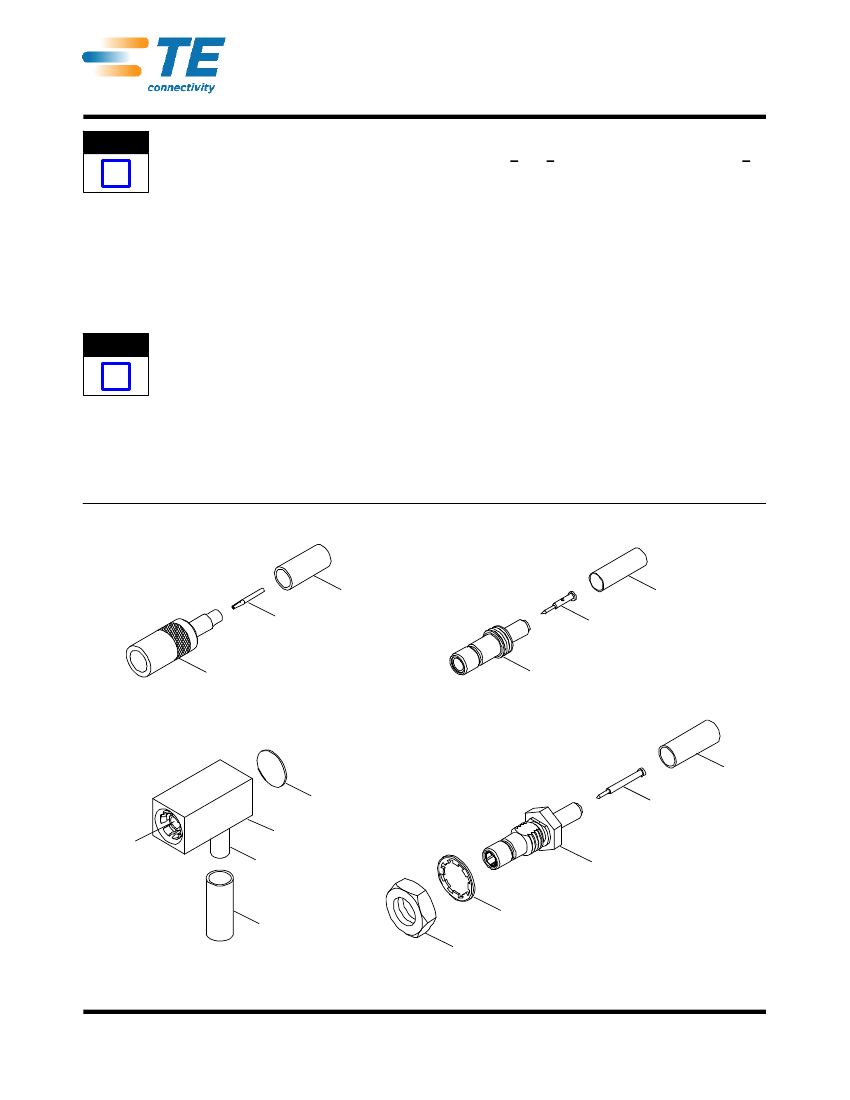

Straight Cable Plug
Straight Cable Jack
Ferrule
Contact
Contact
Jack Body
Bulkhead Jack
Ferrule
Plug Body
Right- Angle Reverse Polarity Cable Plug
Ferrule
End Cap
Contact
Plug Body
Inner Ferrule
Lockwasher
Jam Nut
Figure 1
E2011
Tyco Electronics Corporation, a TE Connectivity Ltd. Company
All Rights Reserved
*Trademark
TOOLING ASSISTANCE CENTER 1- 800- 722- 1111
- - -
PRODUCT INFORMATION 1- 800- 522- 6752
- - -
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at
www.te.com
Contact
Jack Body
Ferrule
1
of 9
LOC B
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or Company names may be trademarks of their respective owners.
114-- 13024
2. REFERENCE MATERIAL
2.1. Revision Summary
Revisions to this application specification include:
S
Changed company name and logo
S
Changed reference part number and product code in Paragraph 2.2
2.2. Customer Assistance
Reference Product Part Number 414946 and Product Code M264 are representative of SMB connectors. Use
of these numbers will identify the product line and expedite your inquiries through a service network
established to help you obtain product and tooling information. Such information can be obtained through a
local Representative or, after purchase, by calling PRODUCT INFORMATION at the number at the bottom of
page 1.
2.3. Drawings
Customer Drawings for product part numbers are available from the service network. If there is a conflict
between the information contained in the Customer Drawings and this specification or with any other technical
documentation supplied, call PRODUCT INFORMATION at the number at the bottom of page 1.
2.4. Manuals
Manual 402- 40 can be used as a guide to soldering. This manual provides information on various flux types
-
and characteristics with the commercial designation and flux removal procedures. A checklist is included in the
manual as a guide for information on soldering problems.
2.5. Specifications
Product Specification 108- 1401 provides product performance and test information.
-
2.6. Instructional Material
Instruction Sheets (408-
-series) provide product assembly instructions or tooling setup and operation
procedures. Documents available which pertain to this product are:
