1470790-9: DescriptionCONNECTOR, 9 CONTACT(S), MALE, RIGHT ANGLE FFC/FPC CONNECTOR, SOLDER, LEAD FREE; CategoryThe connector The connector; File Size51KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

1470790-9 Overview

CONNECTOR, 9 CONTACT(S), MALE, RIGHT ANGLE FFC/FPC CONNECTOR, SOLDER, LEAD FREE

1470790-9 Parametric

Parameter Name	Attribute value
package instruction	LEAD FREE
Reach Compliance Code	unknown
Is Samacsys	N
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

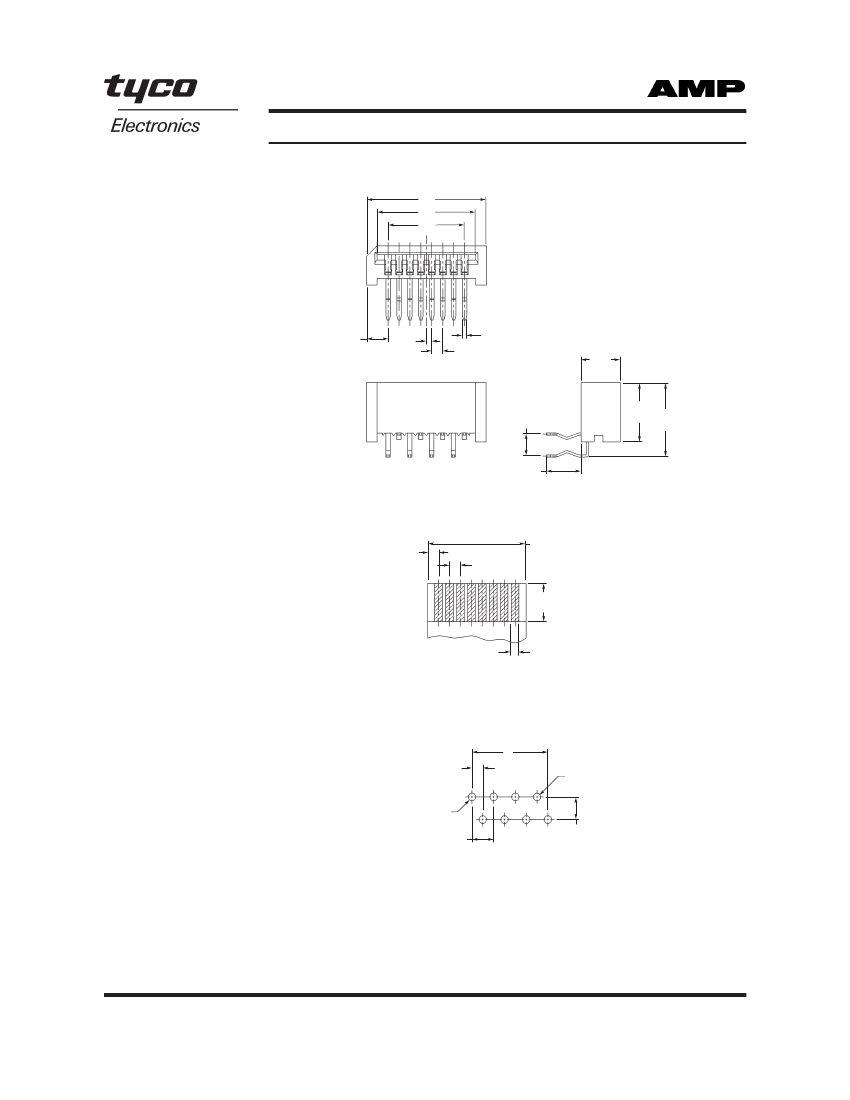

FPC Connector Family

Product Dimensions

(Continued)

1.0 mm, FPC Connector,

Non-ZIF, Right-Angle,

Bottom Contact, Type B

Part Number

Lead Free

1470790

1734779

C

B

A

Material and Finish

Housing

— Thermoplastic, UL 94V-O,

black color

Contacts

— Phosphor bronze

2.00

[.079]

0.50

[.020]

1.00

[.039]

0.40

[.016]

3.60

[.142]

Technical Documents

Product Specification

— 108-57354

2.00

[.079]

5.40

[.213]

6.80

[.268]

3.20

Typ.

[.126]

1.00

[.039]

(No. of Contacts + 1)

✕

1.00

Typ.

[.039]

3.50

Min.

[.138]

1.00

[.039]

0.70

Typ.

[.028]

Recommended FPC Layout

A

1.00

Typ.

[.039]

Ø 0.70

Typ.

[.028]

Circuit No. 1

2.00

[.079]

2.00

[.079]

Recommended PCB Layout

24

Catalog 1-1773440-6

Revised 05-06

www.tycoelectronics.com

Dimensions are in millimeters

and inches unless otherwise

specified. Values in brackets

are standard equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-5-729-0425

South America: 55-11-3611-1514

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-141-810-8967
