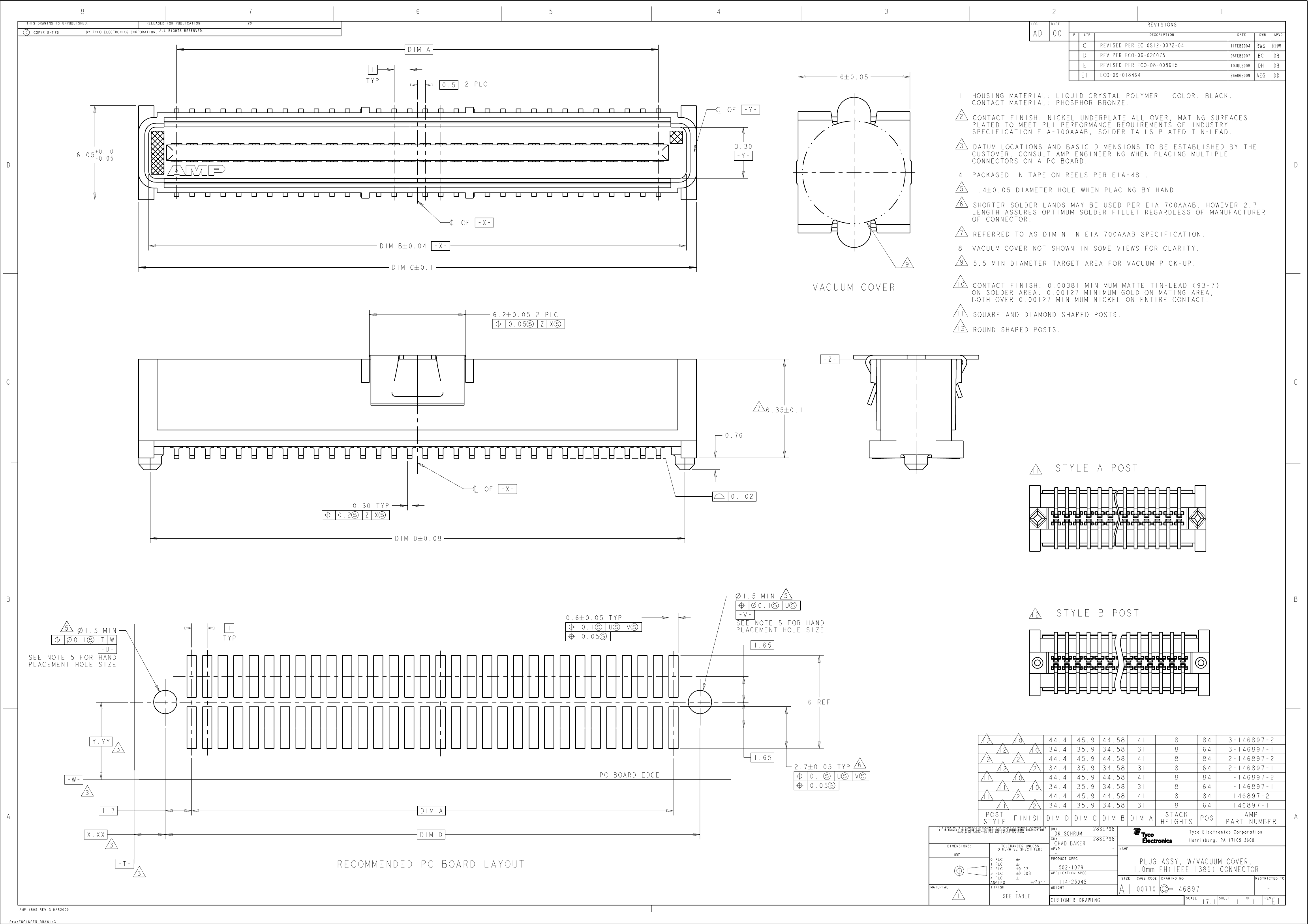

3-146897-2: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,84 CONTACTS,PIN,0.039 PITCH,SURFACE MOUNT TERMINAL,LOCKING,BLACK; CategoryThe connector The connector; File Size170KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

3-146897-2 Overview

HEADER CONNECTOR,PCB MNT,PLUG,84 CONTACTS,PIN,0.039 PITCH,SURFACE MOUNT TERMINAL,LOCKING,BLACK

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Is Samacsys	N
Board mount options	PEG
body width	0.238 inch
subject depth	0.25 inch
body length	1.807 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	CENTRONIC
Dielectric withstand voltage	250VAC V
Durability	100 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	146897
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	110 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.302 mm
Plating thickness	50u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.8 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	84
Base Number Matches	1
