3-5146896-1 datasheet, PDF - EEWORLD Datasheet

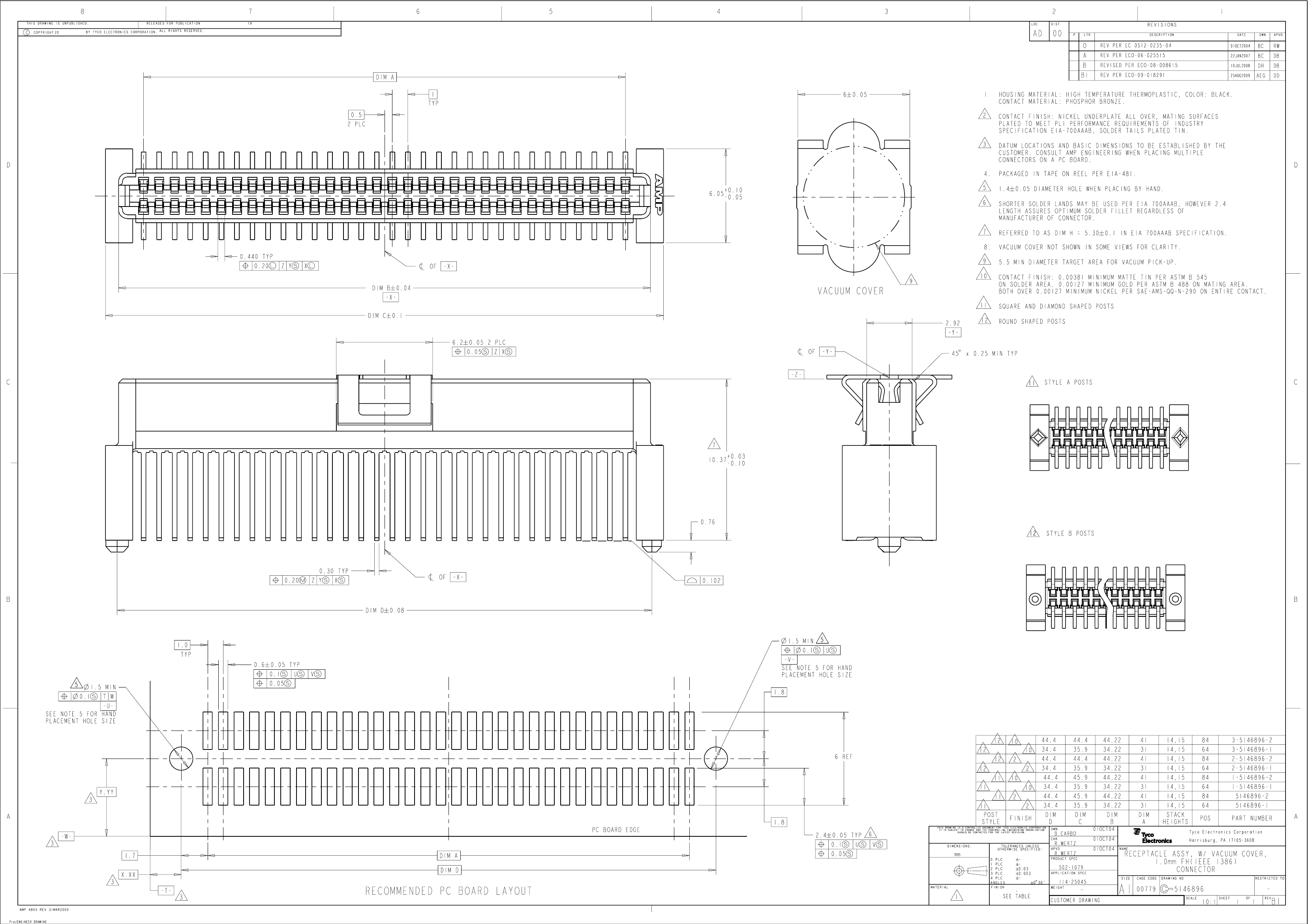

3-5146896-1: Description64 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE; CategoryThe connector The connector; File Size216KB，1 Pages; ManufacturerCobham PLC; Environmental Compliance

Download Datasheet Parametric View All

3-5146896-1 Overview

64 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Is Samacsys	N
Board mount options	PEG
body width	0.238 inch
subject depth	0.408 inch
body length	1.413 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	45 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.4448 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	5146896
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	110 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.6068 mm
Plating thickness	50u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.8 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	64
Evacuation force-minimum value	.1668 N
Base Number Matches	1
