B0509HS1U: DescriptionDC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid, SIP-7/4; CategoryPower/power management The power supply circuit; File Size39KB，3 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric View All

B0509HS1U Overview

DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid, SIP-7/4

B0509HS1U Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SENSITRON
Parts packaging code	MODULE
package instruction	,
Contacts	7/4
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V
Minimum input voltage	4.5 V
Nominal input voltage	5 V
JESD-30 code	R-XSMA-P4
Humidity sensitivity level	1
Number of functions	1
Output times	1
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Nominal output voltage	9 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	PIN/PEG
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	1 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

SENSITRON

SEMICONDUCTOR

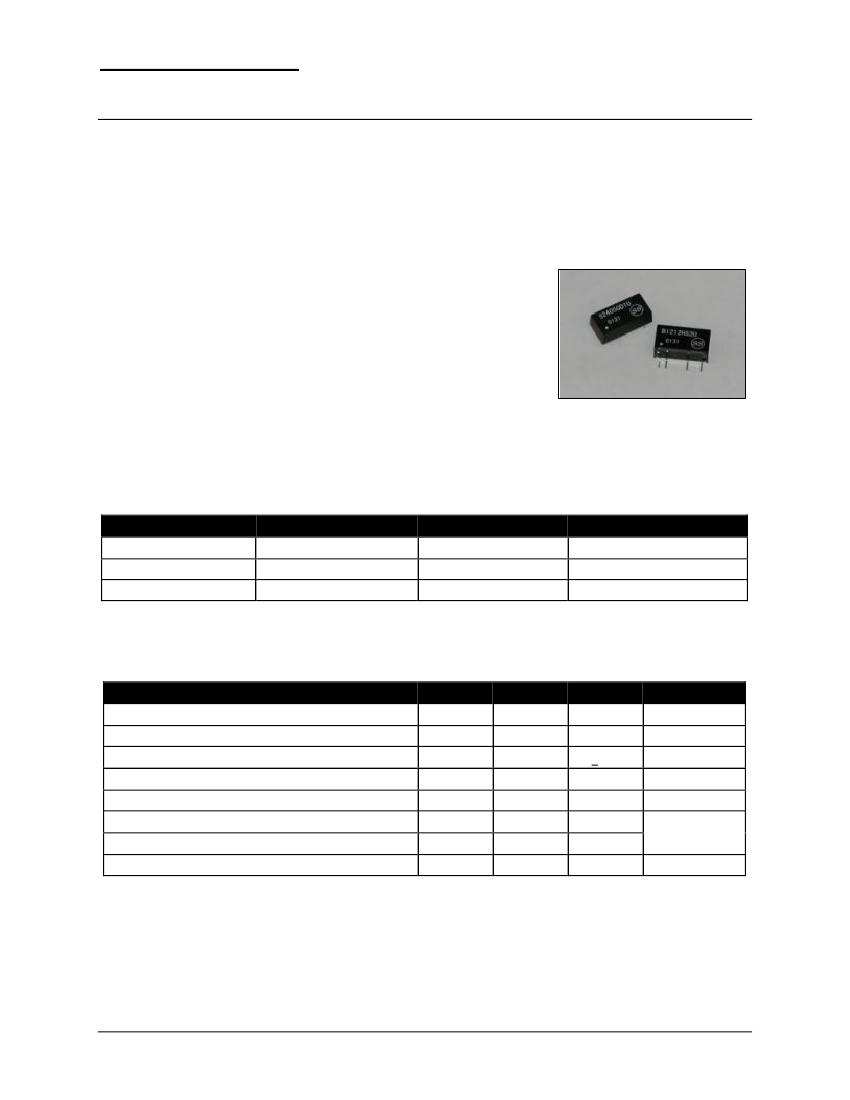

TECHNICAL DATA

DATA SHEET 1101, REV. -

B - 1W/2W Series

DC-DC Converters

Fixed Input, 3000V Isolation, Unregulated, Single Output

FEATURES:

•

Isolation Voltage:

Isolation Resistance (1):

Short-Circuit Duration:

Case Temperature Rise:

Cooling Method:

Standby Power Dissipation:

Operating Temp.:

Storage Temp.:

Humidity:

Soldering Temp. (2):

Case Material:

Mean Time Before Failure:

3000Vdc

1000MΩ

1 second

Max. 25°C, Typ. 15°C

Free-Air Cooling

1W (100mW), 2W (200mW)

-40°C ~ + 85°C

-55°C ~ + 125°C

≤

95%

300°C

Non-Flammable Material (UL94-V0)

> 1,000,000 hours (Operating Temp. 25°C)

B Single Output-1W/2W Series Input Characteristics

Part Number

B05XXHS/D1/2U

B12XXHS/D1/2U

Nominal Input Voltage

5Vdc

12Vdc

Input Voltage Range

4.5~5.5Vdc

10.8~13.2Vdc

Maximum Input Voltage*

7Vdc

15Vdc

28Vdc

B24XXHS/D1/2U

24Vdc

21.6~26.4Vdc

*

Voltage above this value may cause permanent damage to the device.

B Single Output-1W/2W Series Output Characteristics

Parameter

1W Output Power

2W Output Power

Line Regulation

Efficiency at 100% Load

Temperature Coefficient

1W Ripple and Noise

2W Ripple and Noise

Switching Frequency

1.

2.

80

50

85

100

65

75

MIN

0.25

0.5

TYP

MAX

1

2

+ 1.2

85

0.03

75

150

Units

W

%

%/°C

mVp-p

kHz

All specifications at TA=25°C, 75% of the humidity, Nominal input voltage, full output load unless otherwise

specified.

Soldering for 10 seconds at 1.5mm away from the edge.

•

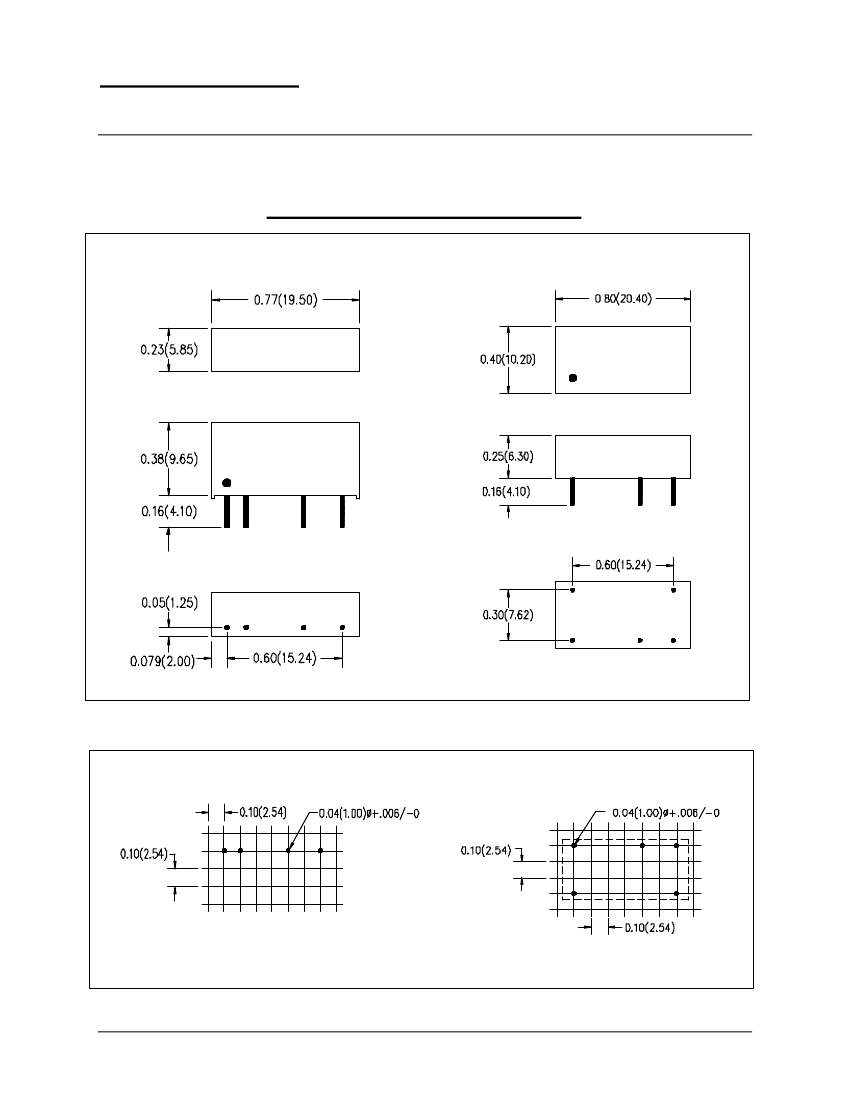

221 West Industry Court

•

Deer Park, NY 11729-4681

•

Phone (631) 586-7600

•

Fax (631) 242-9798

•

World Wide Web Site - http://www.sensitron.com

•

E-Mail Address - sales@sensitron.com

•
