PPS1507500G: DescriptionFixed Resistor, Metal Glaze/thick Film, 1W, 750ohm, 350V, 2% +/-Tol, 50ppm/Cel, Surface Mount, 1713, CHIP; CategoryPassive components The resistor; File Size243KB，2 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

PPS1507500G Overview

Fixed Resistor, Metal Glaze/thick Film, 1W, 750ohm, 350V, 2% +/-Tol, 50ppm/Cel, Surface Mount, 1713, CHIP

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TT Electronics plc
package instruction	MELF, 2010
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	FLAME PROOF
structure	Ceramic Case
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Package height	2.67 mm
Package length	5.08 mm
Package shape	RECTANGULAR PACKAGE
Package form	MELF
Package width	3.3 mm
method of packing	TR
Rated power dissipation(P)	1 W
Rated temperature	70 °C
resistance	750 Ω
Resistor type	FIXED RESISTOR
size code	2010
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	50 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAP AROUND
Tolerance	2%
Operating Voltage	350 V
Base Number Matches	1

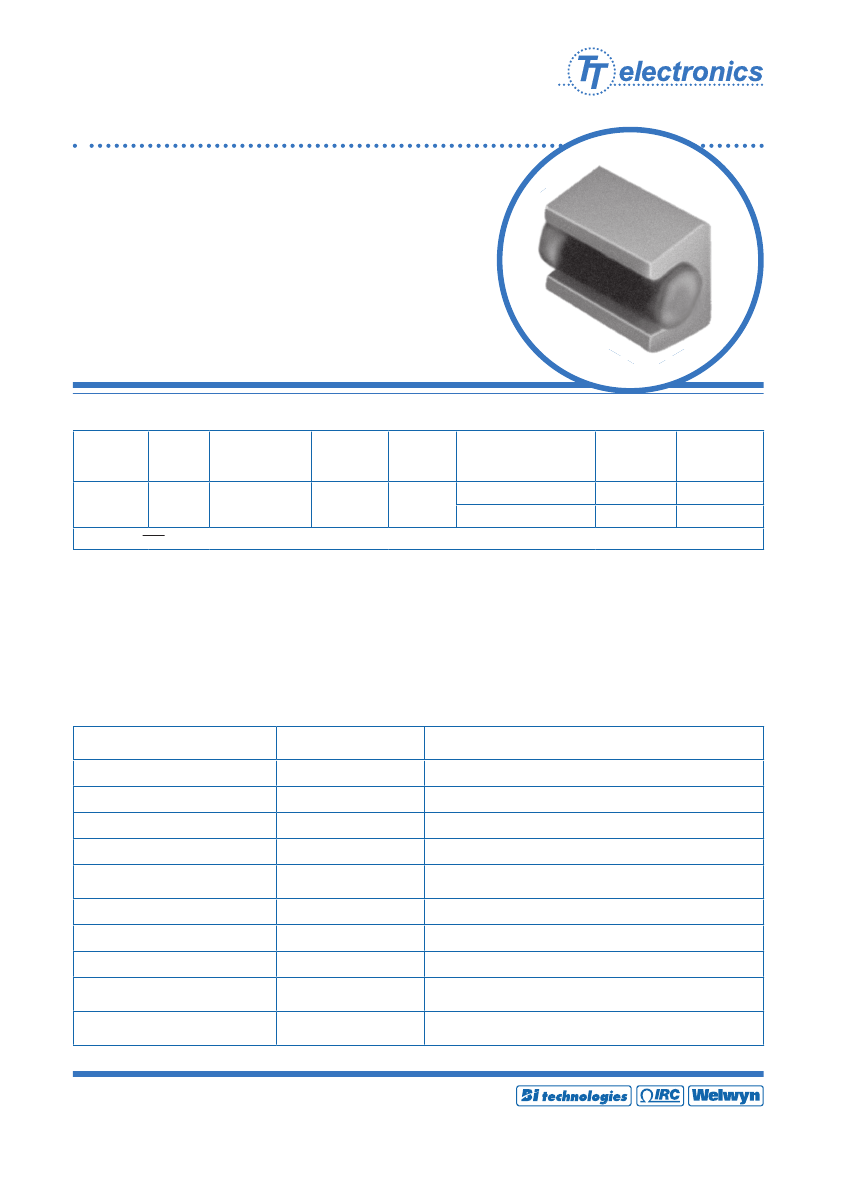

Metal Glaze™ Power Pack

Surface Mount High Power

Density Ceramic Package

PPS-1 Series

·

Low inductance

0.1Ω to 348KΩ range

Superior surge handling capability

150°C maximum operating temperature

1 Watt performance - standard 2010 footprint

Flameproof ceramic package provides superior

temperature rise profile

General Note

TT electronics reserves the right to make changes in product specification without notice or liability.

All information is subject to TT electronics’ own data and is considered accurate at time of going to print.

www.bitechnologies.com www.irctt.com www.welwyn-tt.com

09. 11
