HUBER+SUHNER
®
DATA SHEET

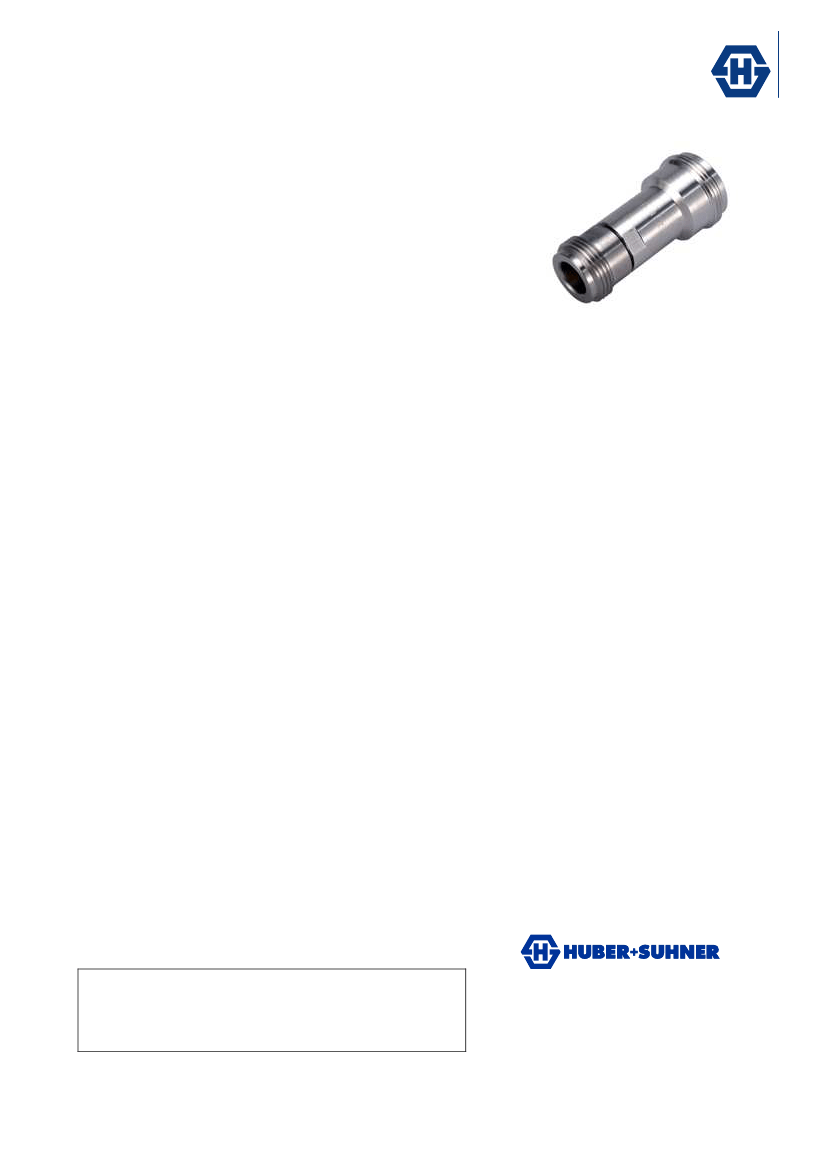

Between Series Adapter: 31_N-4195-50-12/139_U
Description
Rev.: E
Adaptor jack/jack
N-precision jack (female) / 4.1/9.5 jack (female)
Interface standards
IEC 60169-16_MIL-STD-348A/402_CECC 22210
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
Electrical Length
50
Ω
14 GHz
DC to 6 GHz
≥ 32 dB
29.31 mm +/- 0.1
500
0.0474 kg
-65 °C to 165 °C
compliant
Material
Copper Beryllium Alloy
Stainless Steel
Stainless Steel
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Surface Plating
Gold Plating (without Nickel underplating)
6 to 14 GHz
≥ 24 dB
Mechanical Data
Number of matings
Weight
Environmental Data
Operating Temperature
2002/95/EC (RoHS)
Piece Parts
(N-precision)
Centre contact
Outer contact
Body
Insulator
Piece Parts
(4.1/9.5)
Centre contact
Outer contact
Body
Insulator
Material Data
Surface Plating
Gold Plating (without Nickel underplating)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Related Documents
Single package
Ordering Information
31_N-4195-50-12/139_UE
HUBER+SUHNER is certified according to ISO 9001 and ISO 14001
WAIVER!
It is exclusively in written agreements that we provide our customers with warrants and
representations as to the technical contained specifications and/or the fitness for any particular
purpose. The facts and figures herein are carefully compiled to the best of our knowledge, but they are
intended for general informational purposes only.
HUBER+SUHNER AG
RF Technology
9100 Herisau, Switzerland
Phone +41 (0)71 353 41 11
Fax
+41 (0)71 353 45 90
www.hubersuhner.com
HUBER+SUHNER – Excellence in Connectivity Solutions
Document: DOC-0000195577 P
Issued: 08.08.08
Uncontrolled Copy
Page 1/1
