BSD-1010-007

Description
Single Color LED Display Cluster, Pure Green, 6.6mm,
CategoryLED optoelectronic/LED    photoelectric
File Size140KB，2 Pages
ManufacturerLEDtronics
Websitehttp://ledtronics.com.my
Download Datasheet Parametric View All

BSD-1010-007 Overview

Single Color LED Display Cluster, Pure Green, 6.6mm,

BSD-1010-007 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Is SamacsysN
colorPURE GREEN
Display height6.6 mm
Maximum forward current0.04 A
Number of functions1
Maximum operating temperature60 °C
Minimum operating temperature-20 °C
Optoelectronic device typesSINGLE COLOR LED DISPLAY CLUSTER
Base Number Matches1

Preview

Download Datasheet

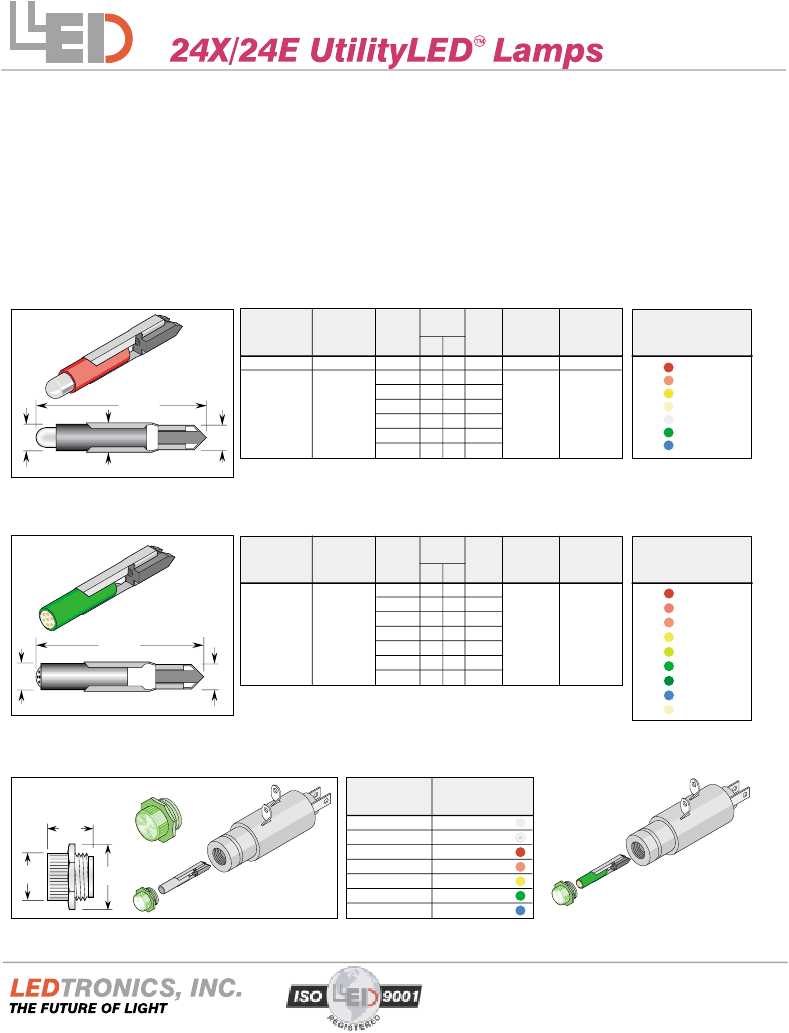

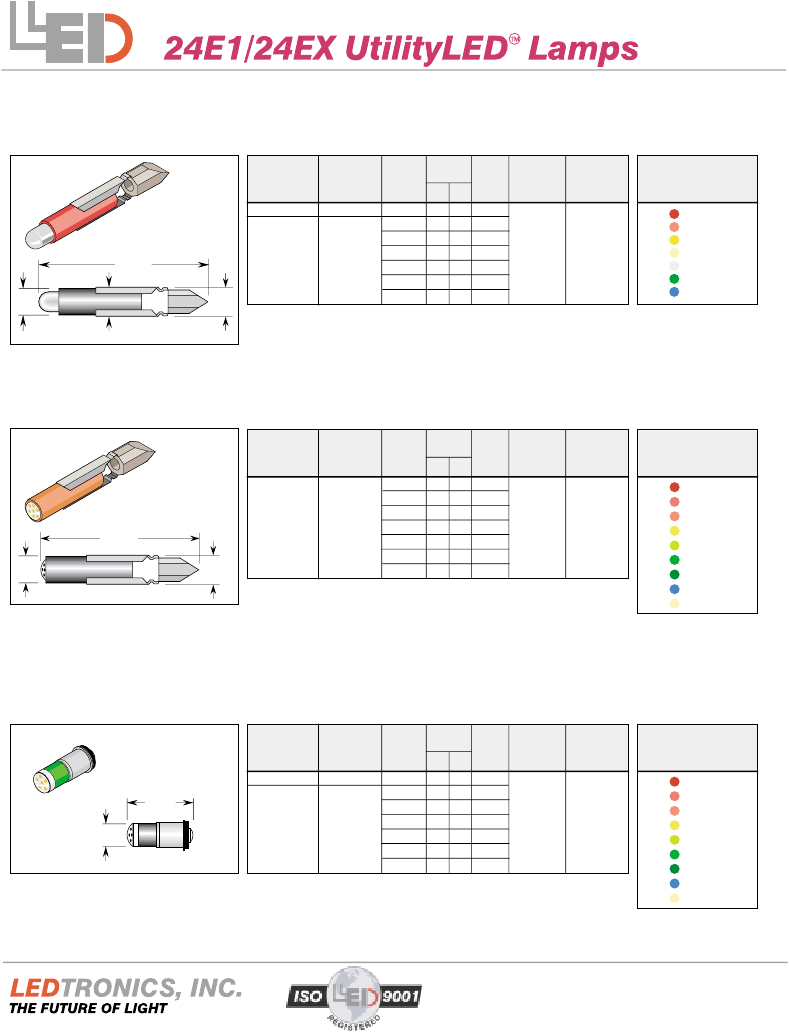

Direct Incandescent Replacement in ET5 & ET6 Holders
24X/24E UtilityLED Lamps
Features
•
Replaces T2-#2 Teleslide
Incandescent Lamp #24X, #24E
•
Long Life 100,000+ hrs (10 years)
•
Solid-State, High Shock/Vibration
Resistant
•
Low Power, High Intensity
•
Major Power Savings
•
Major Reduction in Heat
Generation
Options
•
Special Voltages
•
Other Industry Standard Bases
•
Choice of Multichips and Multi-
LED Clusters
•
Maintenance Free, Easy Installation
•
Built-in Current Limiting
Resistor Including External
Resistor
•
Sunlight Visible Super Bright
T2- #2 Telephone Slide, Single Chip, Super Bright
Part Number
Color
Circuit
Rating
Volts
Incandescent
External
Incandescent
Lamp
Series
Lamp
Voltage
Resistor
Number
Rating
Min Max OHMs
Circuit
Voltage
Color Code
(-0XX) / (1XX)
UTL24X-0XX
SEE CHART
24VDC
48VDC
67VAC
22
44
55
28
56
76
110
900
1500
2800
3300
6300
7200
24E / 24X
28V
1.69 MOL
[43.0]
UTL24X-1XX
.265
[6.73]
.285
[7.3]
115VAC 95 130
125VDC 110 140
SEE CHART
230VAC 220 280
250VDC 220 280
24E / 24X
28V
UR
UO
UY
IW
CW
AG
UB
RED
ORANGE
YELLOW
INC. WHITE
COOL WHITE
GREEN
BLUE
.295
T2- #2 Telephone Slide, Multi-chip, High Intensity
Part Number
Color
Circuit
Rating
Volts
External Incandescent Incandescent
Lamp
Series
Lamp
Voltage
Resistor Number
Min Max OHMs
Rating
Circuit
Voltage
Color Code
(-0XX) / (1XX)
24VDC
48VDC
67VAC
BSD-1010-0XX SEE CHART 115VAC
22
44
28
56
110
900
24E / 24X
28V
001
002
003
004
005
006
007
008
026
ULTRA-RED
HI-EFF RED
ORANGE
YELLOW
LIME YELLOW
GREEN
PURE GREEN
BLUE
PALE WHITE
55 76 1500
95 130 2800
1.69 MOL
[43.0]
.260
[6.6]
.285
[7.3]
125VDC 110 140 3300
230VAC 220 280 6300
250VDC 220 280 7200
Replacement Lens Caps for ET-5 and ET-6 Holders
ET-6 FLUTED LENS CAP
Part Number
.44
[11.2]
Color
Typical Application
RPNL-1040-055A YELLOW
RPNL-1040-066A GREEN
RPNL-1040-088A BLUE
T2-#2 LED Lamp
23105 Kashiwa Court, Torrance, CA 90505
Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424
E-mail: webmaster@ledtronics.com
Website: http://www.ledtronics.com
Log # 032C Rev 3-99
.46
[11.7]
.63
[16.0]
RPNL-1040-001A WATER CLEAR
RPNL-1040-101A CLOUDY CLEAR
RPNL-1040-022A RED
RPNL-1040-044A AMBER

Recommended Resources

Laptop photoelectric detection circuit

DC/DC converter circuit diagram of primary ZVS and secondary ZVS synchronous rectification controlled by ISL6752

Voice controlled electronic music toy circuit

Two sets of batteries fully automatic charging control circuit diagram

The most practical basic diagram circuit 08-unijunction transistor trigger circuit

CWl525A driver bipolar push-pull circuit
