00600744450018 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 00600744450018

00600744450018: DescriptionCard Edge Connector, 44 Contact(s), 2 Row(s), Female, Solder Terminal; CategoryThe connector The connector; File Size99KB，1 Pages; ManufacturerAVX

Download Datasheet Parametric View All

00600744450018 Overview

Card Edge Connector, 44 Contact(s), 2 Row(s), Female, Solder Terminal

00600744450018 Parametric

Parameter Name	Attribute value
Maker	AVX
Reach Compliance Code	compliant
Is Samacsys	N
Connector type	CARD EDGE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	6007
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	44
Base Number Matches	1

Preview

Download Datasheet

View All

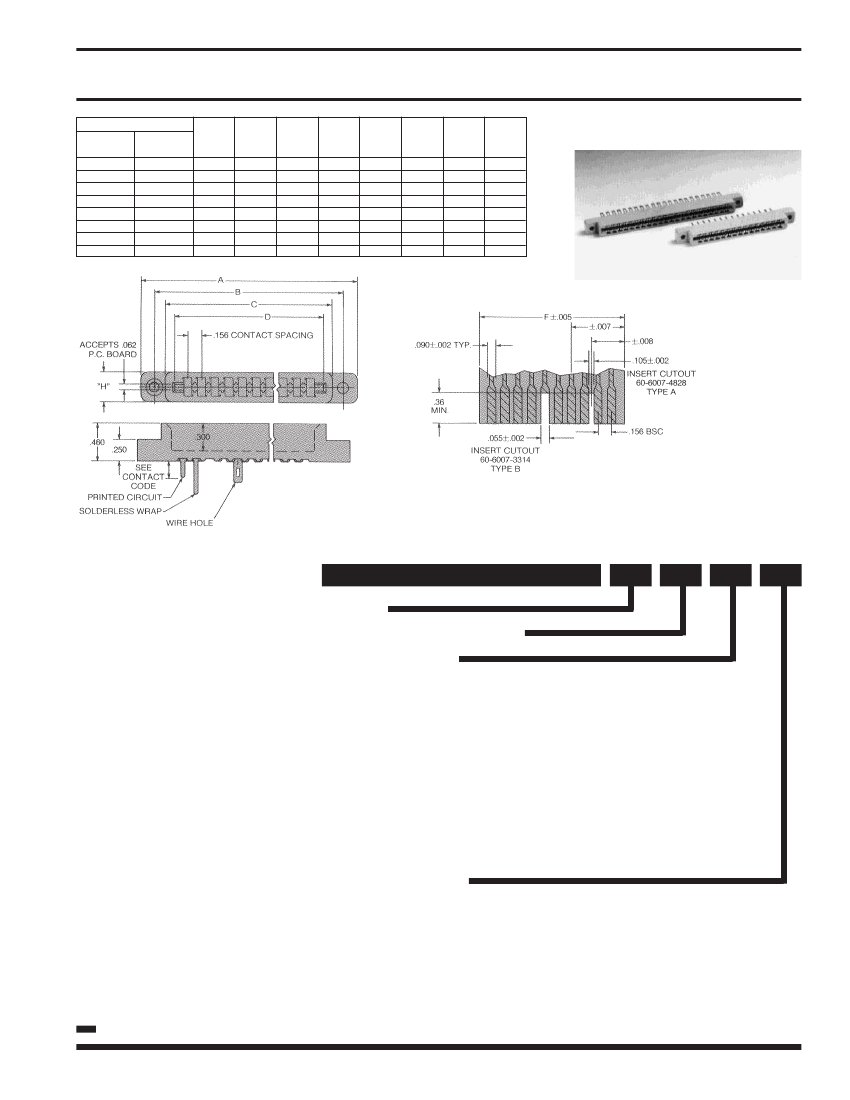

.156" x .200"

NO. OF CONTACTS

SINGLE

DUAL

READOUT READOUT

1.842

2.466

2.778

3.246

3.714

4.338

6.522

7.614

1.532

2.156

2.468

2.936

3.404

4.028

6.212

7.304

1.246

1.870

2.182

2.650

3.118

3.742

5.926

7.018

1.100

1.724

2.036

2.504

2.972

3.596

5.780

6.872

1.290

1.910

2.220

2.700

3.160

3.790

5.940

7.040

1.086

1.710

2.022

2.490

2.958

3.582

5.766

6.858

.343

.500

.380

.540

SERIES 6007

Rectangular Tails

Features

*Meets the performance requirements

of MIL-C-21097

Single and dual read-out contacts

Eight sizes: 6/12, 10/20, 12/24, 15/30,

18/36, 22/44, 36/72, 43/86, contacts

Three mounting styles: mounting holes,

floating eyelets and threaded inserts

Ordering Code

Typical Example

6007

030

450

012

SERIES

NUMBER OF CONTACTS

CONTACT CODE

Single Read-Out (contact tails on number side of insulator)

*457

60-6007-06-53 Wire hole special: .227" lg. (2 term.) (double sided)

(.013" x .089")

551

60-6007-16-23 Wire hole (single sided): .277" lg. (.013" x .045")

552

60-6007-16-33 P.C. tab (single sided): .202" lg. (.013" x .045")

*936

60-6007-06-43 Wrap (.016" x .047") special: .497" lg. (double sided)

*938

60-6007-06-33 P.C. tab special: .215" lg. (double sided) (.013" x .047")

*940

60-6007-06-23 Wire hole special: .227" lg. (double sided) (.013" x .089")

Dual Read-Out

450

60-6007-19-23 Wire hole: .277" lg. (.013" x .078")

451

60-6007-19-33 P.C. tab: .202" lg. (.013" x .048")

452

60-6007-18-13 Solderless wrap (.016" x .044"): .697" lg.

453

60-6007-18-23 P.C. tab: .347" lg. (.016" x .044")

454

60-6007-18-33 Solderless wrap (.016" x .044"): .517" lg.

*498

60-6007-05-33 Switching (used in pairs): .202" lg. P.C. tab

*941

60-6007-05-13 Switching (used in pairs): .229" lg. wire hole

Wire hole size: (.062" x .125")

Wire hole size: (.046" x .125")

Specifications

Current rating:

5 amperes

Contact resistance:

6 milliohms, maximum

Contact material:

Phosphor bronze

Contact plating:

Overall:

50-100 microinches nickel and 10

microinches min. gold overall

Insertion/withdrawal force:

2 to 16

ounces per contact pair, nominal P.C.

card

Insulator material:

Diallyl phthalate, glass-

filled, per MIL-M-14F, type SDGF (check

factory for other available materials)

Insulation resistance:

25,000 megohms,

minimum

Dielectric withstanding voltage:

2000

VAC between adjacent contacts, RMS,

at sea level

VARIATION CODE

Plating

Overall

012

With .128" dia. mounting holes

018

With #4-40 insert

*Selective plating not available.

For contacts 60-6007-05-06

POLARIZATION

Ordering polarizing insert separately by part number A type: 60-6007-4828;

B type: 60-6007-3314

Recommended for standard applications. Available through AVX franchised distributors.
