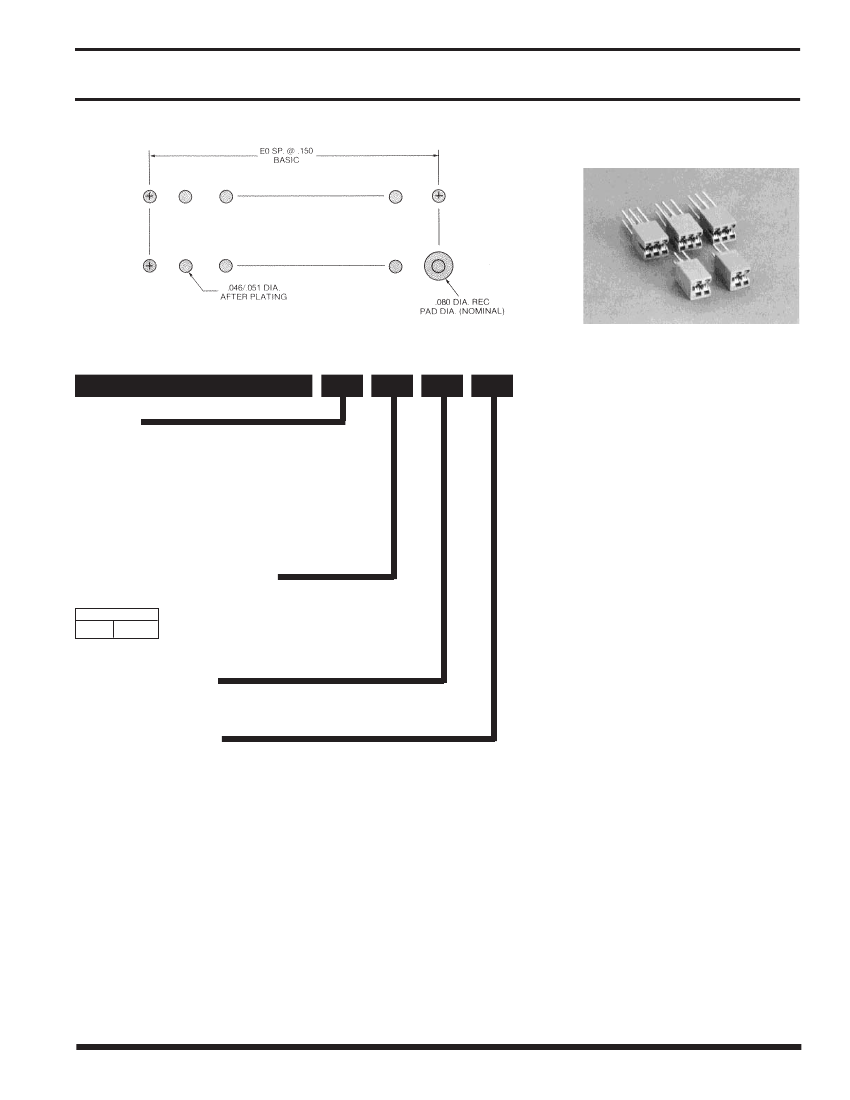

.150" x .200"
SERIES 6308
.031" Square Post
Press-Fit Contacts
Ordering Code
Typical Example
Features
00
6308
006
313
001
Designed for press-fit mounting in
plated-thru holes
Available in four and six contact modules
Modules can be arranged to custom
design press-fit card-edge connectors
Lets you update your packaging scheme while
maintaining existing contact spacing
Press-fit system provides highly reliable
gas-tight electrical and mechanical connection
Tapered single beam contact offers very low
contact resistance
.150" x 200" grid pattern
U.L. approved
SERIES
6308
Specifications
NUMBER OF CONTACTS
6308
DUAL READ-OUT
Current rating:
5 amperes, maximum
Contact resistance:
6 milliohms, maximum
Contact material:
Phosphor bronze
Contact plating:*
Selective:
50-150 microinches nickel, 10
microinches min. gold-mating area only,
3-5 microinches gold flash on tail,
balance bare nickel
Overall:
50-100 microinches nickel and 10
microinches min. gold overall
Insertion/withdrawal force:
2 to 12 ounces per
contact pair, nominal P.C. card
Insulator material:
Polyester
Insulation resistance:
5000 megohms, minimum,
at 500 VDC
Dielectric withstanding voltage:
1200 VAC
between adjacent contacts, RMS, at
sea level
*For other type platings please consult factory.
4
6
004
End module (one closed end)
006
Center module (open ends)
CONTACT CODE
313
60-6308-0213 (.372 tail length)
320
60-6308-0223 (.592 tail length)
VARIATION CODE
6308
Plating
Selective Overall
808
008
811
011
(6 center module)
(4 end module)
POLARIZATION
Order polarizing insert separately by part number 60-6064-3317; fits between contacts.
7
