008219072771001 datasheet, PDF

Datasheet> All Categories > 008219072771001

008219072771001: DescriptionBoard Connector, 72 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle,; File Size201KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

008219072771001 Overview

Board Connector, 72 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle,

008219072771001 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1508727561
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.15
Other features	POLARIZED, STAGGERED CONFIGURATION
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (100)
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	72

Preview

Download Datasheet

View All

Varicon

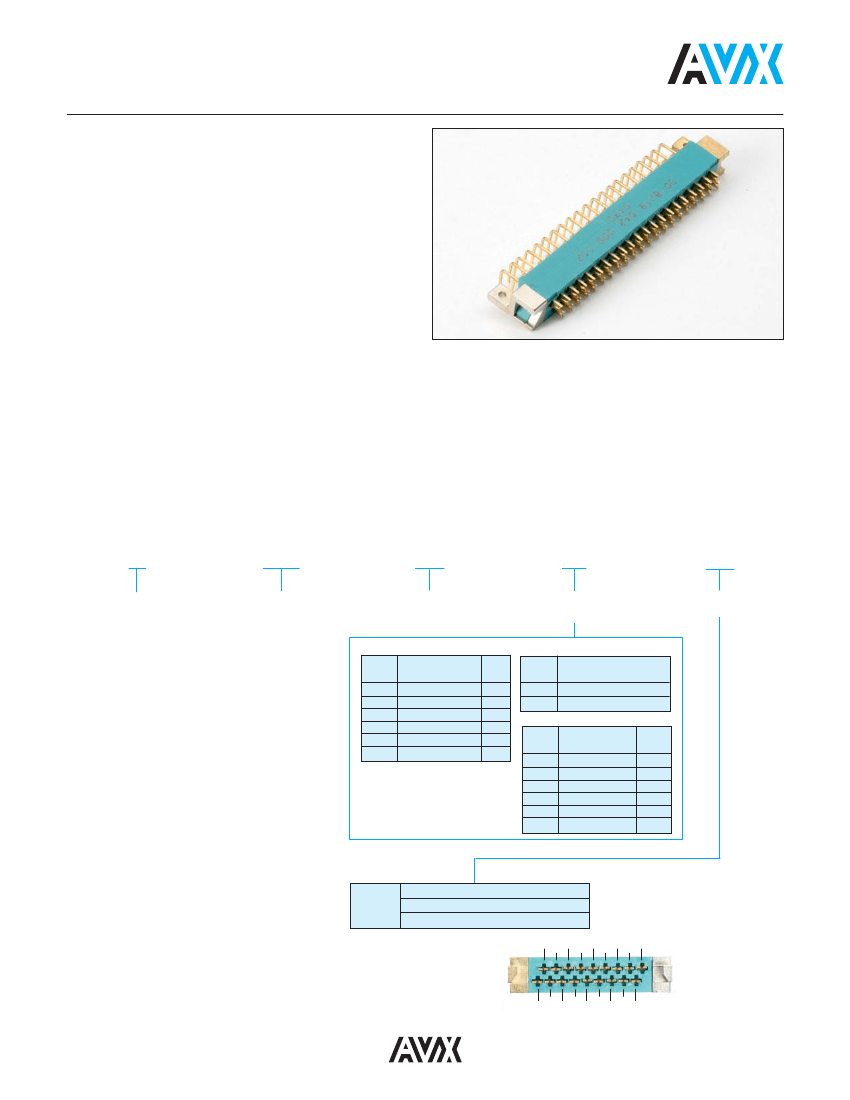

Series 8219 – 0.050" Staggered Dual Row

FEATURES

•

For p.c. card-to-card applications

•

High contact density

•

Low withdrawal force contacts

•

Rugged, color coded end guides

•

Parallel or perpendicular p.c. board mounting

•

Mates with Series 8218

TECHNICAL SPECIFICATIONS

Current Rating:

5 amperes, maximum

Contact Resistance:

6 milliohms, maximum

Contact Material and Plating:

Phosphor Bronze

Gold, 10 microinches minimum,

over nickel, 50 to 100 microinches

Insulator Material:

Diallyl phthalate, glass-filled, flame resist-

ant per MIL-M-14F, Type SDGF.

Guidance Hardware:

Left hand guides:

Metal, gold color

Right hand guides:

Metal, silver color

Insulation Resistance:

5,000 megohms, minimum

Dielectric Withstanding Voltage:

Sea Level: 1000 Volts rms

3.4" Hg:

500 Volts rms

Insertion/Withdrawal Force:

2 to 8 ounces per contact

ORDERING CODE

8219

042

Number of Contacts

018, 030, 036, 042, 054, 072

For Variation = 001

Code

“X”

Contact Type Dim.

No.

722

721

736

737

753

771

Wire hole tail

P. C. solder tail

.187

.250

.281

.562

.125

.484

722

Contact Code

(see below)

For Variation = 002

Code

Contact Type

No.

000

722

P. C. solder tails formed

Wire hole tail unformed

001

Variation Code

For Variation = 005

Code

“Y”

No. Contact Type Dim.

722

721

736

737

753

771

Wire hole tail

P. C. solder tail

.157

.219

.250

.531

.093

.453

Without

Keying

001 = Receptacle

002 = Plug, parallel board mounting

005 = Plug, perpendicular board mounting

NOTE:

Connector is supplied with

mounting screws or eyelets, as applicable

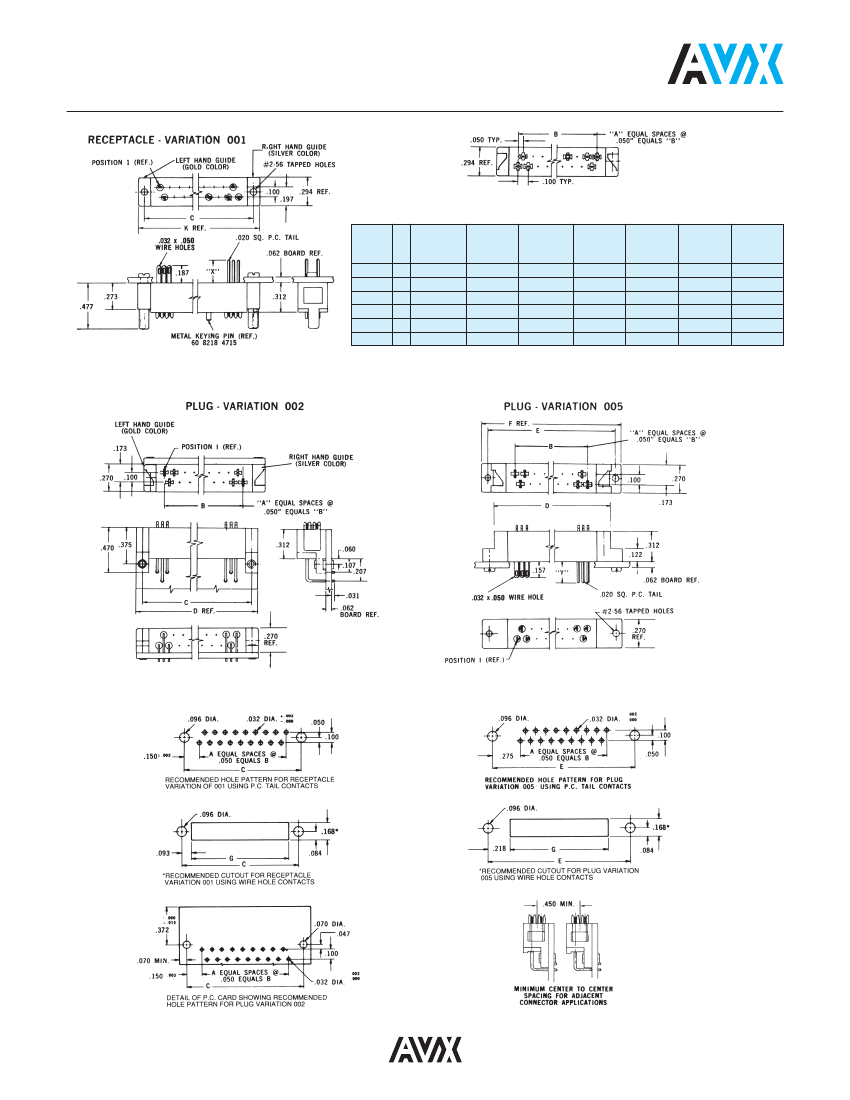

(see drawings).

Contact Factory for Special Variations.

POLARIZING SYSTEM

When Keying is ordered with part number, the Key is installed at the factory.
