008290064000011 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 008290064000011

008290064000011: DescriptionBoard Connector, 64 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Gray Insulator, Socket; CategoryThe connector The connector; File Size121KB，2 Pages; ManufacturerAVX

Download Datasheet Parametric View All

008290064000011 Overview

Board Connector, 64 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Gray Insulator, Socket

008290064000011 Parametric

Parameter Name	Attribute value
Maker	AVX
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	LOW PROFILE, POLARIZED
body width	0.285 inch
subject depth	0.287 inch
body length	3.378 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1050VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	8290
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Termination type	IDC
Total number of contacts	64
UL Flammability Code	94V-0
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

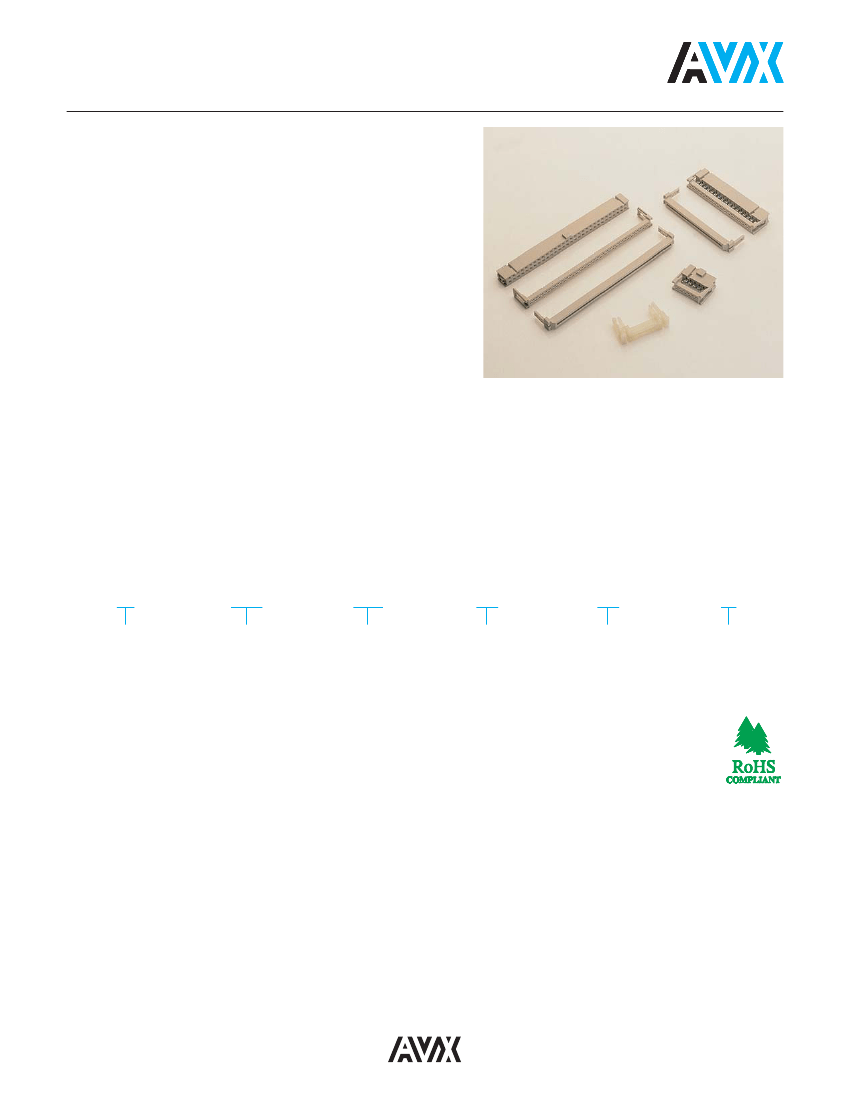

Low Profile IDC Socket Connector

Series 8290

Available in industry standard sizes of 10-64 positions. They

mate to AVX Series 8289, 8293, 8380 and 8383 headers,

as well as other industry compatible connectors. An option-

al strain relief, which can be easily fitted, eliminates stress

on the cable. Contacts are copper alloy for added reliability,

and are designed to mate to 0.024" (0.60mm) to 0.025"

(0.64mm) square pins. The contact design facilitates maxi-

mum wipe on the header pins. (early mate, late break).

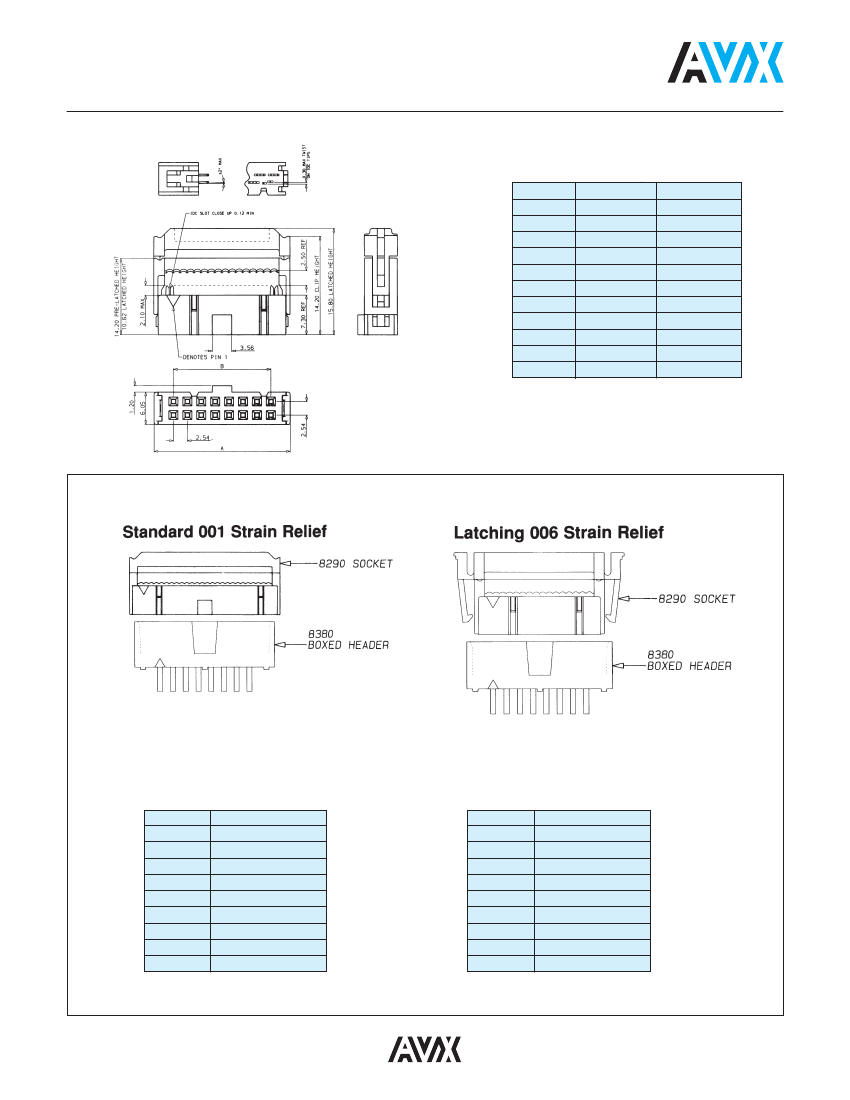

TECHNICAL SPECIFICATION

Material:

Molding - UL94VO rated glass filled grey

polyester

Contact - Phosphor bronze

Contact Plating:

Contacts are selective gold-plated over

nickel, pure tin in IDC section

Current Rating:

1 ampere at 70ºC maximum ambient

Voltage Rating:

350V DC or AC peak

Dielectric Withstanding Voltage:

1050V DC or AC peak

Insulation Resistance:

>1000 megohms

Contact Resistance:

Initially, 10 milliohms maximum

Operating Temperature:

-55ºC to +105ºC

Wire Gauge:

26 AWG Solid & Stranded

28 AWG Solid & Stranded

ORDERING CODE

Connector Code

Prefix

8290

Series Number

010

Number of

Circuits

010 = 10 position

014 = 14 position

016 = 16 position

020 = 20 position

026 = 26 position

034 = 34 position

040 = 40 position

044 = 44 position*

050 = 50 position

060 = 60 position

064 = 64 position

000

Strain Relief

000 = Without strain

relief (feed thru)

Standard

001 = With strain relief

(feed thru)

Standard

006 = With latching

strain relief

(feed thru)

see series 8380

page 13

Plating

01 = 30µ Gold over

Nickel

04 = 10µ Gold over

Nickel

Polarization

1 = With central

polarizing boss

2 = Without central

polarizing boss

*44 position connector is only available without

strain relief - consult sales office for availability.
