008380014009010 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 008380014009010

008380014009010: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Guide Slot, Gray Insulator, Receptacle,; CategoryThe connector The connector; File Size83KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

008380014009010 Overview

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Guide Slot, Gray Insulator, Receptacle,

008380014009010 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVX
Reach Compliance Code	not_compliant
ECCN code	EAR99
Is Samacsys	N
Other features	LOW PROFILE
body width	0.335 inch
subject depth	0.376 inch
body length	0.983 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1050VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	8380
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.177 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	14
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

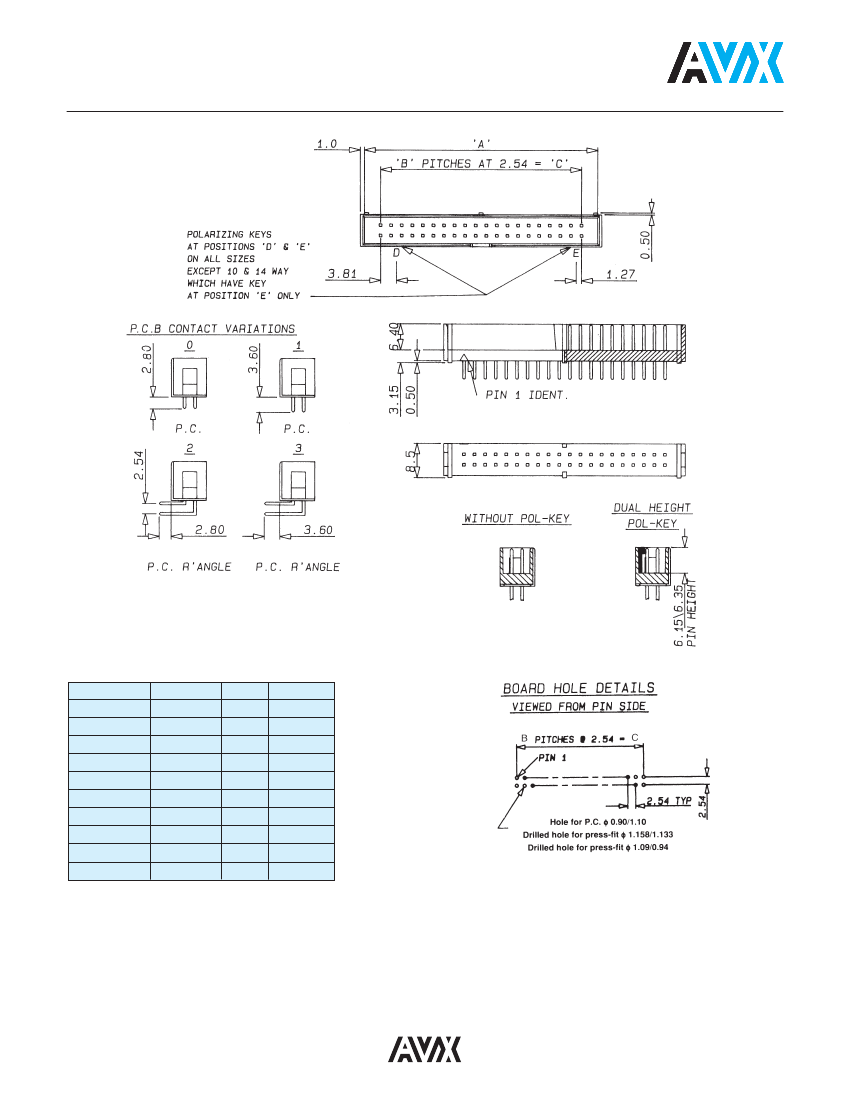

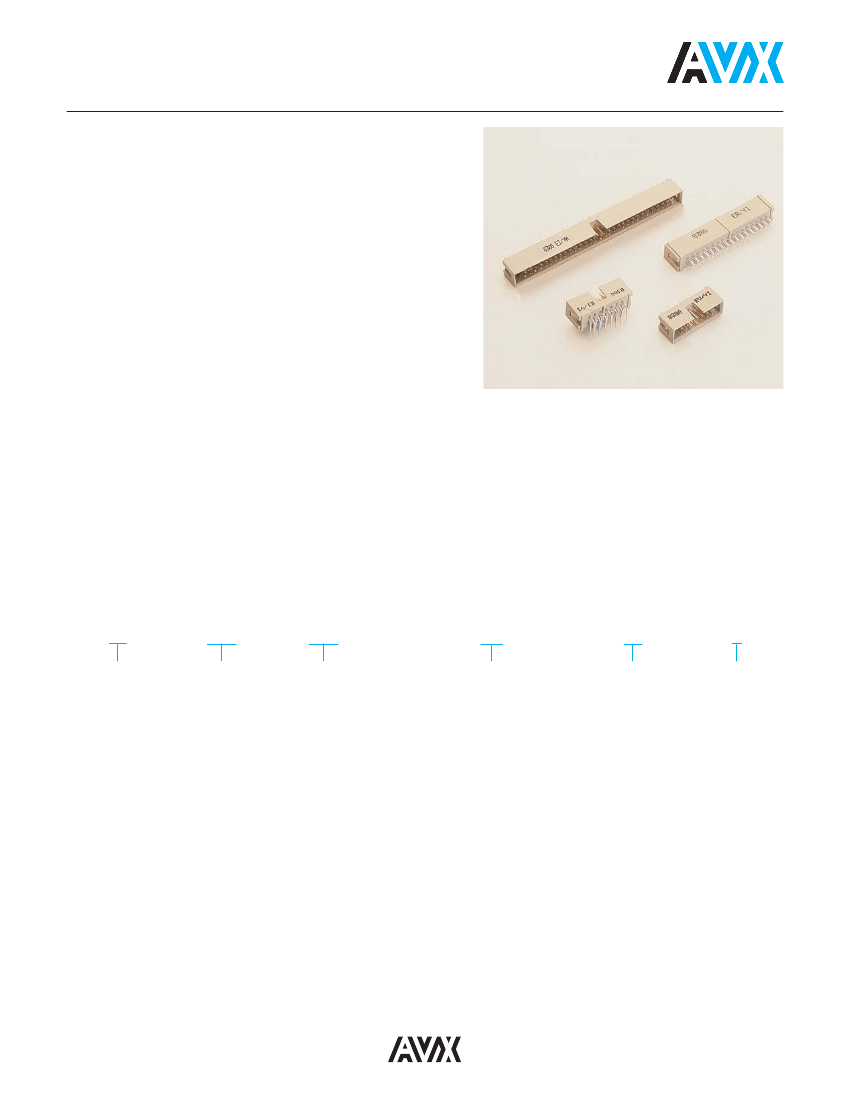

Low Profile Box Header

Series 8380

Low profile box headers are available in industry standard

sizes of 10-64 positions. They mate to AVX Series 8290

IDC sockets, as well as other industry compatible connec-

tors. Both straight and right angle solder dip pins for

PC boards are available together with straight press-fit

versions. The connector is shrouded on all four sides for

polarization and contact protection. Polarizing keys are

molded in for correct socket alignment with contact loss.

TECHNICAL SPECIFICATION

Material:

Molding - UL94VO rated glass filled grey

polyester

Contact - Brass

Contact Plating:

Selective gold over nickel plating on

the mating face, pure tin on

IDC section

Current Rating:

1 ampere at 70ºC maximum ambient

Voltage Rating:

350V DC or AC peak

Contact Resistance:

Initially 10 milliohms maximum

Dielectric Withstanding Voltage:

>1050 DC or AC peak

Insulation Resistance:

>1000 megohms

Operating Temperature:

-55ºC to +105ºC

UL File No.

E90723

CSA File No.

1255749

ORDERING CODE

Connector Code

Prefix

00 = Standard

Connector

Assembly

8380

Series Number

050

Number of

Contacts

010 = 10 position

014 = 14 position

016 = 16 position

020 = 20 position

026 = 26 position

034 = 34 position

040 = 40 position

050 = 50 position

060 = 60 position

064 = 64 position

000

Contact Variation

000 = Solder Tail Straight Contact

for 1.6mm PCB - Contact

Length (2.8mm)

001 = Solder Tail Straight Contact

for 2.4mm PCB - Contact

Length (3.6mm)

002 = Solder Tail Right Angle

Contact for 1.6mm PCB -

Contact Length (2.8mm)

003 = Solder Tail Right Angle

Contact for 2.6mm PCB -

Contact Length (3.6mm)

009 = Press-Fit Contact for 2.4/3.2

PCB - Contact Length

(4.5mm)

Plating Variation

01 = 30µ" Gold over

Nickel solder

04 = 10µ" Gold

over Nickel

Polarization

0 = No Polarizing

Keys

Standard

2 = Type B -

Dual Height

molded in

polarizing

key(s)

NB: Additional plating and tail lengths are available.

Consult sales office for availability.
