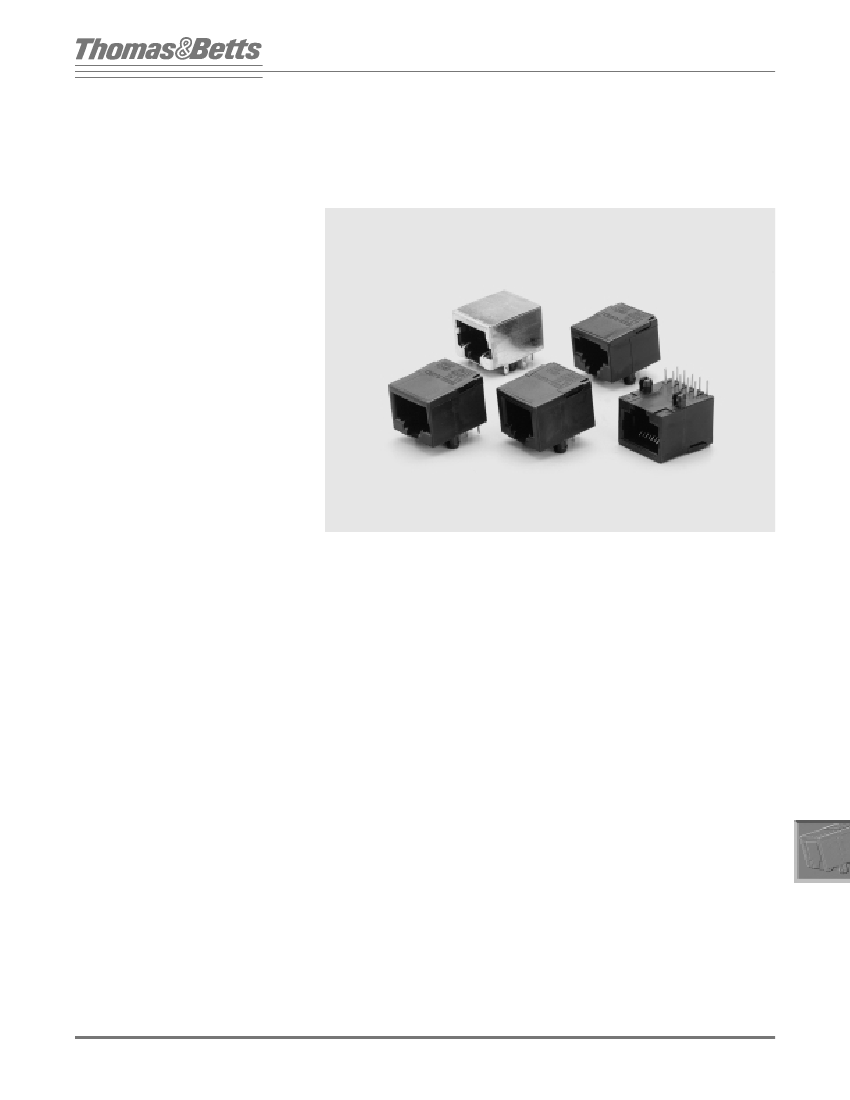

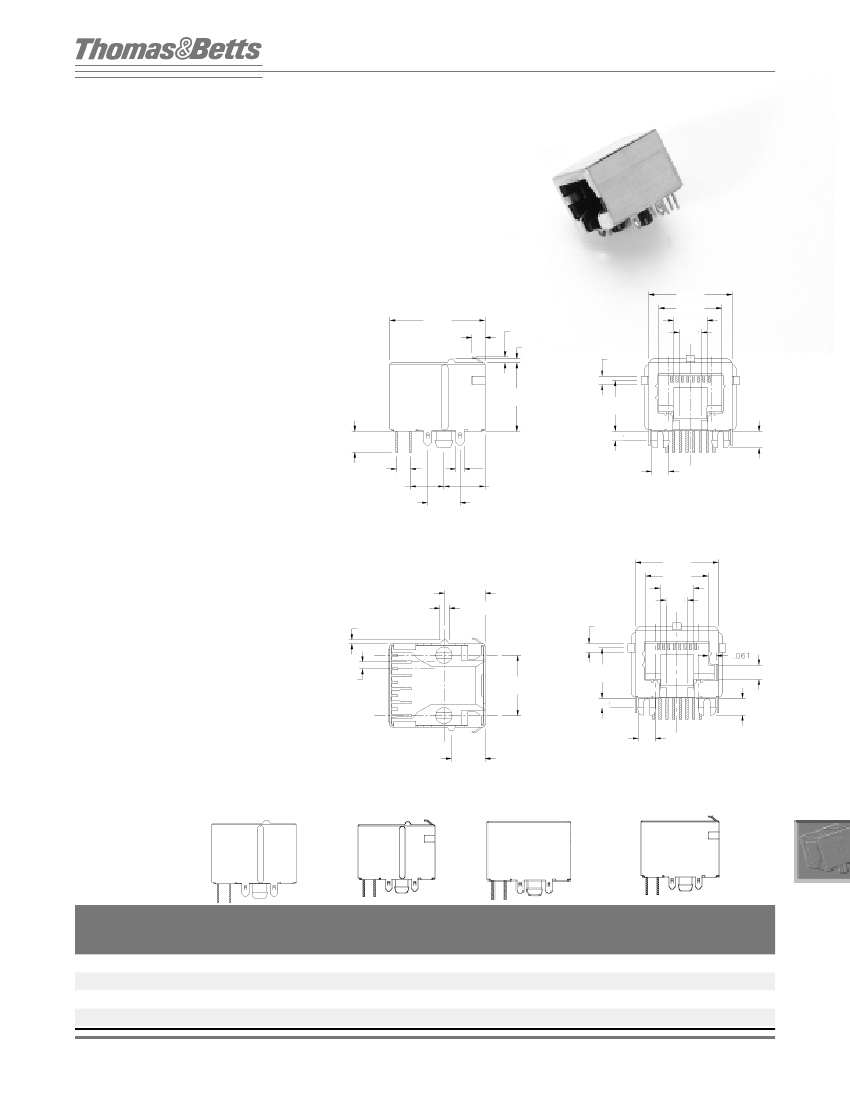

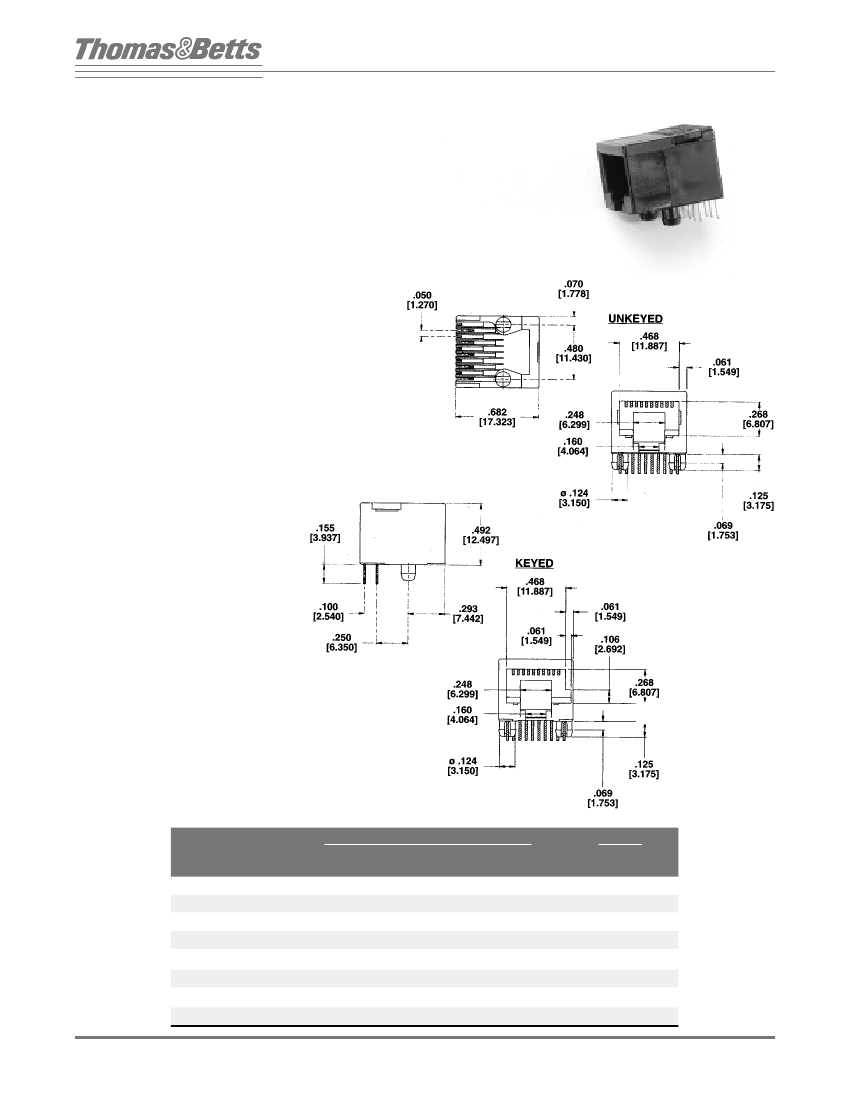

Modular Connector
Female
D
ESCRIPTION
/A
PPLICATION
Thomas & Betts MODCOM-C female
modular connector technology is
based on our patented and
proprietary design. We employ a
catilevered, parallel contact surface
for improved high speed data rates.
All parts are 100% quality checked
before shipment and are recognized
as the most reliable in the industry.
• Data Transmission (DT) Series—
to above 200 Mbps. For digital
telephony of 64 Kbps up to LAN
ATM, T1, E1 telecommunications.
• Recessed Contact (RC) Series—
reduced crosstalk, more defined
contact surface.
Fully enclosed for optimum EMI/RFI
protection. Avavilable in four shield
configurations for any application:
FEMALE MODULAR
CONNECTORS
Smooth (no tabs and/or ribs)
❷
Deflector Ribs — deflect line-
of -sight radiation in windows
or gaps between connectors
(multiples) or panels to reduce
EMI leakage.
• Multiple points of contact.
• Mating Life: 750 cycles min. RC;
1000 cycles min. DT.
• H i g h re l i a b i l i t y, u n i q u e c o p p e r
alloy contact material.
• Leading edge rise time as low as
0.1 nanoseconds with high speed
data rates.
• Available from 4 contacts to 10
contacts.
• Low profile design occupies
minimal space.
• Universal panel opening fits all
connectors.
• Universal PCB layout for all jacks
from 4 to 10 contacts
• Available keyed or unkeyed
• Conforms to FCC Part 68 Sub-
part “F”, UL 1863, & IEC 603-7
(8 position).
• Tested 100%.
❸
Engaging Tabs — for secure
chassis/front panel mounting
and grounding to panel.
❹
Deflector Ribs and Engaging
Tabs.
D
ESIGN
A
DVANTAGES
• Impedance matching contact
configuration—ideal impedance
for all 100 ohm and/or 120 ohm
based telephony or metwork
systems.
• Lowest possible VSWR in a
modular connection—(1.1 VSWR
at 200 Mbps).
• Designed for high speed data
transmission (data rates up to
350 Mbps with nominal impedence
of 96 ohms)
• Large surface mating area for long
contact life.
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
487
Modular Connector
Female

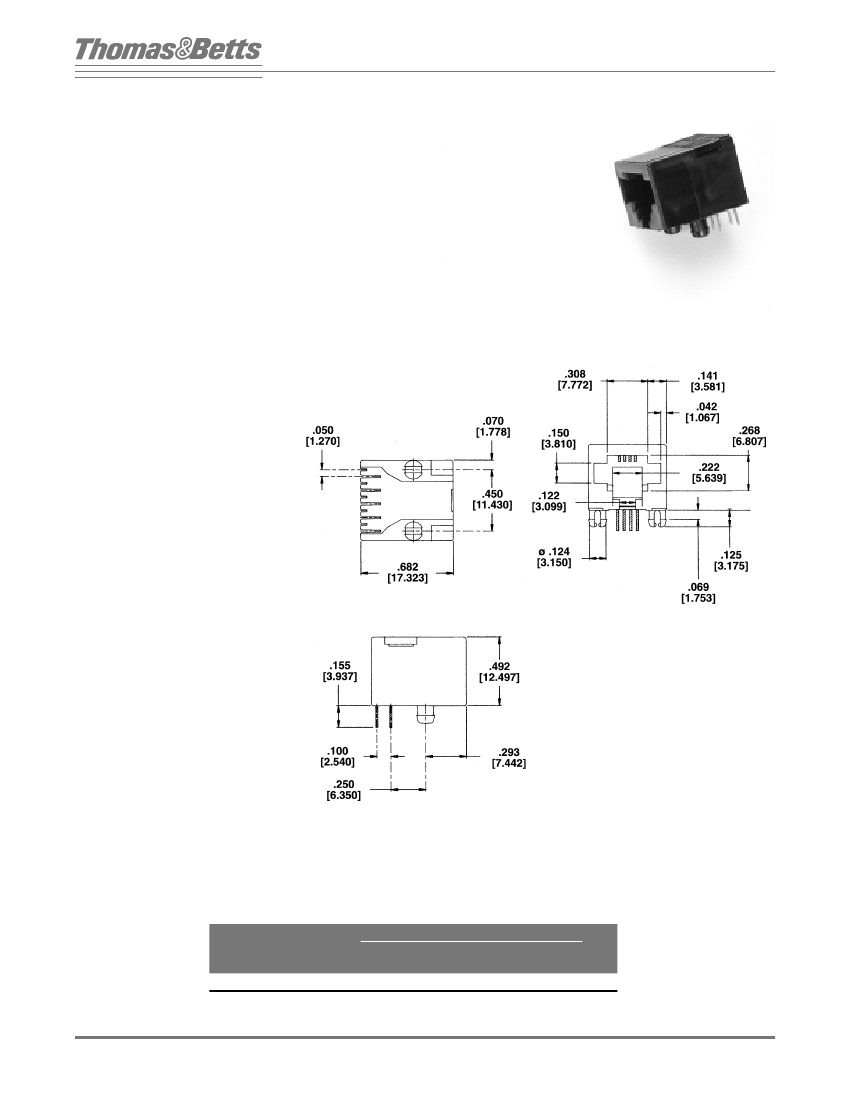

4 POSITION
LOW PROFILE FEMALE
CONNECTORS
DT & RC SERIES
P
HYSICAL
P
ROPERTIES
I
NSULATION
M
ATERIAL
:
High temperature thermo-
plastic rated UL 94V-0
I
NSULATOR
C
OLOR
:
Black
C
ONTACTS
:
High performance copper alloy
P
LATING
:
Nickel plate overall, gold finish in con-
tact zone,Tin/Lead on contact tails
I
NSERTION
F
ORCE
:
2 lbs max.
P
LUG
R
ETENTION
:
20 lb retention strength on PCB;
Prior to soldering: 20 lb;
After soldering: 20 lb.
D
URABILITY
:
DT series — Minimum of 1000 insertions and
withdrawals without degradation of performance.
RC series — Minimum of 750 insertions and
withdrawals without degradation of performance
Contacts are protected from overstress by small-
er modular plugs.
E
LECTRICAL
P
ROPERTIES
V
OLTAGE
R
ATING
:
DT Current Rating: 3 amps typ.
RC Current Rating: 2 amps typ.
I
NITIAL
C
ONTACT
R
ESISTANCE
:
5 milliohms max.
C
ONTACT
R
ESISTANCE
A
FTER
C
YCLING
:
10 milliohms
max. in accordance with durability specified
I
NSULATION
R
ESISTANCE
:
1000 megohms min.
D
IELECTRIC
W
ITHSTANDING
:
1300 VRMS @ 60 sec
duration
DT D
ATA
T
RANSMISSION
R
ATE
:
350+ Mbps
RC D
ATA
T
RANSMISSION
R
ATE
:
200+ Mbps
DT S
TANDING
W
AVE
R
EFLECTIONS
:
VSWR = 1.1
RC S
TANDING
W
AVE
R
EFLECTIONS
:
VSWR = 1.2
Ordering Information
# OF
CONTACTS
4
DT SERIES
STANDARD
GOLD
020-000-010
RC SERIES
STANDARD
GOLD
020-003-285
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in inches [mm].
488
Modular Connector
Female

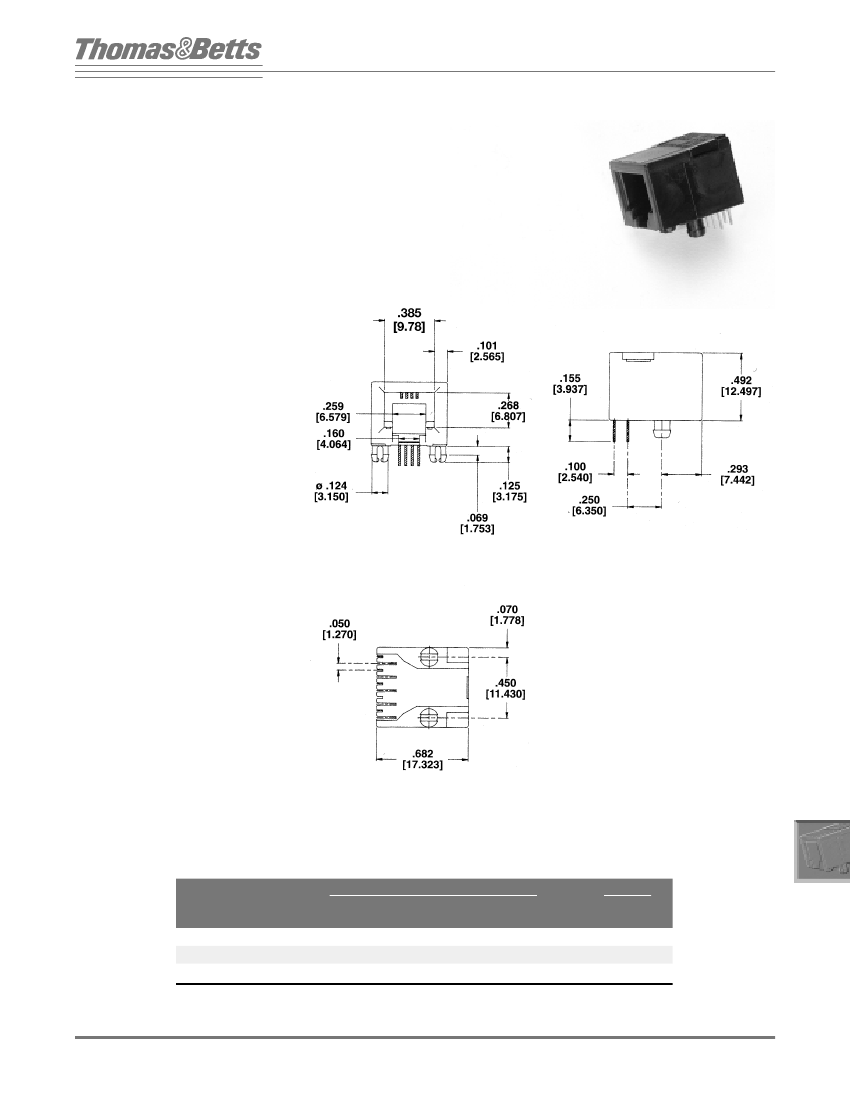

6 POSITION
LOW PROFILE FEMALE
CONNECTORS
DT & RC SERIES
P
HYSICAL
P
ROPERTIES
I
NSULATION
M
ATERIAL
:
High temperature thermo-
plastic rated UL 94V-0
I
NSULATOR
C
OLOR
:
Black
C
ONTACTS
:
High performance copper alloy
P
LATING
:
Nickel plate overall, gold finish in con-
tact zone,Tin/Lead on contact tails
I
NSERTION
F
ORCE
:
2 lbs max.
P
LUG
R
ETENTION
:
20 lb retention strength on PCB;
Prior to soldering: 20 lb;
After soldering: 20 lb.
D
URABILITY
:
DT series — Minimum of 1000 insertions and
withdrawals without degradation of performance.
RC series — Minimum of 750 insertions and
withdrawals without degradation of performance
Contacts are protected from overstress by small-
er modular plugs.
E
LECTRICAL
P
ROPERTIES
V
OLTAGE
R
ATING
:
DT Current Rating: 3 amps typ.
RC Current Rating: 2 amps typ.
I
NITIAL
C
ONTACT
R
ESISTANCE
:
5 milliohms max.
C
ONTACT
R
ESISTANCE
A
FTER
C
YCLING
:
10 milliohms
max. in accordance with durability specified
I
NSULATION
R
ESISTANCE
:
1000 megohms min.
D
IELECTRIC
W
ITHSTANDING
:
1300 VRMS @ 60 sec
duration
DT D
ATA
T
RANSMISSION
R
ATE
:
350+ Mbps
RC D
ATA
T
RANSMISSION
R
ATE
:
200+ Mbps
DT S
TANDING
W
AVE
R
EFLECTIONS
:
VSWR = 1.1
RC S
TANDING
W
AVE
R
EFLECTIONS
:
VSWR = 1.2
Ordering Information
# OF
CONTACTS
4
6
8
STANDARD
GOLD
020-000-229
020-000-186
020-000-024
DT SERIES
30
GOLD
020-001-280
020-001-161
—
50
GOLD
020-000-130
—
—
RC SERIES
STANDARD
GOLD
020-003-286
020-003-287
020-003-288
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in inches [mm].
489
Modular Connector
Female
8 POSITION
LOW PROFILE FEMALE
CONNECTORS
DT & RC SERIES
P
HYSICAL
P
ROPERTIES
I
NSULATION
M
ATERIAL
:
High temperature thermo-
plastic rated UL 94V-0
I
NSULATOR
C
OLOR
:
Black
C
ONTACTS
:
High performance copper alloy
P
LATING
:
Nickel plate overall, gold finish in con-
tact zone,Tin/Lead on contact tails
I
NSERTION
F
ORCE
:
2 lbs max.
P
LUG
R
ETENTION
:
20 lb retention strength on PCB;
Prior to soldering: 20 lb;
After soldering: 20 lb.
D
URABILITY
:
DT series — Minimum of 1000 insertions and
withdrawals without degradation of performance.
RC series — Minimum of 750 insertions and
withdrawals without degradation of performance
Contacts are protected from overstress by small-
er modular plugs.
E
LECTRICAL
P
ROPERTIES
V
OLTAGE
R
ATING
:
DT Current Rating: 3 amps typ.
RC Current Rating: 2 amps typ.
I
NITIAL
C
ONTACT
R
ESISTANCE
:
5 milliohms max.
C
ONTACT
R
ESISTANCE
A
FTER
C
YCLING
:
10 milliohms
max. in accordance with durability specified
I
NSULATION
R
ESISTANCE
:
1000 megohms min.
D
IELECTRIC
W
ITHSTANDING
:
1300 VRMS @ 60 sec
duration
DT D
ATA
T
RANSMISSION
R
ATE
:
350+ Mbps
RC D
ATA
T
RANSMISSION
R
ATE
:
200+ Mbps
DT S
TANDING
W
AVE
R
EFLECTIONS
:
VSWR = 1.1
RC S
TANDING
W
AVE
R
EFLECTIONS
:
VSWR = 1.2
Ordering Information
# OF
CONTACTS
4
6
8
10
STYLE
Keyed
Unkeyed
Keyed
Unkeyed
Keyed
Unkeyed
Keyed
Unkeyed
STANDARD
GOLD
020-000-821
020-003-340
020-003-339
020-000-212
020-000-184
020-000-023
020-000-069
020-000-068
DT SERIES
30
GOLD
—
020-003-467
—
—
020-001-289
020-001-287
020-001-244
020-001-668
50
GOLD
—
—
—
—
—
020-002-788
020-001-261
020-003-338
RC SERIES
STANDARD
GOLD
020-003-341
020-003-343
020-003-342
020-003-344
020-003-289
020-003-290
020-003-291.
020-003-292
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in inches [mm].
490
Modular Connector
Female
8 POSITION
LOW PROFILE FEMALE
CONNECTORS
DT SERIES
SHIELDED
P
HYSICAL
P
ROPERTIES
I
NSULATION
M
ATERIAL
:
High temperature thermo-
plastic rated UL 94V-0
I
NSULATOR
C
OLOR
:
Black
C
ONTACTS
:
High performance copper alloy
P
LATING
:
Nickel plate overall, gold finish in con-
tact zone,Tin/Lead on contact tails
S
HIELD
:
Brass, Bright tin plate
I
NSERTION
F
ORCE
:
2 lbs max.
P
LUG
R
ETENTION
:
20 lb retention strength on PCB;
Prior to soldering: 20 lb;
After soldering: 20 lb.
D
URABILITY
:
DT series — Minimum of 1000 insertions and
withdrawals without degradation of performance.
RC series — Minimum of 750 insertions and
withdrawals without degradation of performance
Contacts are protected from overstress by small-
er modular plugs.
.710
.100
(3x)
.044
(3x)
.030
.063
(3x)
.620
.468
.248
.160
.510
.379
.069
.155
.100
.250
.240
.061
.307
.125
ø .124
E
LECTRICAL
P
ROPERTIES
V
OLTAGE
R
ATING
:
DT Current Rating: 3 amps typ.
RC Current Rating: 2 amps typ.
I
NITIAL
C
ONTACT
R
ESISTANCE
:
5 milliohms max.
C
ONTACT
R
ESISTANCE
A
FTER
C
YCLING
:
10 milliohms
max. in accordance with durability specified
I
NSULATION
R
ESISTANCE
:
1000 megohms min.
D
IELECTRIC
W
ITHSTANDING
:
1300 VRMS @ 60 sec
duration
DT D
ATA
T
RANSMISSION
R
ATE
:
350+ Mbps
RC D
ATA
T
RANSMISSION
R
ATE
:
200+ Mbps
DT S
TANDING
W
AVE
R
EFLECTIONS
:
VSWR = 1.1
RC S
TANDING
W
AVE
R
EFLECTIONS
:
VSWR = 1.2
.050
.301
.070 TYP.
.030 TYP.
Keyed
.063
(3x)
.620
.468
.248
.160
.379
.480
.069
.106
.125
ø .124
.251
Ordering Information
# OF
CONTACTS
8
10
STYLE
Keyed
Unkeyed
Keyed
Unkeyed
DEFLECTOR
RIB
020-003-426
020-003-420
020-003-619
020-003-615
DEFLECTOR RIB
&
ENGAGING TAB
020-003-424
020-003-418
020-003-617
020-003-613
SMOOTH
WALL
020-003-425
020-003-419
020-003-618
020-003-614
SMOOTH WALL
WITH
ENGAGING TAB
020-003-427
020-003-421
020-003-620
020-003-616
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in inches.
491
