Spec Sheet
Multilayer Ceramic Capacitors (High dielectric type)
JMK107B7225KA-TR
Features
Item Summary
2.2uF±10%, 6.3V,
X7R, 0603/1608 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping paper 4000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
100 MΩ·μF
Yes
Yes
Yes
Reflow
2.2 uF ± 10 %
0603/1608
6.3 V
10 %
X7R
-55 to +125 ℃
200 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
1.6 ±0.10 mm
0.8 ±0.10 mm
0.8 ±0.10 mm
0.35 ±0.25 mm
2018.11.02
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

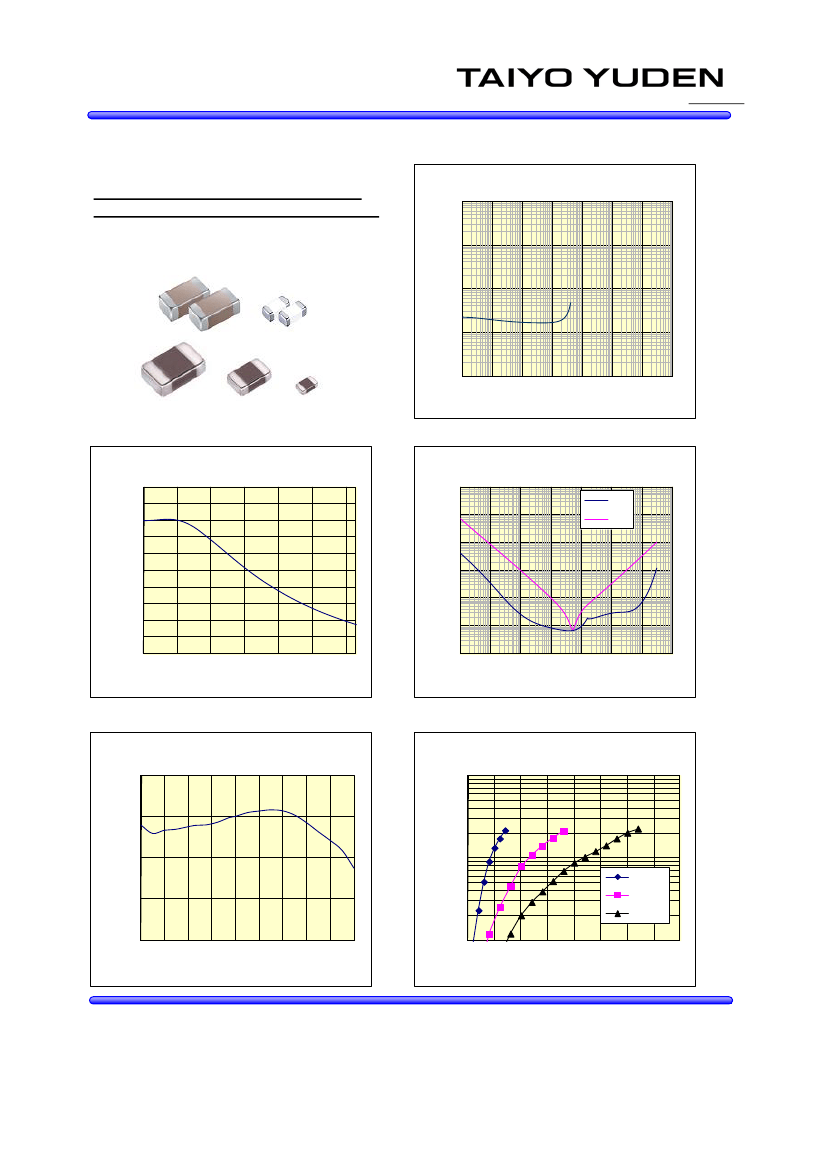

Multi Layer Ceramic Capacitor
○JMK107B7225KA-TR
6.3V 1608 X7R 2.2uF +/- 10% t=0.9mmMAX
6.3V 0603 X7R 2.2uF +/- 10% t=0.035inchMAX
1000
-Electrical Characteristics Data-
16R2A03
RoHS compliance product
JMK107B7225KA-TR
Capacitance Freq.
100
Capacitance[uF]
10
1
0.1
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
JMK107B7225KA-TR
DC Bias Char.
20
10
0
-10
-20
-30
-40
-50
-60
-70
-80
0
1
2
3
4
5
DC Bias Voltage[V]
6
1000
JMK107B7225KA-TR
Impedance,ESR Freq.
ESR
100
Z
Z,ESR[OHM]
10
1
dC/C[%]
0.1
0.01
0.001
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
JMK107B7225KA-TR
Capacitance Temp.
10
100
JMK107B7225KA-TR
Ripple Current
-10
dTemp.[degreeC]
0
dC/C[%]
10
10kHz
100kHz
1MHz
-20
-30
-55 -35 -15 5 25 45 65 85 105 125
Temperature[degreeC]
1
0
0.5
1
1.5 2 2.5 3
Ripple Current[Arms]
3.5
4
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
■
