442-40-202-00-594000 datasheet, PDF

Datasheet> All Categories > The connector> socket> 442-40-202-00-594000

442-40-202-00-594000: DescriptionIC Socket, DIP2, 2 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size125KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

442-40-202-00-594000 Overview

IC Socket, DIP2, 2 Contact(s), ROHS COMPLIANT

442-40-202-00-594000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	DIP SOCKET
Contact to complete cooperation	MATTE TIN (200) OVER NICKEL (150)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrie
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	DIP2
Shell material	PLASTIC
JESD-609 code	e3
Number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

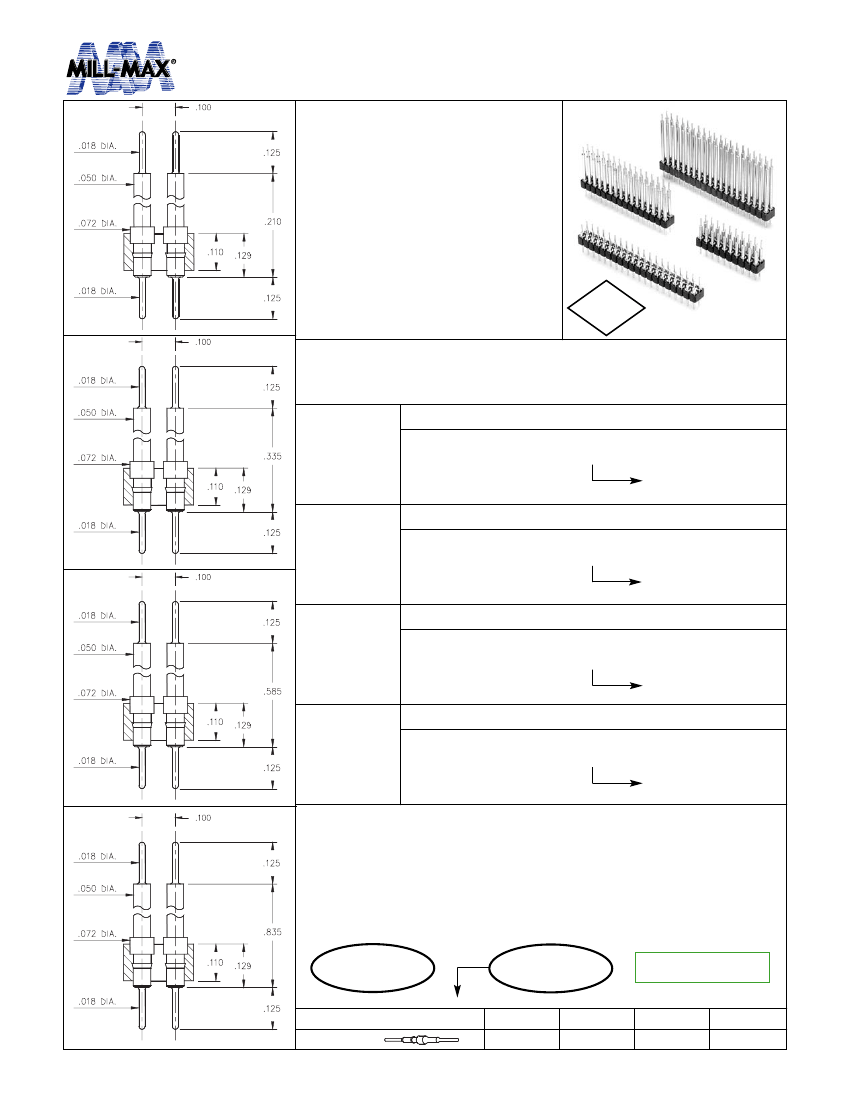

HEADER STRIPS

.100” Grid Board Stacking Headers

Double Row

Series 442

•

Series 442 Interconnect Header strips

come in four heights with .018” dia.

pluggable solder tails at both ends.

442...591 uses pin

442...592 uses pin

442...593 uses pin

442...594 uses pin

See pages 179 for

#4259-1

#4259-2

#4259-3

#4259-4

details.

(

.210” )

.335” )

.585” )

.835” )

•

Insulators are high temp. thermoplastic.

Fig. 1

2002/95/EC

RoHS

Ordering Information

Series 442...591

.018 / .018 Interconnect

Fig. 1

442-XX-2_ _-00-591000

Specify # of pins

Series 442...592

02-64

.018 / .018 Interconnect

Fig. 2

442-XX-2_ _-00-592000

Specify # of pins

Series 442...593

02-64

.018 / .018 Interconnect

Fig. 3

442-XX-2_ _-00-593000

Specify # of pins

Series 442...594

02-64

.018 / .018 Interconnect

Fig. 4

Fig. 3

442-XX-2_ _-00-594000

Specify # of pins

02-64

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

XX=Plating Code

See Below

For RoHS compliance

select

plating code.

SPECIFY PLATING CODE XX=

10μ” Au

200μ” Sn/Pb

200μ” Sn

Fig. 4

Pin Plating

w w w. m i l l - m a x . c o m

107

516-922-6000

442-40-202-00-594000 Related Products

	442-40-202-00-594000	442-90-202-00-593000	442-40-202-00-593000	442-10-202-00-593000	442-10-202-00-594000	442-90-202-00-594000
Description	IC Socket, DIP2, 2 Contact(s), ROHS COMPLIANT	IC Socket, DIP2, 2 Contact(s),	IC Socket, DIP2, 2 Contact(s), ROHS COMPLIANT	IC Socket, DIP2, 2 Contact(s), ROHS COMPLIANT	IC Socket, DIP2, 2 Contact(s), ROHS COMPLIANT	IC Socket, DIP2, 2 Contact(s),
Is it lead-free?	Lead free	Contains lead	Lead free	Lead free	Lead free	Contains lead
Is it Rohs certified?	conform to	incompatible	conform to	conform to	conform to	incompatible
Reach Compliance Code	compli	compli	compli	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Contact to complete cooperation	MATTE TIN (200) OVER NICKEL (150)	TIN LEAD (200) OVER NICKEL (150)	MATTE TIN (200) OVER NICKEL (150)	GOLD (10) OVER NICKEL (150)	GOLD (10) OVER NICKEL (150)	TIN LEAD (200) OVER NICKEL (150)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrie	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	DIP2	DIP2	DIP2	DIP2	DIP2	DIP2
Shell material	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC
JESD-609 code	e3	e0	e3	e4	e4	e0
Number of contacts	2	2	2	2	2	2
package instruction	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-
Other features	DIP SOCKET	DIP SOCKET	DIP SOCKET	-	-	DIP SOCKET
Base Number Matches	1	1	1	1	1	-
