0805HQ-2N5XJLB

Description
General Purpose Inductor, 0.0025uH, 5%, 1 Element, Ceramic-Core, SMD, 0907, CHIP, 0907, ROHS COMPLIANT
CategoryPassive components    inductor
File Size201KB,2 Pages
ManufacturerCOILCRAFT
Websitehttp://www.coilcraft.com/
Environmental Compliance
Download Datasheet Parametric View All

0805HQ-2N5XJLB Online Shopping

Suppliers Part Number Price MOQ In stock
0805HQ-2N5XJLB - - View Buy Now

0805HQ-2N5XJLB Overview

General Purpose Inductor, 0.0025uH, 5%, 1 Element, Ceramic-Core, SMD, 0907, CHIP, 0907, ROHS COMPLIANT

0805HQ-2N5XJLB Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerCOILCRAFT
package instruction0805
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
uppercase and lowercase codes0805
structureRectangular
core materialCERAMIC
DC Resistance0.02 Ω
Nominal inductance(L)0.0025 µH
Inductor ApplicationsRF INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package height1.52 mm
Package length2.29 mm
Package formSMT
Package width1.73 mm
method of packingTR
Minimum quality factor (at nominal inductance)80
Maximum rated current1.6 A
GuidelineAEC-Q200
self resonant frequency10300 MHz
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
special characteristicsQ IS MEASURED AT 1500 MHZ
surface mountYES
Terminal surfaceSilver/Palladium/Platinum - with Glass frit
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency250 MHz
Tolerance5%
Base Number Matches1
Document 197-1

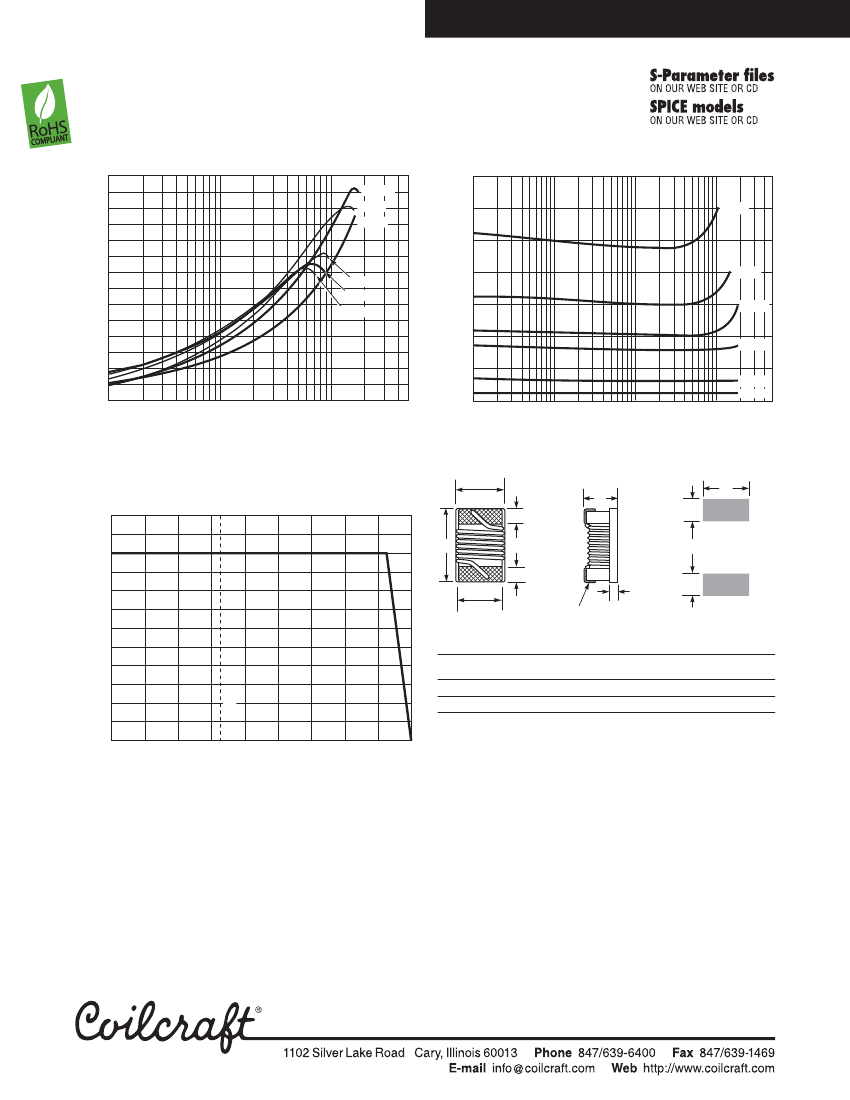

Chip Inductors– 0805HQ Series (2012)
The 0805HQ Series offers our highest Q factors in an
0805 form factor. In addition, current handling has been
improved with significantly lower DCR values.
Like all Coilcraft wire wound ceramic chip inductors, the
0805HQ Series provides exceptional SRFs, tight induc-
tance tolerance and batch consistency.
Inductance
2
(nH)
2.5 @ 250 MHz
5.6 @ 250 MHz
6.2 @ 250 MHz
12 @ 250 MHz
16 @ 250 MHz
18 @ 250 MHz
20 @ 250 MHz
27 @ 250 MHz
30 @ 250 MHz
39 @ 250 MHz
48 @ 200 MHz
51 @ 200 MHz
For even higher Qs, consider our surface mount spring
inductors that combine the high Q of an air wound coil
with the convenience of automatic placement.
Coilcraft
Designer’s Kit C325
contains samples of all
5% inductance tolerance parts. To order, contact Coil-
craft or visit
http://order.coilcraft.com.
SRF min
5
(GHz)
10.30
6.10
4.75
3.00
2.95
2.55
2.05
2.00
1.95
1.60
1.40
1.40
Part
number
1
Percent
tolerance
3
5
5
5
5
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
Q
min
4
DCR max
6
(Ohms)
0.020
0.035
0.035
0.045
0.060
0.060
0.055
0.070
0.095
0.110
0.095
0.120
Irms
7
(A)
1.6
1.6
1.6
1.6
1.5
1.4
1.4
1.3
1.2
1.1
1.2
1.0
Color
code
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
Black
Brown
0805HQ-2N5X_L_
0805HQ-5N6X_L_
0805HQ-6N2X_L_
0805HQ-12NX_L_
0805HQ-16NX_L_
0805HQ-18NX_L_
0805HQ-20NX_L_
0805HQ-27NX_L_
0805HQ-30NX_L_
0805HQ-39NX_L_
0805HQ-48NX_L_
0805HQ-51NX_L_
80 @ 1500 MHz
98 @ 1500 MHz
88 @ 1000 MHz
80 @ 1000 MHz
72 @ 500 MHz
75 @ 500 MHz
70 @ 500 MHz
75 @ 500 MHz
65 @ 500 MHz
65 @ 500 MHz
65 @ 500 MHz
65 @ 500 MHz
1. When ordering, specify
tolerance, termination
and
packaging
codes:
0805HQ-51NXJLC
Tolerance:
G
= 2%
J
= 5% (Table shows stock tolerances in bold.)
Termination: L
= RoHS compliant silver-palladium-platinum-glass frit.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (2000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape. Factory order only, not stocked (7500 parts per
full reel).
2. Inductance measured using a Coilcraft SMD-A fixture in an Agilent/
HP 4286 impedance analyzer with Coilcraft-provided correlation pieces.
3. Tolerances in bold are stocked for immediate shipment.
4. Q measured using an Agilent/HP 4291A with an Agilent/HP 16193 test
fixture.
5. For SRF less than 6 GHz, measured using an Agilent/HP 8753D network
analyzer and a Coilcraft SMD-D test fixture. For SRF greater than 6 GHz,
measured using an Agilent/HP 8722ES network analyzer and a Coilcraft
SMD-D test fixture.
6. DCR measured on a Cambridge Technology micro-ohmmeter and a
Coilcraft CCF840 test fixture.
7. Current that causes a 15°C temperature rise from 25°C ambient.
8. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Core material
Ceramic
Terminations
RoHS compliant silver-palladium-platinum-glass frit.
Other terminations available at additional cost.
Weight
10.5 – 12.5 mg
Ambient temperature
–40°C to +125°C with
Irms
current, +85°C to
+140°C with derated current
Storage temperature
Component: –40°C to +140°C.
Packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +125 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
One per billion hours / one billion hours, calculated per Telcordia SR-332
Packaging
2000/7″ reel; 7500/13″ reel. Plastic tape: 8 mm wide,
0.23 mm thick, 4 mm pocket spacing, 1.65 mm pocket depth
PCB washing
Only pure water or alcohol recommended
Specifications subject to change without notice.
Please check our website for latest information.
Document 197-1
Revised 10/06/08
© Coilcraft, Inc. 2009
