1-1123349-2: Description16 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE; CategoryThe connector The connector; File Size111KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

1-1123349-2 Overview

16 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE

1-1123349-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1667212253
Reach Compliance Code	unknown
YTEOL	0
Other features	PANEL MOUNTABLE
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	YES
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	2
Options	GENERAL PURPOSE
Total number of contacts	16
UL Flammability Code	94V-0

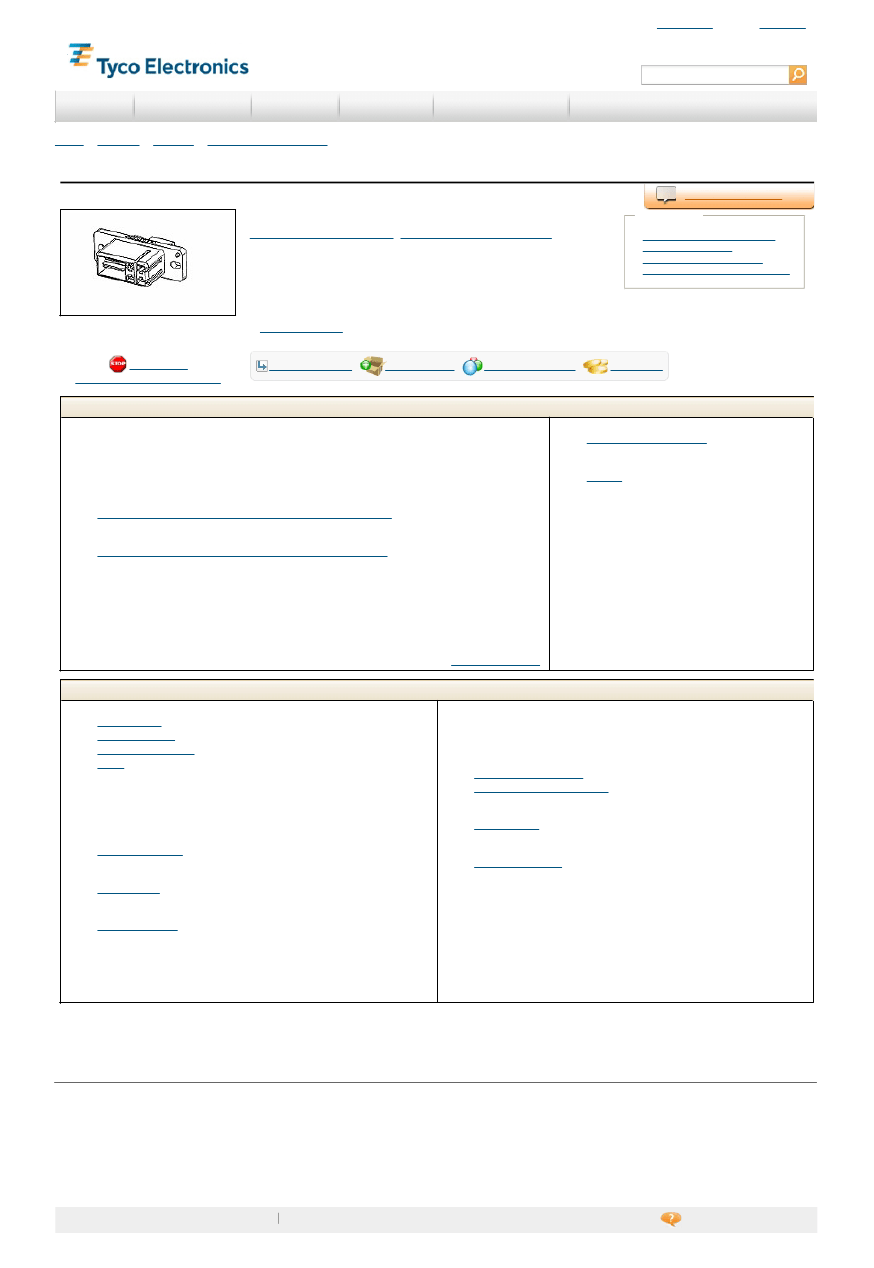

Preview

Download Datasheet

View All

My Account

Tyco Electronics

(C hange)

Se arch by Ke yword or Part #

Products

Documentation

Resources

My Account

Customer Support

Home

Products

By Type

Product Feature Selector

> Product Details

1-1123349-2 Product Details

Live Product Chat

1.5mm AMP Mini CT Connectors

Not EU R oHS or ELV C om pliant

(

Find R oHS C om pliant Alte rnate s

)

Quick Links

C heck Pricing & Availability

Search for Tooling

Product Feature Selector

C ontact Us About This Product

1-1123349-2

T E I nternal N umber: 1 - 1 1 2 3 3 4 9 - 2

Product Highlights:

Receptacle Assembly

C onnector Type = Hybrid Drawer C onnector

4-12 Positions

With Panel Attachment

Terminate To Wire

View all Features

Superseded

Search for Replacement Parts

A dd to M y P art L is t

Reques t Sample

Find Similar P roduc ts

Buy P roduc t

Documentation & Additional Information

Product Drawings:

None Available

Catalog Pages/Data Sheets:

None Available

Product Specifications:

AMP MINI C T HYBRID DRAWER C ONNEC TOR (1.5MM PITC H)

(PDF, English)

Application Specifications:

C rimping Hybrid Mini Drawer C onnector Power Line C ontact

(PDF, English)

Instruction Sheets:

None Available

CAD Files:

None Available

List all Documents

Product Features

(Please use the Product Drawing for all design activity)

Product Type Features:

Product Type

= Receptacle Assembly

C onnector Type

= Hybrid Drawer C onnector

Number of Positions

= 4-12

C olor

= Black

Wire Insulation Diameter (mm [in]) = 0.80 – 0.95 [0.032 – 0.037]

C omment = 4 Power C ontacts (Unassembled), 12 Signal C ontacts

(Assembled); Power contacts purchased separately - see customer

drawing

Mechanical Attachment:

Panel Attachment

= With

Electrical Characteristics:

High C urrent

= No

Body Related Features:

Number of Rows

= 2

Contact Related Features:

C ontact Base Material = Brass

C ontact Plating, Mating Area, Material = Gold

Housing Related Features:

Housing Material = PBT - GF

Housing Flammability Rating = UL 94V-0

Industry Standards:

RoHS/ELV C ompliance

= Not ELV/RoHS compliant

Lead Free Solder Processes

= Not relevant for lead free process

Conditions for Usage:

Terminate To

= Wire

Packaging Related Features:

Packaging Method

= Loose Piece

Other:

Brand = AMP

Additional Information:

Product Line Information
