1-173317-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1-173317-2

1-173317-2: DescriptionINTERCONNECTION DEVICE; CategoryThe connector The connector; File Size69KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1-173317-2 Overview

INTERCONNECTION DEVICE

1-173317-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	unknown
Is Samacsys	N
Other features	NO. OF CONTACT: 1, CABLE LENGTH: 1200MM, MALE-MALE, PLUG-PLUG
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

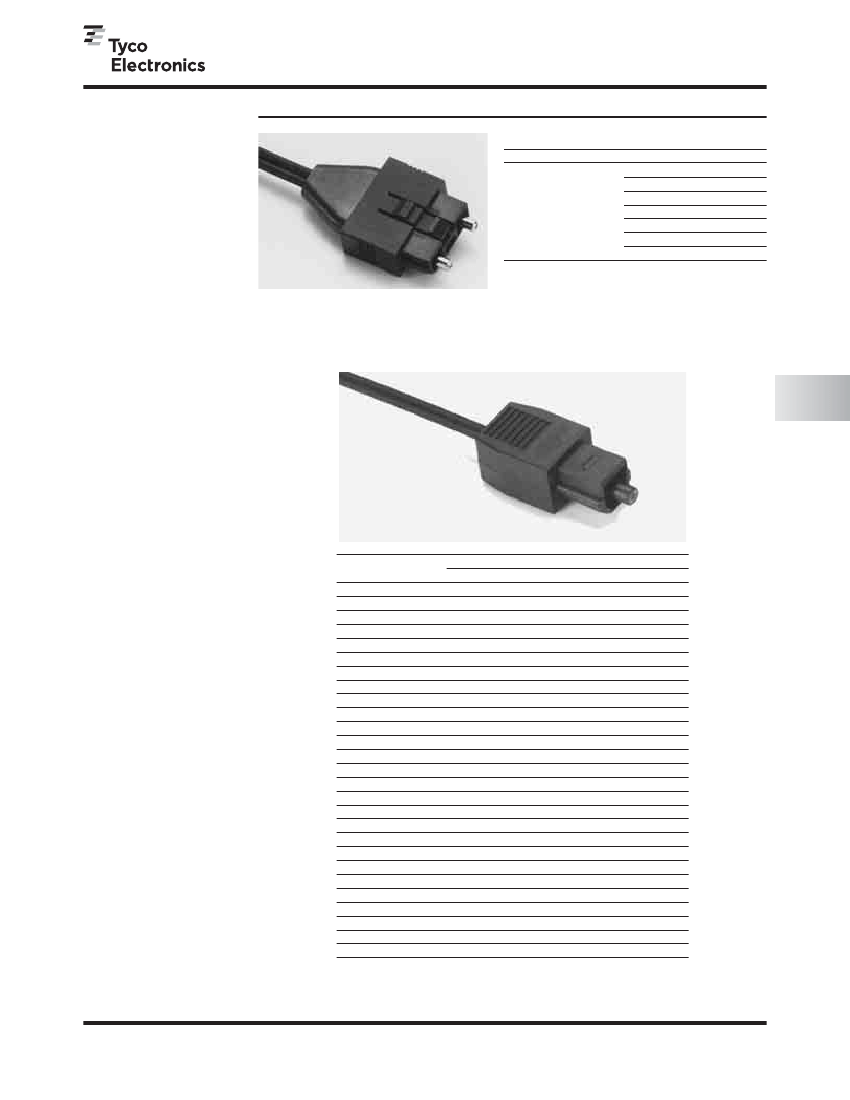

Fiber Optic Products Catalog

Plastic Fiber Cable Assemblies

F07 Duplex Plastic Fiber

Cable Assemblies

Product Facts

■

Fiber Type

Length

Part Number

5492155-1

5492155-2

5492155-3

5492155-4

5492155-5

5492155-6

5492155-7

Standard and custom

lengths

Conforms to JISC-5976

980/1000 µm

Plastic Optical Fiber

Cable Assemblies &

Backplane Interconnects

Audio-DNP Plastic Fiber

Cable Assemblies

Product Facts

■

Complies with EIAJ RC-5720

for digital audio equipment

and Japan Industry STD F05

Compatible with TDSLink

Mates with receptacle

configuration CNF50SR3

Type per EIAJ RC-5720

Economical and highly

reliable based on Tyco

Electronics’ high speed

automatic assembly

technologies

Cable assemblies available

with or without logo

980/100 µm POF cable with

UL VW-1 rating

Length

(mm)

300

400

500

600

700

800

900

1000

1100

1200

1300

1400

1500

1600

1700

1800

1900

2000

2500

3000

3500

4000

4500

5000

5500

6000

10000

Cable Assembly Part Number

Without Logo

With Logo

178671-3

173317-3

178671-4

173317-4

178671-5

173317-5

178671-6

173317-6

178671-7

173317-7

178671-8

173317-8

178671-9

173317-9

1-178671-0

1-173317-0

1-178671-1

1-173317-1

1-178671-2

1-173317-2

1-178671-3

1-173317-3

1-178671-4

1-173317-4

1-178671-5

1-173317-5

1-178671-6

1-173317-6

1-178671-7

1-173317-7

1-178671-8

1-173317-8

1-178671-9

1-173317-9

2-178671-0

2-173317-0

2-178671-1

—

2-178671-2

—

2-178671-3

—

2-178671-4

—

2-178671-5

—

2-178671-6

—

2-178671-7

—

2-178671-8

—

3-178671-6

—

■

Applications

■

I/O and internal cabling of

AV, OA, and FA equipment

plus automotive internal

networking

Performance Characteristics

Operating Temperature

—

-30 C to +80 C

Max. Insertion Loss

— 3.5 dB

Connector Mating Force

—

4 Kg max.

Connector Unmating Force

—

0.4 to 4 Kg

Cable Retaining Strength

—

5 Kg min.

Note:

All part numbers are RoHS compliant.

135

Catalog 1307895

Revised 11-07

www.tycoelectronics.com

Dimensions are in millimeters

and inches unless otherwise

specified. Values in brackets

are standard equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-1106-0803

South America: 55-11-2103-6000

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 31-73-624-6639
