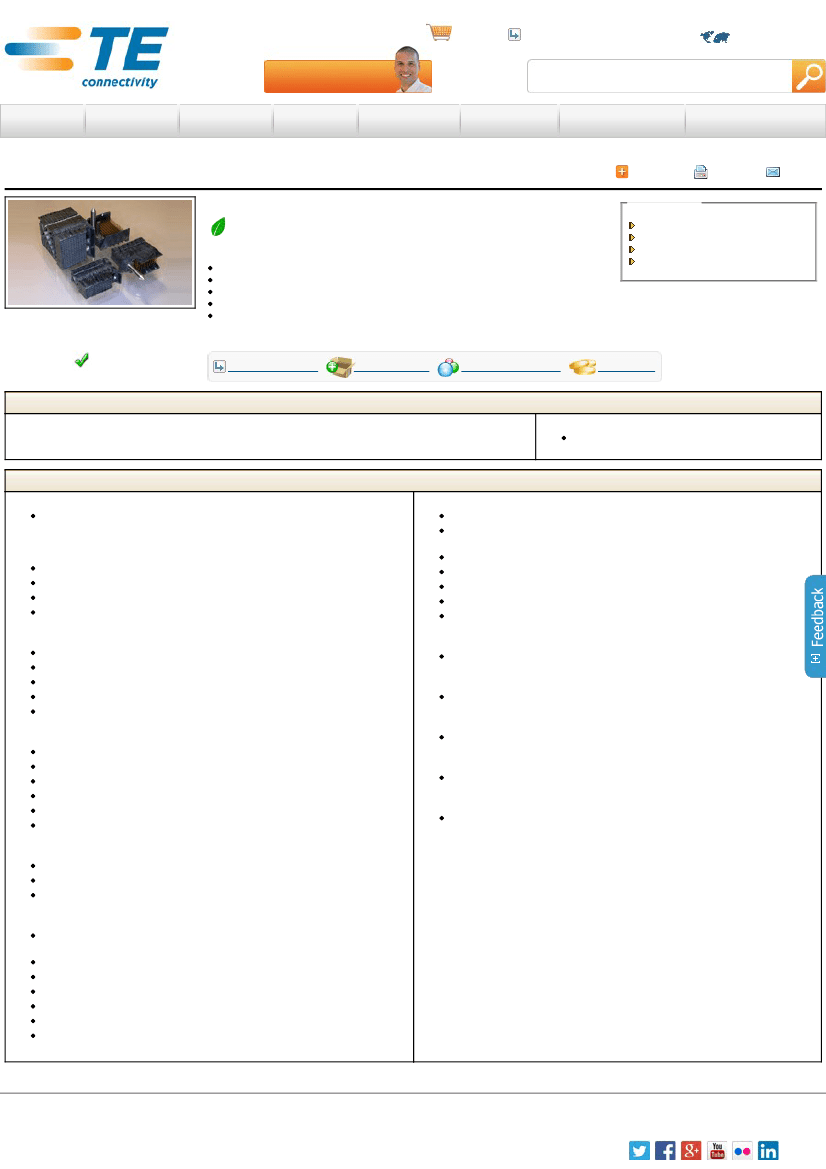

121988462 Product Details
Impact High Density Backplane Connectors
Always EU RoHS/ELV Compliant
(
Statement of Compliance
)
Product Highlights:
Connector Style = Receptacle
80/Signal, 40/Ground
120 Positions
BoardtoBoard Configuration = Right Angle
Number of Differential Pairs Per Column = 5
View all Features
Share
Print
Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
121988462
TE Internal Number: 121988462
Active
Add to My Part List
Request Sample
Find Similar Products
Buy Product
Documentation & Additional Information
Documents are temporarily unavailable. We are working hard to correct the problem. Please try
again later.
Related Products:
Tooling
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
PCB Mount Retention Type = Action/Compliant Tail and Screw(s),
Locating Post(s)
Electrical Characteristics:
Impedance (Ω) = 85
Operating Voltage Reference = AC/DC
Operating Voltage (VAC) = 120
Operating Voltage (VDC) = 120
Dimensions:
Tail Length (mm [in]) = 1.2 [0.047]
Length (XAxis) (mm [in]) = 22.80 [0.898]
Width (ZAxis) (mm [in]) = 32.30 [1.272]
Profile Height (YAxis) (mm [in]) = 21.50 [0.846]
PCB Hole Diameter (mm [in]) = 0.39 [0.015]
Contact Features:
Contact Type = Socket
Contact Plating, Termination Area, Material = Matte Tin
Contact Plating, Termination Area, Thickness (µm [μin]) = 1.27 [50]
Contact Base Material = CopperNickelSilicon
Underplate Material = Nickel
Underplate Material Thickness (µm [μin]) = 1.27 [50.000]
Housing Features:
Connector Style = Receptacle
Housing Color = Gray
Housing Material = Liquid Crystal Polymer (LCP)
Configuration Features:
Connector Contact Configuration (No. of Pos./Type) = 80/Signal,
40/Ground
Number of Positions = 120
Number of Differential Pairs Per Column = 5
Number of Columns = 8
Number of Rows = 15
Guide Location = Left
Tail Orientation = Inline
Industry Standards:
RoHS/ELV Compliance = RoHS compliant, ELV compliant
Lead Free Solder Processes = Not reviewed for lead free solder
process
RoHS/ELV Compliance History = Always was RoHS compliant
UL Rating = Recognized
UL File Number = E28476
UL Flammability Rating = UL 94V0
CSA Certified = Yes
Environmental:
Operating Temperature (°C [°F]) = 55 – +85 [67 – +185]
Conditions for Usage:
BoardtoBoard Configuration = Right Angle
Operation/Application:
Industry Application = Networking (Communications)
Packaging Features:
Packaging Method = Tube
Other:
Brand = TE Connectivity
