Ribbon Cable
Interconnect Solutions
Ribbon Cable Interconnect Solutions
Ribbon Cable Connector Selection Guide
Ribbon Cable Connector Selection Guide
.025" [0.64 mm]
Cable Pitch
.039" [1.00 mm]
Cable Pitch
Mates to .050" x .100"
2-Row Pin Header
Grid
Pages 10 and 11
Mates to .100" x .100"
2-Row Pin Header
Grid
Page 15
Solders to
.075" x .100"
4-Row PCB Layout
Mates to .078" [2 mm]
x .078" [2 mm]
2-Row Pin Header
Grid
See 5176264, 5178751 Series
and Part Number 1775109
(Not in this Catalog)
System 50
Receptacles
Pages 8-11
Ultra ATA Bus
Receptacles
Pages 13-15
System 50
Paddleboard
Page 12
2 mm
Receptacle
Connectors
Pages 16 and 17
.050" [1.27 mm]
Cable Pitch
Mates to .50" x .50"
Micro-MaTch
Female Top Entry,
215079 Series,
PCB Connector
Page 8
Mates to .050" x .050"
Micro-MaTch
Female Side Entry,
215460 Series,
PCB Connector
Page 9
Mates to .050" x .050"
Micro-MaTch
Female Top Entry
SMD, 188275 Series,
PCB Connector
Page 10
Solders directly to
2.54mm x 1.27mm
Staggered 2 row
PCB Footprint
Male-on-Wire
215083 Series,
Page 12
Male-on-Wire
215083 Series,
Page 12
Male-on-Wire
215083 Series,
Page 12
Paddle Board
Connector,
215570 Series,
Page 13
.050" [1.27 mm]
Cable Pitch
(Continued)
Mates to 50" x 50"
Right-Angle
Headers
Mates to 50" x 50"
Vertical Headers
50/50 Grid
Receptacle
Connector with or
without latch
50/50 Grid
Receptacle
Connectors
without latch
2
Catalog 82012
Revised 4-12
www.te.com
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
Dimensions are in inches
and millimeters unless
otherwise specified.
USA: +1 (800) 522-6752
Canada: +1 (905) 475-6222
Mexico/C. Am.: +52 (0) 55-1106-0800
Latin/S. Am.: +54 (0) 11-4733-2200
Germany: +49 (0) 6251-133-1999
UK: +44 (0) 800-267666
France: +33 (0) 1-3420-8686
Netherlands: +31 (0) 73-6246-999
China: +86 (0) 400-820-6015
Ribbon Cable Interconnect Solutions
Ribbon Cable Connector Selection Guide
(Continued)
Ribbon Cable Connector Selection Guide
.050" [1.27 mm]
Cable Pitch
(Continued)
Mates to .100" x .100"
Novo Type Female
Socket Connector
Pages 48-51
Mates to .100" x .100"
3-Row Eurocard
Type C & R
See Catalog 82721
Mates to .100" x .100"
2-Row Universal or
Low-Profile Headers
Pages 75-96
Universal I/O
Pin Connectors
Pages 45 and 46
EUROLATCH
Receptacles
Page 47
Novo
Connectors
Pages 48-51
622 and 636
Series Female
Socket Connectors
Pages 52 and 53
609 Series
Female
Socket Connectors
Pages 54 and 55
.050" [1.27 mm]
Cable Pitch
(Continued)
Mates to
2-Row DIP Sockets
or Solders to PCB
Solders to
.050" x .100"
4-Row PCB Footprint
.100" x .100"
Footprint
.100" x .300"
Footprint
.100" x .600"
Footprint
609 Series
DIP Plugs
Page 56
622 and
636 Series
DIP Plugs
Page 57
TE Connectivity
DIP Plugs
Page 58
TE Connectivity
DIP Plugs
Page 59
TE Connectivity
DIP Plugs
Page 60
Solder
Transition
Connectors
Page 61
3
Catalog 82012
Revised 4-12
www.te.com
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
Dimensions are in inches
and millimeters unless
otherwise specified.
USA: +1 (800) 522-6752
Canada: +1 (905) 475-6222
Mexico/C. Am.: +52 (0) 55-1106-0800
Latin/S. Am.: +54 (0) 11-4733-2200
Germany: +49 (0) 6251-133-1999
UK: +44 (0) 800-267666
France: +33 (0) 1-3420-8686
Netherlands: +31 (0) 73-6246-999
China: +86 (0) 400-820-6015
Ribbon Cable Interconnect Solutions
Introduction
Disclaimer
While TE has made every reasonable
effort to ensure the accuracy of the
information in this catalog, TE does
not guarantee that it is error-free, nor
does TE make any other representation,
warranty or guarantee that the informa-
tion is accurate, correct, reliable or
current. TE reserves the right to make
any adjustments to the information
contained herein at any time without
notice. TE expressly disclaims all implied
warranties regarding the information
contained herein, including, but not
limited to, any implied warranties of
merchantability or fitness for a particular
purpose. The dimensions in this catalog
are for reference purposes only and
are subject to change without notice.
Specifications are subject to change
without notice. Consult TE for the latest
dimensions and design specifications.
© 2012, 2009, 1999, 1998, 1996, 1995,
1993, 1992, 1989, 1988, 1986, 1985,
1983, 1982, 1977, 1976, 1974 and 1973
Tyco Electronics Corporation.
All Rights Reserved.
AMP, AMPLIMITE, AMPMODU, CHAMP,
EUROLATCH, TE Connectivity and the
TE connectivity (logo) are trademarks
of the TE Connectivity Ltd. family of
companies.
Other logos, product and Company
names mentioned herein may be
trademarks of their respective owners.
Restriction on the use of Hazardous Substances
(RoHS)
At TE Connectivity, we’re ready to support your RoHS require-
ments. We’ve assessed more than 1.5 million end items/com-
ponents for RoHS compliance, and issued new part numbers
where any change was required to eliminate the restricted mate-
rials. Part numbers in this catalog are identified as:
RoHS Compliant
— Part numbers in this catalog are RoHS
Compliant, unless marked otherwise. These products comply
with European Union Directive 2002/95/EC as amended 1
January 2006 that restricts the use of lead, mercury, cadmium,
hexavalent chromium, PBB, and PBDE in certain electrical and
electronic products sold into the EU as of 1 July 2006.
NOTE: For purposes of this Catalog, included within the defini-
tion of RoHS Compliant are products that are clearly “Out of
Scope” of the RoHS Directive such as hand tools and other
non-electrical accessories.
NOTE: Information regarding RoHS compliance is provided
based on reasonable inquiry of our suppliers and represents our
current actual knowledge based on the information provided by
our suppliers. This information is subject to change. For latest
compliance status, refer to our website referenced at right.
Getting the Information You Need
Our comprehensive on-line RoHS Customer Support Center
provides a forum to answer your questions and support your
RoHS needs. A RoHS FAQ (Frequently Asked Questions) is
available with links to more detailed information. You can also
submit RoHS questions and receive a response within 24 hours
during a normal work week. The Support Center also provides:
I
Cross-Reference from
Non-compliant to Compliant Products
I
Ability to browse RoHS
Compliant Products in our
on-line catalog
I
Downloadable Technical Data
Customer Information
Presentation
I
More detailed information
regarding the definitions
used above
I
So whatever your questions when it comes to RoHS, we
have the answers at www.te.com/leadfree
RoHS
Customer
Support
Center
4
Catalog 82012
Revised 4-12
www.te.com
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
Dimensions are in inches
and millimeters unless
otherwise specified.
USA: +1 (800) 522-6752
Canada: +1 (905) 475-6222
Mexico/C. Am.: +52 (0) 55-1106-0800
Latin/S. Am.: +54 (0) 11-4733-2200
Germany: +49 (0) 6251-133-1999
UK: +44 (0) 800-267666
France: +33 (0) 1-3420-8686
Netherlands: +31 (0) 73-6246-999
China: +86 (0) 400-820-6015
Ribbon Cable Interconnect Solutions
Introduction
(Continued)

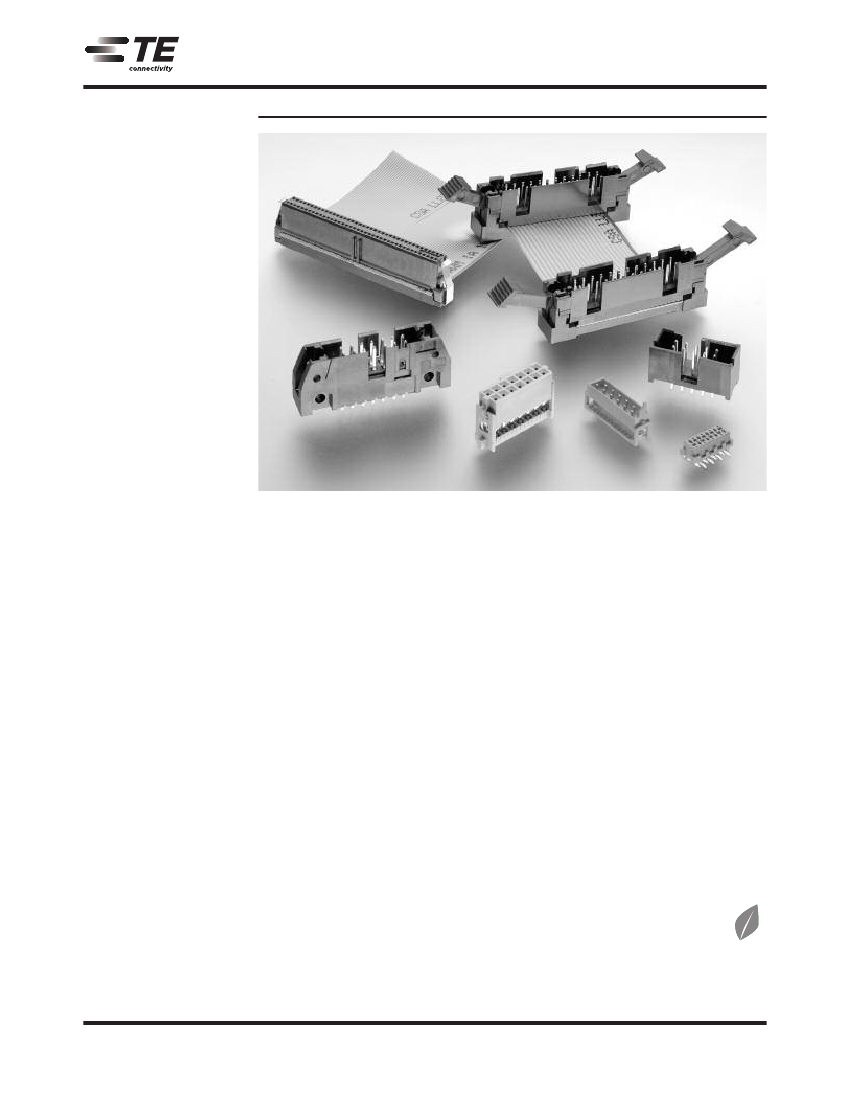

Mass termination capabili-
ties of the ribbon cable
connectors
have helped
make ribbon cable, and
particularly .050 [0.127]
centerline cable, popular
within the Electronics
Industry. The ability to termi-
nate up to 64 conductors
simultaneously, without
stripping or otherwise pre-
paring the cable, presents
obvious labor savings.
Ribbon Cable Connectors
are wire-to-board devices
used to make the transition
between cable and pc
board circuitry. They find
heavy use within equipment
to connect one board to
another or one subsystem
to another. The connectors
are also used in input/out-
put applications, connecting
different pieces of equipment.
Ribbon Cable Solutions
are
available on three separate
cable centerline spacings.
They include:
.025 [0.64] Centerlines
I
System 50 receptacles
I
System 50 paddleboards
I
Pin headers
.039 [1.00] Centerlines
I
2.0 mm receptacles
I
Breakaway pin headers
.050 [1.27] Centerlines
50/50 Grid connectors
I
Micro-MaTch connectors
I
Novo Receptacle
connectors
I
DIP plugs
I
EUROLATCH receptacle
connectors per DIN
41612 and IEC 603-2
I
Pin Headers
I
ductor and the .015
2
[0.38
2
]
posts on .050 x .100 [1.27 x
2.54] grid. Also available in
paddleboard configurations.
2.0 mm [.079] ribbon
cable receptacles
feature
contacts on a true 2.0 mm
[.079 in.] mating grid for
1.0 mm [.039 in.] pitch
ribbon cable. Select
configurations are available
between 8 and 50-positions.
Receptacles feature
insulation displacement
contacts (IDC).
50/50 Grid connectors
Although AMPMODU 50/50
Grid Vertical Headers and
Receptacles are designed
for parallel board-to-board
stacking in high density
applications, Right-angle
board-to-board and cable-
to-board applications are
also possible since the
vertical receptacles also
mate with non-latching
right-angle headers and the
vertical headers also mate
with non-latching cable con-
nectors.
Micro-Match connectors
Miniaturization and the trend
towards higher density of
electronic functions on a
substrate led to the intro-
duction of Micro-MaTch. The
system offers a range of
board and wire connectors,
enabling a variety of wire-to-
board and board-to-board
interconnections. Its design
prevents the traditional
failure mode in tin-plated
connections, fretting corro-
sion. An additional position-
ing spring in the female part
absorbs relative movements
caused by vibrations and
thermal expansion between
male and female contacts.
By preventing movements
on the contact spot, a gas
tight connection can be
guaranteed under all
circumstances.
Novo receptacles
feature
two rows of contacts on
.100 x .100 [2.54 x 2.54]
centers on selected sizes
of 10 thru 64-positions
and mate with .025 [0.64]
square or round posts. The
Novo tuning-fork contact
offers a military-approved
design, at an affordable
cost. Polarization options
include military, center and
military, or dual bar.
DIP (Dual In-Line Package)
plugs
provide a permanent
connection of ribbon cable
to a pc board or mating
to DIP sockets. Using the
same centerline dimensions
as DIP integrated circuits,
DIP plugs offer space
efficiency and a low profile
of .253 [6.43].
System 50 ribbon cable
receptacles
will terminate
cable on .025 [0.64] center-
lines. They are available in
select sizes from 20 thru
100-positions, and accept
wire size range 30 AWG
[0.05 mm
2
] solid or
stranded wire and 32 AWG
[0.03 mm
2
] stranded pvc
insulated wire. Housing and
cover are made of high tem-
perature tolerant thermo-
plastic material, black, UL
94V-0 rated. A single mating
beam, phosphor bronze
contact provides the inter-
connect between the con-
Need more information?
Call Technical Support at
the numbers listed below.
Technical Support is staffed
with specialists well versed
in all TE products. They can
provide you with:
I
Technical Support
I
Catalogs
I
Technical Documents
I
Product Samples
I
TE Authorized Distributor
Locations
5
Catalog 82012
Revised 4-12
www.te.com
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
Dimensions are in inches
and millimeters unless
otherwise specified.
USA: +1 (800) 522-6752
Canada: +1 (905) 475-6222
Mexico/C. Am.: +52 (0) 55-1106-0800
Latin/S. Am.: +54 (0) 11-4733-2200
Germany: +49 (0) 6251-133-1999
UK: +44 (0) 800-267666
France: +33 (0) 1-3420-8686
Netherlands: +31 (0) 73-6246-999
China: +86 (0) 400-820-6015
京公网安备 11010802033920号
EEWORLD
