1401-0-15-15-3027-10-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 1401-0-15-15-3027-10-0

1401-0-15-15-3027-10-0: DescriptionPCB Terminal, ROHS COMPLIANT; CategoryThe connector terminals; File Size143KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

1401-0-15-15-3027-10-0 Overview

PCB Terminal, ROHS COMPLIANT

1401-0-15-15-3027-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
terminal gender	MALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

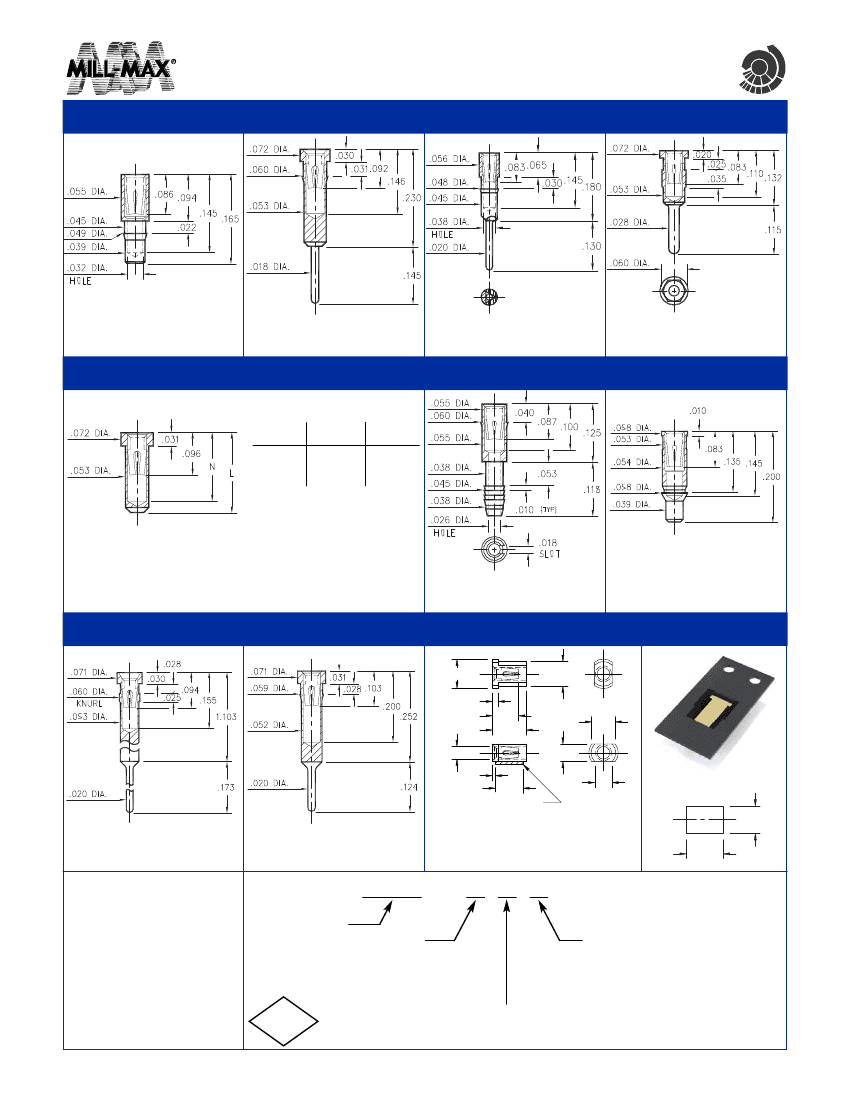

PIN RECEPTACLES

for .015” - .025” diameter pins

CHI

PINS

0385

4001

1782

5960

0385-0-15-XX-43-XX-10-0

Press-fit in .046 mounting hole

4001-0-15-XX-43-XX-04-0

Press-fit in .057 mounting hole

1782-0-15-XX-43-XX-04-0

Press-fit in .045 mounting hole

5960-0-15-XX-43-XX-04-0

Hex press-fit in .057 plated

thru hole

1401/3185

Basic Part

Number

Depth

Length

4310

1385

1401-0

3185-0

.145

.109

.165

.130

XXXX-0-15-XX-30-XX-10-0

Solder mount in .055 min. mounting hole

Also available on 16mm wide carrier

tape: 1,700 parts per 13” reel.

Order as: XXXX-0-57-XX-30-XX-10-0

4310-0-31-XX-43-XX-04-0

Compliant press-fit in .040±.003 plated

hole. For .090→.130 thick board.

1385-0-15-XX-43-XX-10-0

Surface mount

3018

8852

3907

.100 DIA.

.084 DIA.

.020

.083

.115

.043 DIA.

.010

.095

P.C.B. PAD

.060

.080

.059

P.C.B. Layout

3907-0-18-XX-30-XX-10-0

3018-0-15-XX-30-XX-04-0

Press-fit in .057 mounting hole

.069

8852-0-15-XX-30-XX-04-0

Press-fit in .056 mounting hole

Surface mount

Also available on 12mm wide carrier

tape: 4,000 parts per 13” reel.

Order as: 3907-0-58-XX-30-XX-10-0

.095

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - XX - XX - XX - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

200μ” TIN/LEAD OVER NICKEL



200μ” TIN OVER NICKEL (RoHS)



10μ” GOLD OVER NICKEL (RoHS)

2002/95/EC

SPECIFY CONTACT FINISH:

100μ” TIN/LEAD OVER NICKEL



100μ” TIN OVER NICKEL (RoHS)



30μ” GOLD OVER NICKEL (RoHS)

RoHS

SELECT CONTACT

#30, #35 or #43

CONTACT (DATA ON PAGES 219 & 220)

w w w. m i l l - m a x . c o m

141



516-922-6000
