1450131-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1450131-7

1450131-7: DescriptionCONNECTOR, 30 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size253KB，15 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

1450131-7 Overview

CONNECTOR, 30 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

1450131-7 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	unknown
Is Samacsys	N
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	1450131
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	30
Base Number Matches	1

Preview

Download Datasheet

View All

Application Specification

MULTI- BEAM XL* Connectors

NOTE

114-- 13038

13 JUL 09 Rev H

All numerical values are in metric units [with U.S. customary units in brackets]. Dimensions are in millimeters [and

inches]. Unless otherwise specified, dimensions have a tolerance of +0.13 [+.005] and angles have a tolerance of +2_.

Figures and illustrations are for identification only and are not drawn to scale.

1. INTRODUCTION

This specification covers the requirements for application of MULTI--BEAM XL connectors onto printed circuit

(pc) boards for use in power supplies. These connectors consist of vertical receptacle assemblies, right--angle

receptacle assemblies, vertical header assemblies, and right--angle header assemblies. The connectors are

available with either precision formed press--fit (compliant pin) contacts or solder type contacts. Each

connector consists of a housing with power modules containing one power contact and signal modules

containing 4 rows of signal contacts, either pin or socket. The signal pin contacts (only in header assemblies)

are available in two contact mating lengths: standard and mate--last break--first (MLBF) (post mate), and the

power contacts (only in receptacles) are available in two contact mating lengths: standard and mate--first

break--last (MFBL) (pre--mate) for sequencing applications.

NOTE

The amount of power and signal contacts in a connector is customer specified. Any connector configuration can be

designed to meet customer requirements—provided it is within the limitations stated in this document.

When corresponding with personnel, use the terminology provided in this specification to facilitate your

inquiries for information. Basic terms and features of this product are provided in Figure 1.

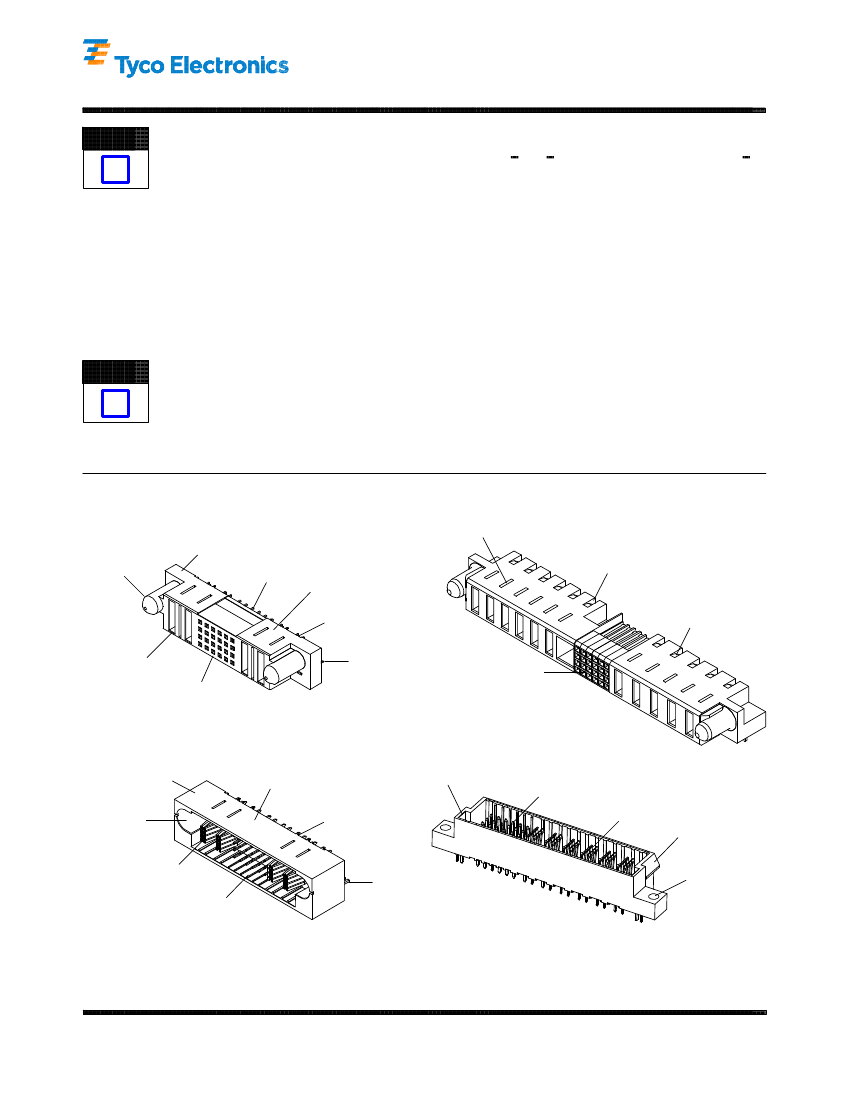

Vertical Receptacle Assembly

(2P+24S+2P)G

Guide Post

(2 Places)

End

Module

Right- Angle Receptacle Assembly

(5P+24S+1M+6P)G

Convection Window

(1 Per Power Module)

Housing

Standoff

(1 Per Contact)

Power

Module

Hold-- Down Clip

(2 Places, Typ)

Signal (Socket)

Contact

With Latch Receivers

(24S+6P)G

Signal (Pin)

Contact

Power

Contact

Press-- Fit

Contact

Cored Lance (1 Per

Power Module)

Solder

Contact

Signal

Module

With Guide Holes

(2P+24S+2P)G

Housing

Vertical Header Assembly

Key Slot

(2 Places)

Standoff

(1 Per Contact)

End

Module

Guide Hole

(2 Places)

Latch Receiver

(2 Places)

Mounting Hole

(2 Places)

Power

Contact

Signal (Pin)

Contact

Hold-- Down Clip

(2 Places, Typ)

‘P’ stands for power module, ‘S’ stands for signal contacts, ‘ACP’ stands for power module with contact centerline spacing of 7.62 [.300],

‘HDP’ stands for high density power module with contact centerline spacing of 5.08 [.200], and ‘M’ stands for center module.

Figure 1 (Cont’d)

TOOLING ASSISTANCE CENTER 1-- 800-- 722-- 1111

E2009

Tyco Electronics Corporation, Harrisburg, PA

PRODUCT INFORMATION 1-- 800-- 522-- 6752

All International Rights Reserved

TE logo and Tyco Electronics are trademarks.

*Trademark. Other products, logos, and company names used are the property of their respective owners.

This controlled document is subject to change.

For latest revision and Regional Customer Service,

visit our website at

www.tycoelectronics.com

of 15

LOC B

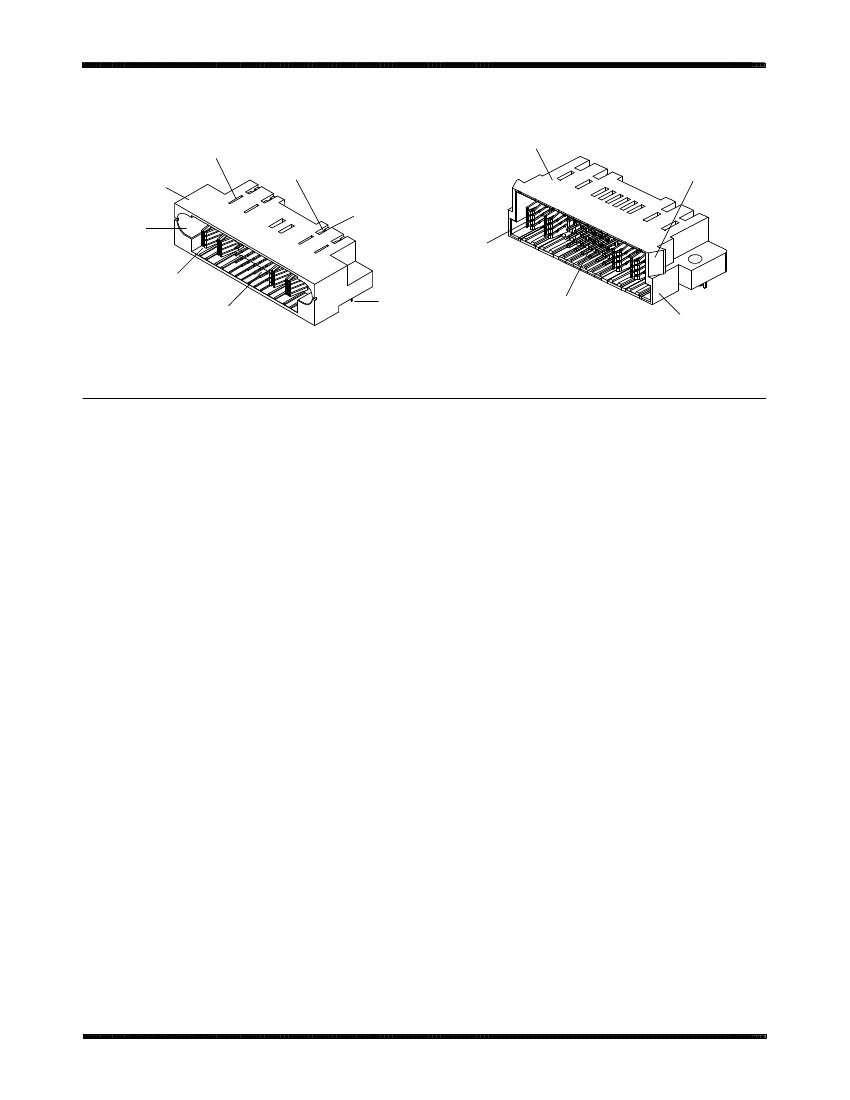

MULTI- BEAM XL Connectors

Right- Angle Header Assembly

114- 13038

End

Module

Guide Hole

(2 Places)

With Guide Holes

(2P+24S+2P)G

Cored Lance (1 Per

Power Module)

Solder

Contact

With Latch Receivers

(2P+24S+2P)G

Housing

Latch Receiver

(2 Places)

Convection Window

(1 Per Power Module)

Power

Contact

Power

Contact

Signal (Pin)

Contact

Hold-- Down Clip

(2 Places, Typ)

Signal (Pin)

Contact

Key Slot

(2 Places)

‘P’ stands for power module, ‘S’ stands for signal contacts, ‘ACP’ stands for power module with contact centerline spacing of 7.62 [.300],

‘HDP’ stands for high density power module with contact centerline spacing of 5.08 [.200], and ‘M’ stands for center module.

Figure 1 (End)

The maximum overall length allowed for the connector is 203 [8]. Combinations of up to 36 power contacts and

148 signal contacts can be used—provided the maximum allowable length is not exceeded.

Power modules are available with contact centerline spacing of 5.08 [.200], 6.35 [.250], 7.62 [.300], 9.53 [.375],

and 10.8 [.425], and signal modules have a contact centerline spacing of 2.54 [.100]. End modules and center

modules are available with features that provide blind mating, misalignment, and polarization.

End modules contain a guide post, guide hole, or latch receiver with key slot and a hold--down clip, and/or

mounting hole, and center modules contain a hold--down clip or mounting hole. End modules without guides

are also available. Guides (posts on receptacles and holes in headers) have rounded edges for ease of mating

and are offset to prevent improper mating of connectors. The latch receiver with key slot ensures proper

orientation of connectors when mating and that the connectors do not accidentally back--out. The hold--down

clips help to align the connector to the pc board for installation then secure the connector for soldering. The

mounting holes (which accept commercially--available standard screws) are also used to secure the connector

to the pc board. The mounting holes are available with 3.10 [.122] or 3.81 [.150] diameter.

The connectors feature standoffs (one located at each contact) to facilitate pc board cleaning after soldering.

Convection windows and cored lances located on the housing provide air flow for power modules.

The connectors are supplied in tray form for manual placement. These connectors mate with MULTI--BEAM XL

cable receptacle assemblies (covered in Application Specification 114--13112) and MULTI--BEAM XL cable

plug assemblies (covered in 114--13164).

2. REFERENCE MATERIAL

2.1. Revision Summary

Revisions to this application specification include:

Updated document to corporate requirements

Replaced part number in Paragraph 2.2

Added contact centerline spacing for power modules

Removed centerline spacing indicator from ‘P’ in Figure 1

Removed voltage rating for primary to secondary circuits of 7.62 and 9.53 centerline spacing for power

contacts from Figure 2

2.2. Customer Assistance

Reference Product Part Number 6450120 and Product Code E655 are representative of MULTI--BEAM XL

connectors. Use of these numbers will identify the product line and expedite your inquiries through a service

of 15

Tyco Electronics Corporation

Rev

MULTI- BEAM XL Connectors

114- 13038

network established to help you obtain product and tooling information. Such information can be obtained

through a local Representative or, after purchase, by calling PRODUCT INFORMATION at the number at the

bottom of page 1.

2.3. Drawings

Customer Drawings for product part numbers are available from the service network. If there is a conflict

between the information contained in the Customer Drawings and this specification or with any other technical

documentation supplied, call PRODUCT INFORMATION at the number at the bottom of page 1.

2.4. Manuals

Manual 402--40 can be used as a guide to soldering. This manual provides information on various flux types

and characteristics with the commercial designation and flux removal procedures. A checklist is included in the

manual as a guide for information on soldering problems.

2.5. Specifications

Design Objective (status at time of publication) 108--1973 provides expected product performance and test

information.

Test Specification 109--11 provides solderability requirements and evaluation methods. Workmanship

Specification 101--21 provides solder fillet requirements.

Application Specifications (114--series) provides product description and application requirements. Application

specifications available which pertain to this product are:

114--13112

114--13164

MULTI--BEAM XL Cable Receptacle Assemblies

MULTI--BEAM XL Cable Plug Assemblies

2.6. Instructional Material

Instruction Sheets (408--series) provide assembly instructions and Customer Manuals (409--series) provide

machine setup and operation procedures. Documents available which pertain to this product are:

408--8883

Seating Tool Assembly 1725769--[ ]

2.7. Standards

These connectors comply to Electronic Industries Alliance (EIA)--364, “Electrical Connector Test Procedures

Including Environmental Classifications.”

These connectors are compatible with Military Standard (MIL--STD)--2166, “Connectors, Electrical, Compliant

Pin.”

3. REQUIREMENTS

3.1. Safety

Do not stack product shipping containers so high that the containers buckle or deform.

3.2. Limitations

The connectors are designed to operate in a temperature range of --20_ to 105_C [--4_ to 221_F].

Voltage ratings for these connectors are based upon a circuit pad diameter of 1.60+0.064 [.063+.0025] and

UL Material Group IIIb. This material group has a comparative tracking index (CTI) of 100<CTI<175.

Voltage ratings according to contact centerline spacing and circuit pad travel are given in Figure 2.

3.3. Material

The housing is made of glass filled high temperature nylon, UL 94--V--0, with an oxygen index of 49%. The

contacts are made of high--conductivity copper alloy underplated with nickel and plated with gold; solder tails

are plated with tin over nickel. Hold--down clips are made of plated copper alloy.

3.4. Storage

A. Ultraviolet Light

Prolonged exposure to ultraviolet light may deteriorate the chemical composition used in the connector

material.

Rev

Tyco Electronics Corporation

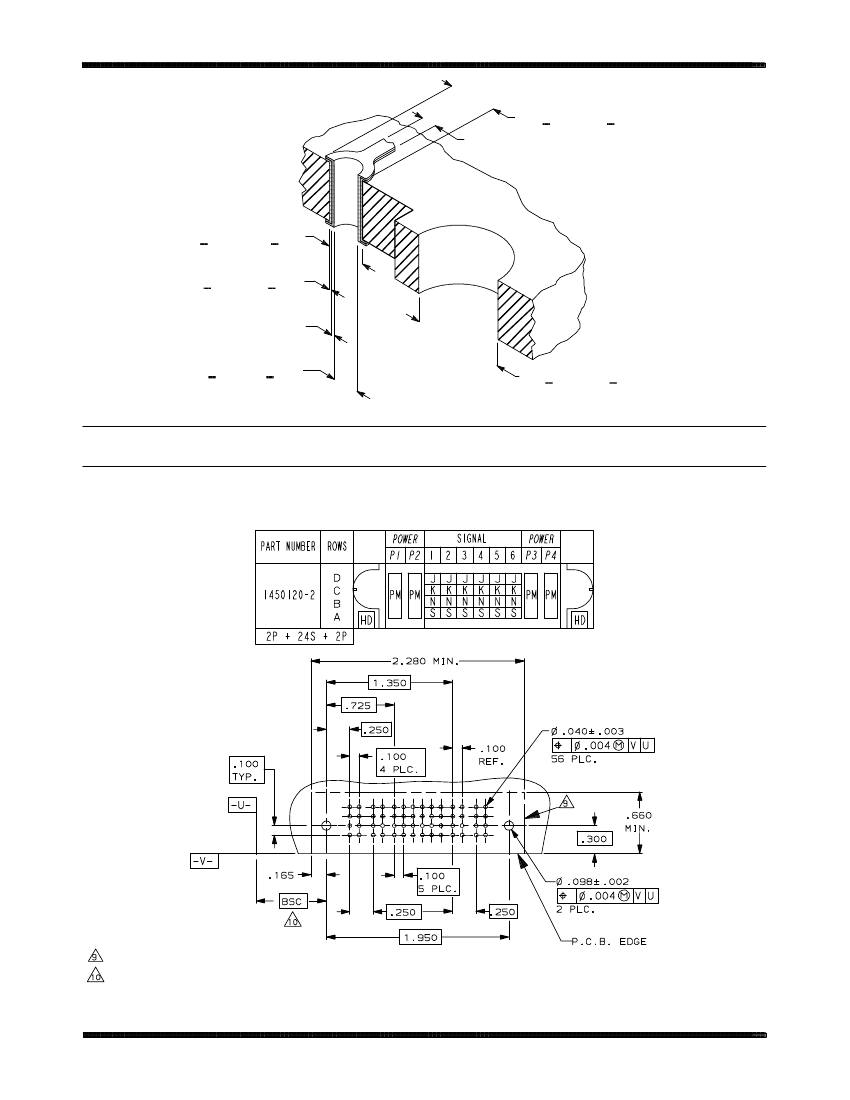

of 15
